rear carpet cover broken clip holder repair

ABS · PETG1 FILECC-BY-NC-SATrim Clips

PART RECORDREF 1243

PART: rear carpet cover broken clip holder repair
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1243QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1243

[01]clip-bracket-repair-bmw-e46-v2.stlclip-bracket-repair-bmw-e46-v2.stl.STL
[02]Bounding box25.000 × 18.957 × 10.369 mm
[03]Volume2,685.494 mm³

Field notes

BY RUS84D

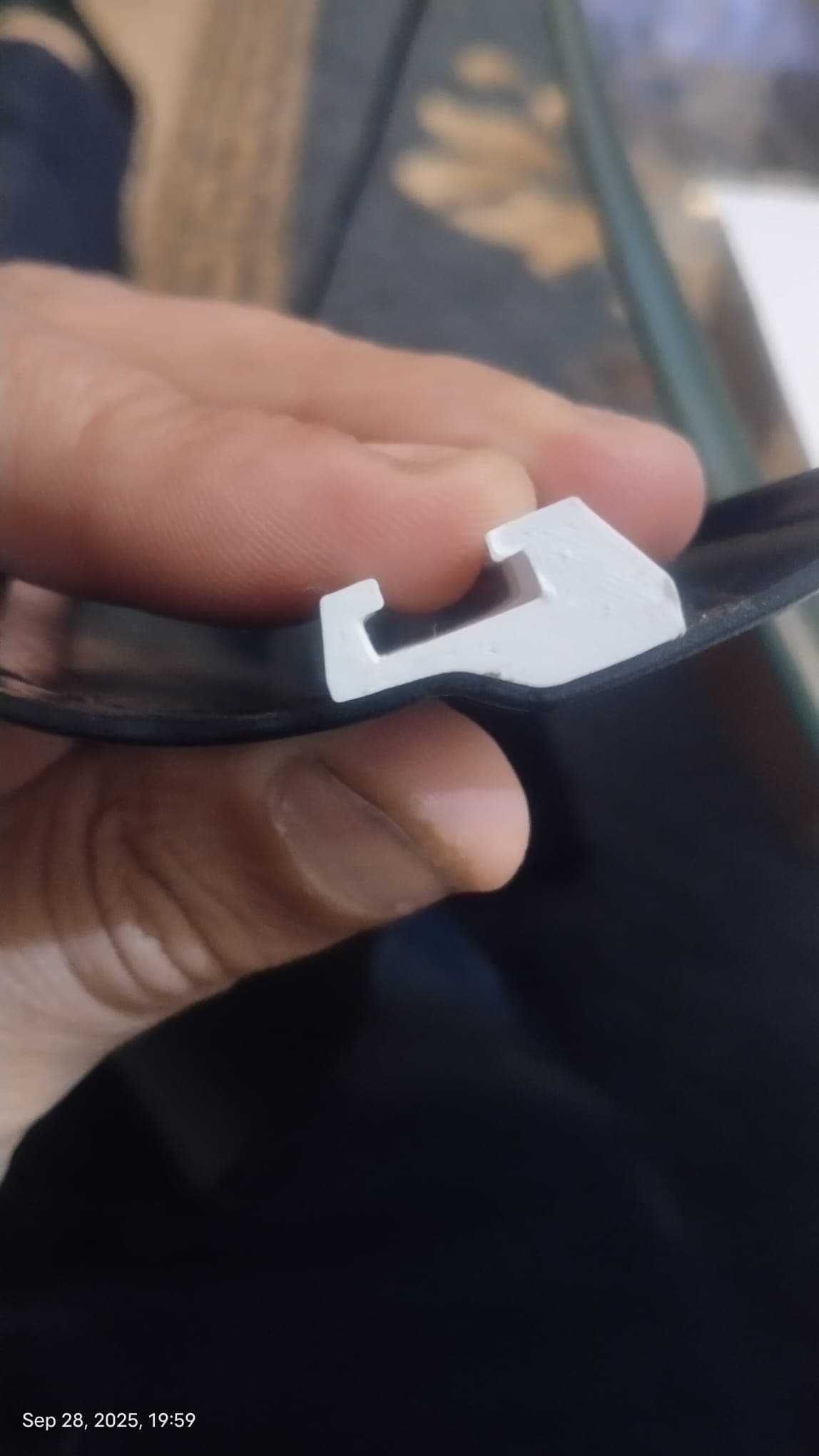

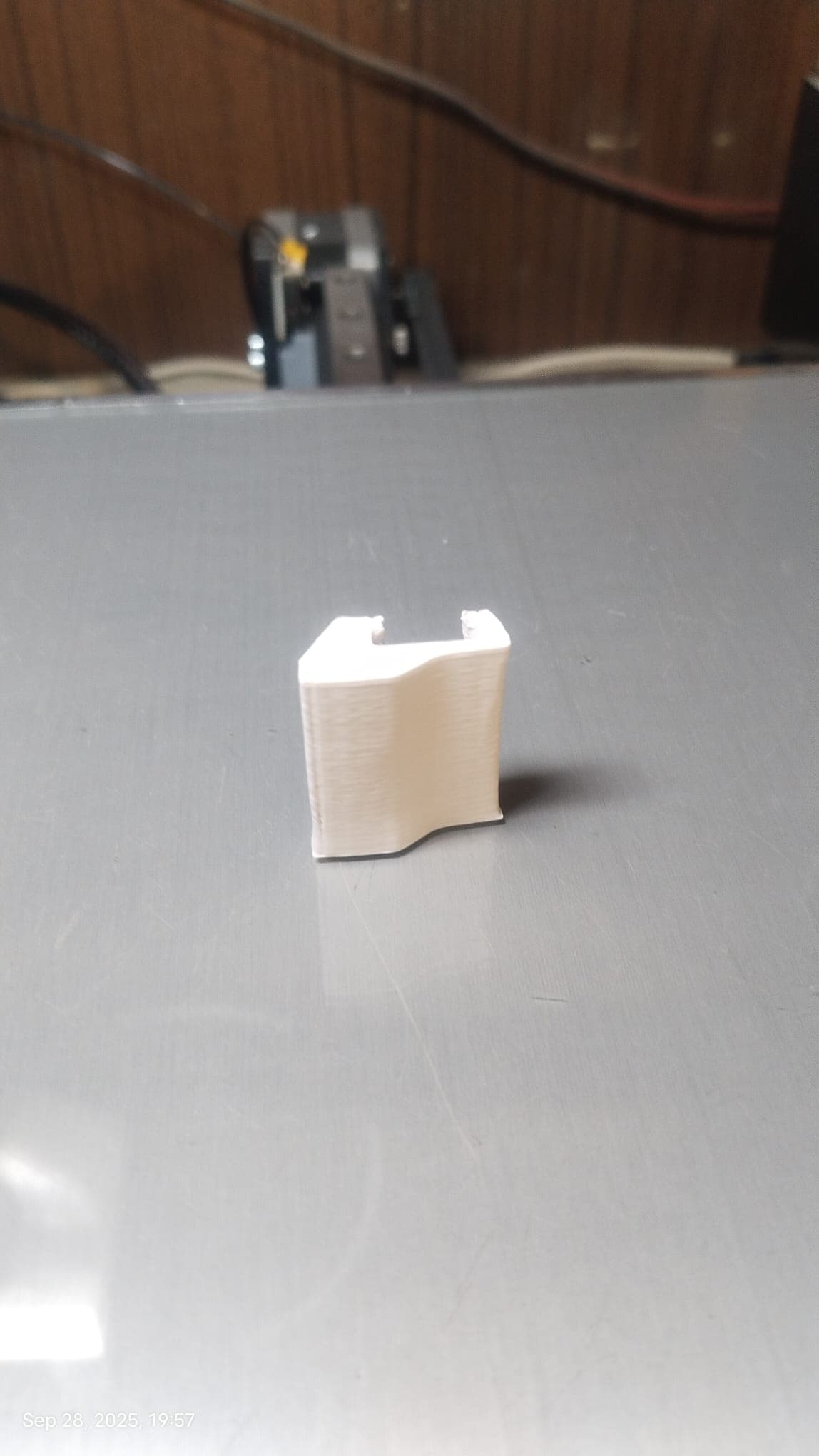

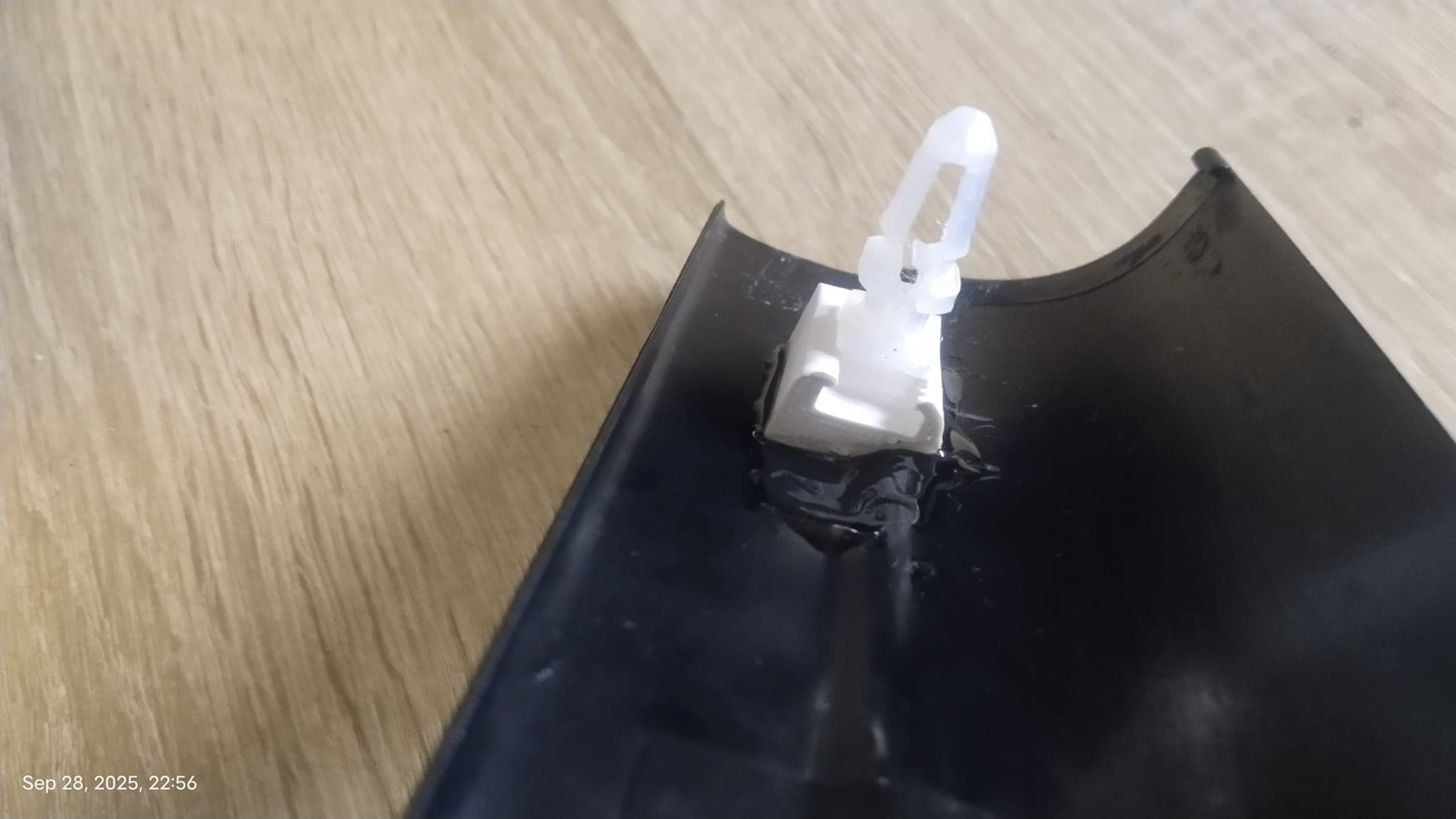

Doorstep broken clip holder part replacement. Designed to have large surface area for glue to properly hold it. I have also designed the clip, check my other designs. Print with 5+ walls vertically oriented , and glue it on the bracket with 2 component glue for best results. Use cabin-heat-resistant material, dry-fit the part and confirm secure retention and unobstructed operation.
