Protective Key Case

TPU1 FILECC-BY-NC-SAInterior
PART RECORDREF 1479
PART
Protective Key Case
OEM
FITS
i4 G26
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1479QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1479
  • [01]case.stl.STL
  • [02]Bounding box85.989 × 45.257 × 16.400 mm
  • [03]Volume11,152.354 mm³
Field notes
BY JAIR

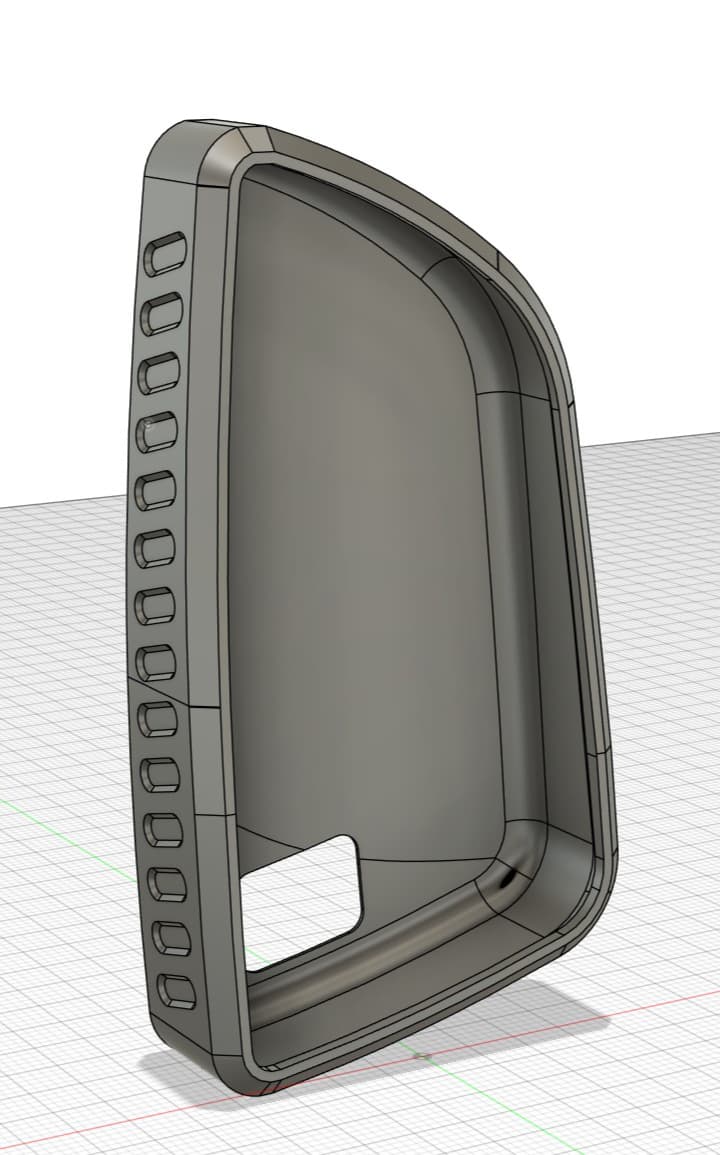

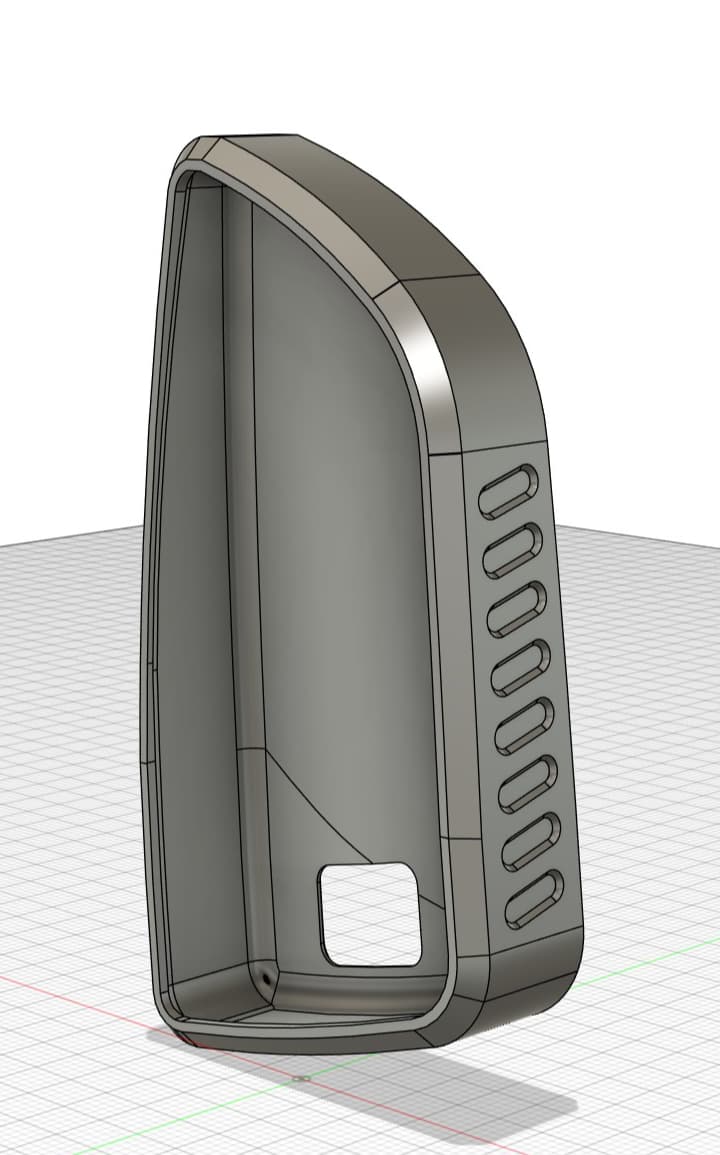

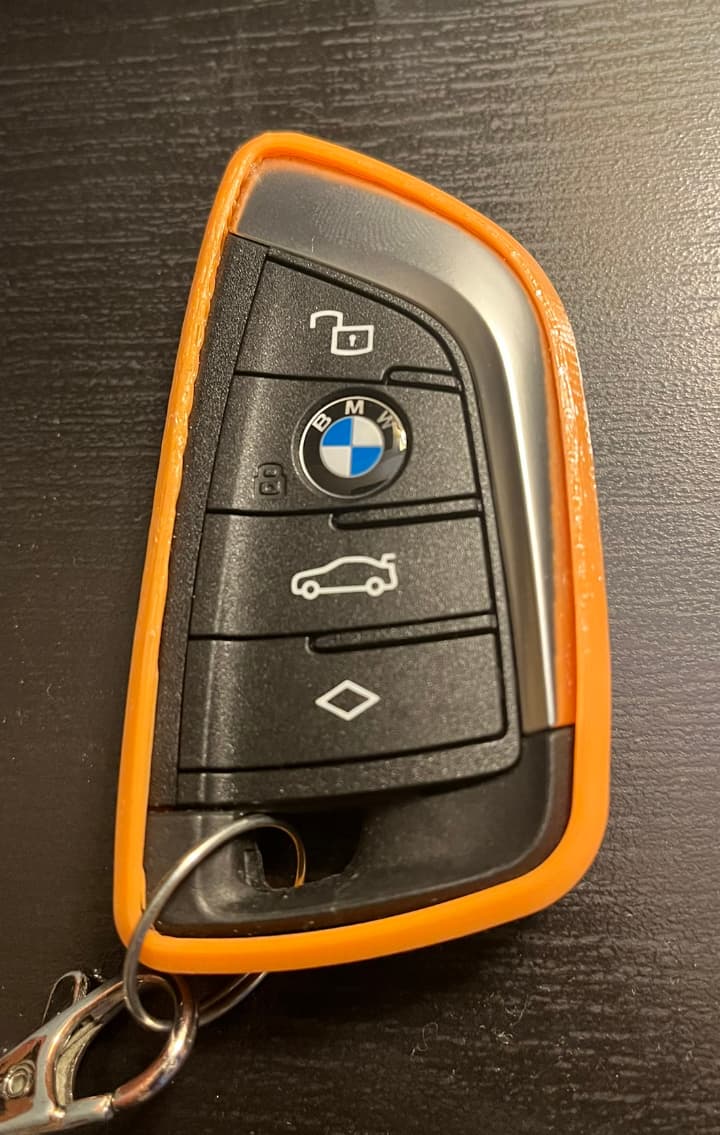

Flexible protective case for the vehicle remote key, with open access to all buttons and the key-ring eye. The creator shows the TPU case fitted to the physical key from both sides and provides useful CAD views of the openings. Print in TPU as specified, confirm every control moves freely and the emergency-key release remains accessible, and verify that the case cannot press buttons unintentionally.
