Pre-Facelift Tail-Light Bulb-Holder Tab Repair

ABS · PETGMULTI-PART4 FILESCC-BYLights

PART RECORDREF 1213

PART: Pre-Facelift Tail-Light Bulb-Holder Tab Repair
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1213QTY 4 · STLHANDLE · NO SUPPORTS

Field photographs

7 PLATES

PLATE 01 / 07No caption recorded

Build sheet

MAN-1213

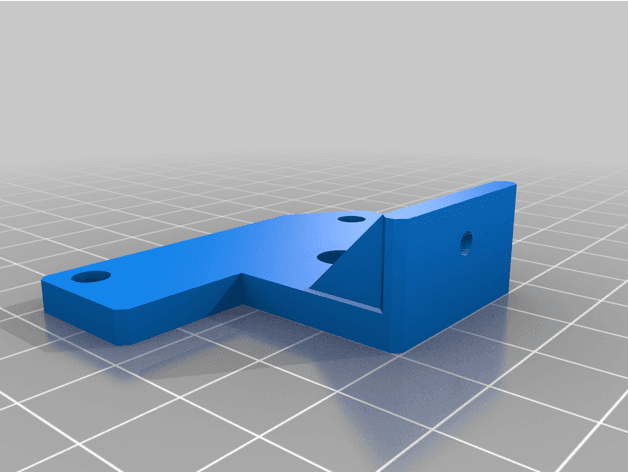

[01]External_Plate_Left.stlExternal_Plate_Left.stl.STL

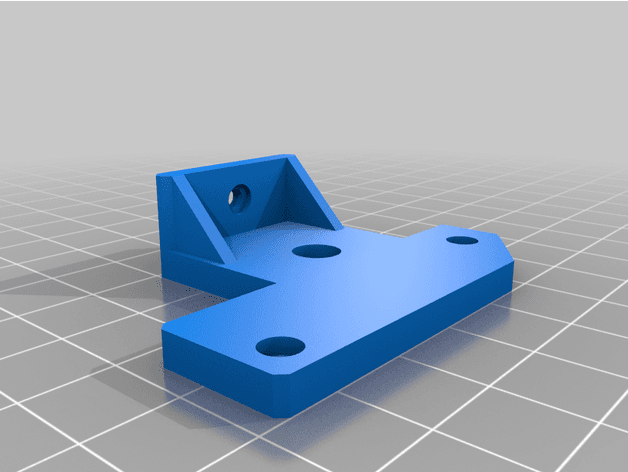

[02]External_Plate_Right.stlExternal_Plate_Right.stl.STL

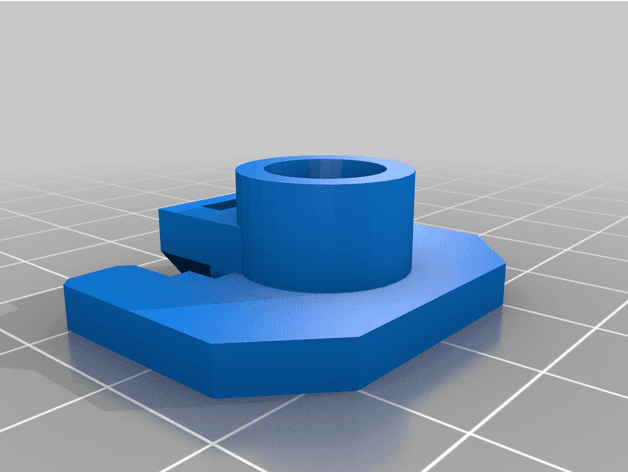

[03]Main_Piece.stlMain_Piece.stl.STL

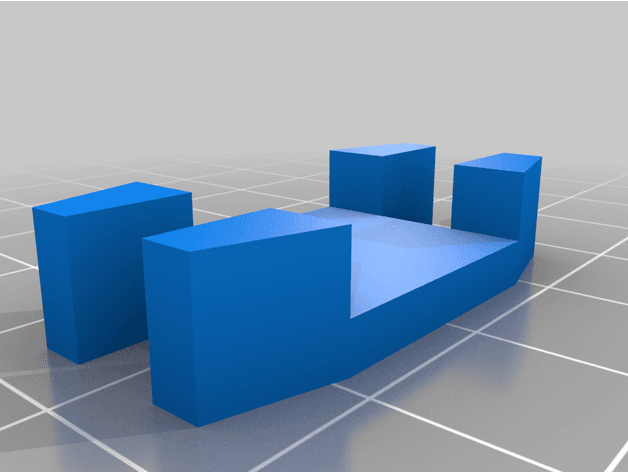

[04]Main_Piece_Holder.stlMain_Piece_Holder.stl.STL
[05]Bounding box119.058 × 53.875 × 14.000 mm
[06]Volume17,477.267 mm³

Field notes

BY MARCELLO CHIRRI (MRLEZZIDENT)

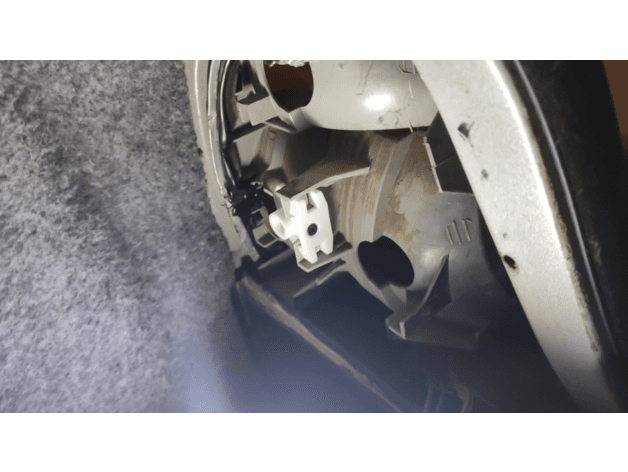

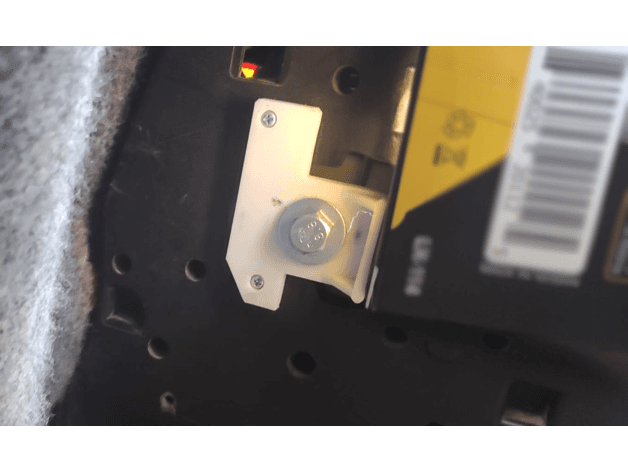

Four-piece repair for the broken mounting tab on the pre-facelift E46 tail-light bulb holder. The creator physically tested it on a 1999 E46 320i with amber turn signals and documents the M6/M3 hardware and left/right external plates. Confirm body and lamp variant, secure every fastener, and verify weather sealing and legal lamp operation.
