PART №1201
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026

Power window carriage

ABS · PETG1 FILECC-BY-NC-SADoors
PART RECORDREF 1201
PART
Power window carriage
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

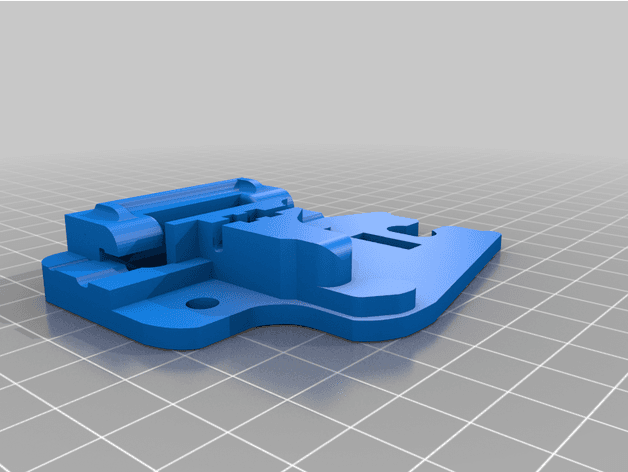

Loading 3D viewer...

PART ID · BIMMER-3D / 1201QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES

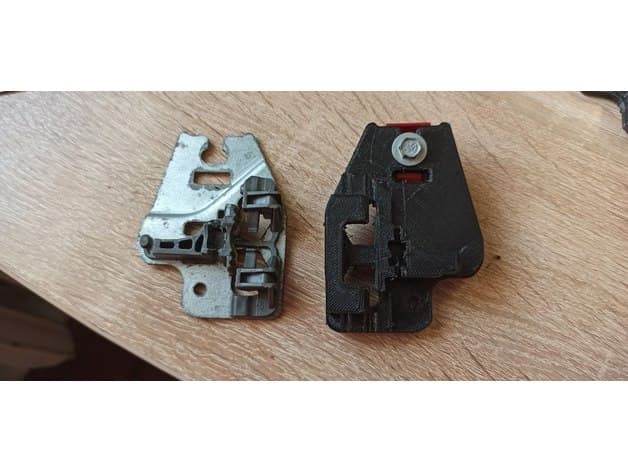

Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1201
  • [01]Power_window_carriage_right_door_farthest_from_motor_v7_m.stl.STL
  • [02]Bounding box82.566 × 60.851 × 15.500 mm
  • [03]Volume21,853.073 mm³
Field notes
BY BIZON BESS (BIZON_BESS)

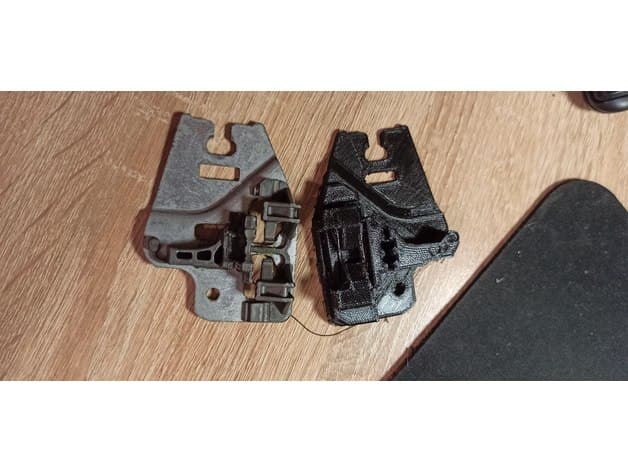

Greetings. At the moment, the model has already been strengthened and differs from the photo! There was a lot of window play in my E46. the glass rose heavily and crookedly. after disassembling the power window, it became clear that there was strong wear and tear and a large backlash. The brace does not come as a separate spare part, and you cannot buy an official one separately. My model is not perfect, it is robust, reinforced. Copes with its function. Window regulator carriage, right door, farthest from the motor v7. home plate (m) the following model, using the native metal plate in the link Dry-fit before fastening and verify glass, latch, wiring and trim clearance through full operation.

Service log
0 entries · open log
