Pioneer GM-D1004 Amplifier Bracket

ABS · PETGMULTI-PART2 FILESCC-BY-NC-SAElectrical

PART RECORDREF 1227

PART: Pioneer GM-D1004 Amplifier Bracket
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1227QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1227

[01]amp_holder-A.stlamp_holder-A.stl.STL
[02]amp_holder-B.stlamp_holder-B.stl.STL
[03]Bounding box195.000 × 45.000 × 15.000 mm
[04]Volume42,798.977 mm³

Field notes

BY QUICKLAZYORANGE

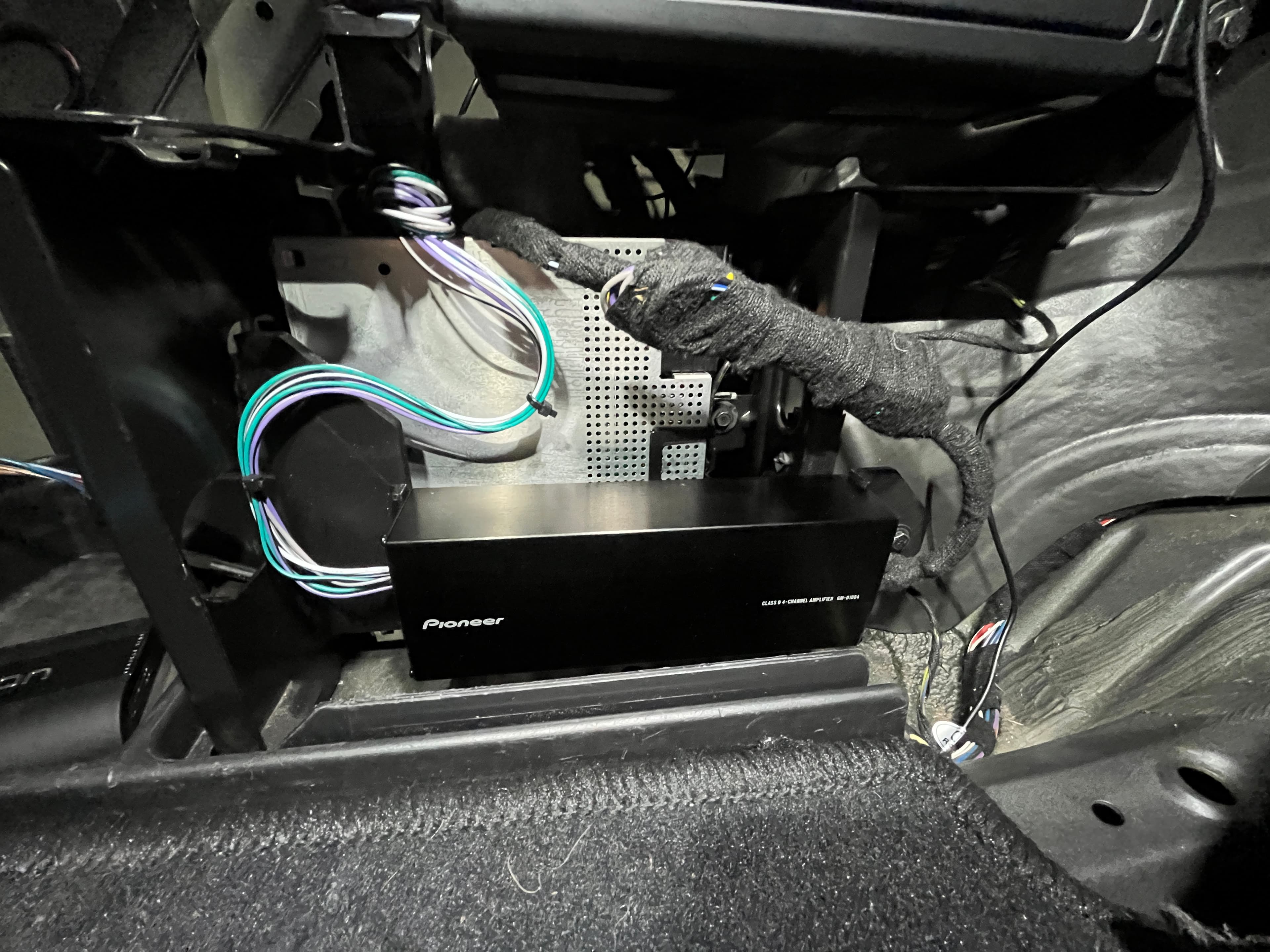

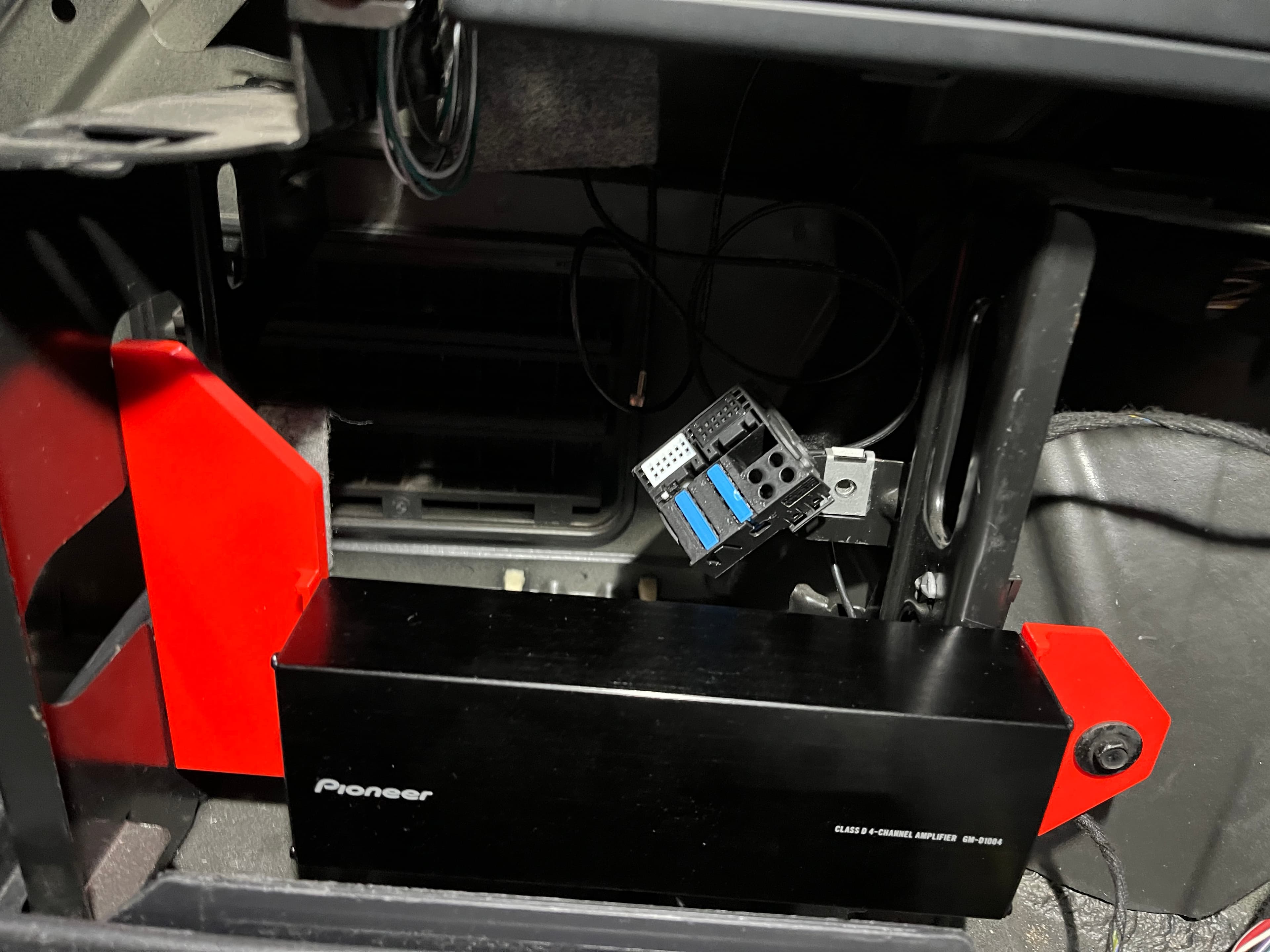

This bracket allows to mount the Pioneer GM-D1004 amp in place of the factory amp in the trunk. I used PETG and it works fine. Put some automotive Tesa tape on the metal ears before sliding the bracket to dampen vibrations. If You are missing a mounting screw or nut here are the codes: 07119902932, 61131372033. Fuse and insulate any added wiring correctly, secure it from chafe and confirm the circuit remains serviceable.
