Oil-Sump Drain-Plug Access Cover

ABS · PETG1 FILEPublic DomainMechanical

PART RECORDREF 1244

PART: Oil-Sump Drain-Plug Access Cover
OEM: —
FITS: 3 Series E46, Z4 E85 / E86

Loading 3D viewer...

PART ID · BIMMER-3D / 1244QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

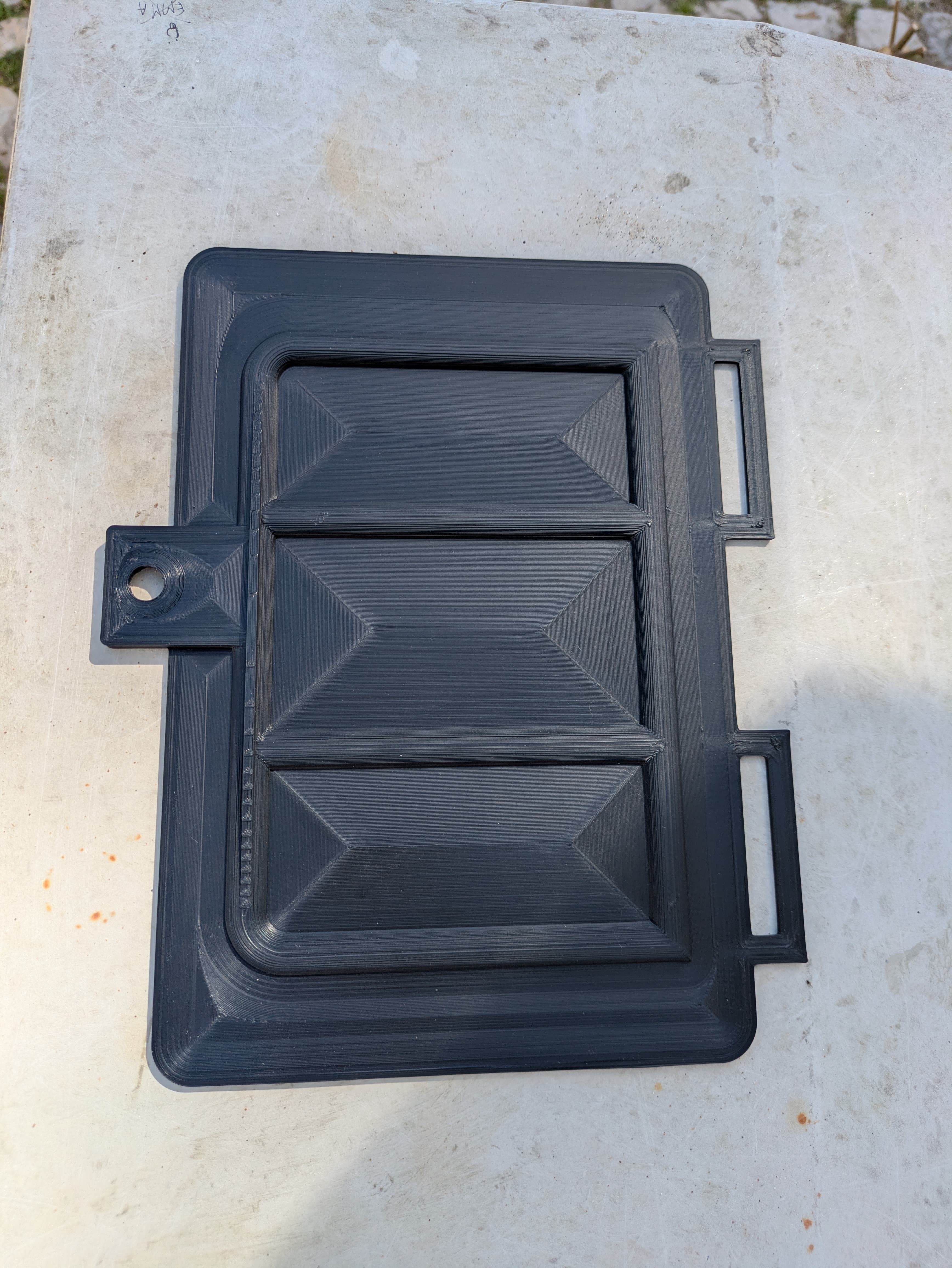

PLATE 01 / 02No caption recorded

Build sheet

MAN-1244

[01]bmw-oil-cover-v3.stlbmw-oil-cover-v3.stl.STL
[02]Bounding box215.000 × 177.000 × 7.969 mm
[03]Volume77,058.519 mm³

Field notes

BY DMITRY SERGEEV

Replacement oil-sump drain-plug access cover for E46 and Z4 E85/E86 undertrays. The creator corrected the screw-hole location and removed reinforcement that caused the physical print to warp. Use an underbody-rated material and verify screw retention, exhaust clearance and complete undertray seating.
