N42 86 mm Oil-Filter Housing Wrench

ABS · PETGMULTI-PART2 FILESCC-BY-NC-SAMechanical

PART RECORDREF 1222

PART: N42 86 mm Oil-Filter Housing Wrench
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1222QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1222

[01]cl_ filtre a huile 86mm 16 pans.3MFcl_ filtre a huile 86mm 16 pans.3MF.STL
[02]cl_ filtre a huile 86mm 16 pans.STLcl_ filtre a huile 86mm 16 pans.STL.STL
[03]Bounding box100.000 × 96.500 × 96.483 mm
[04]Volume325,738.141 mm³

Field notes

BY SHK

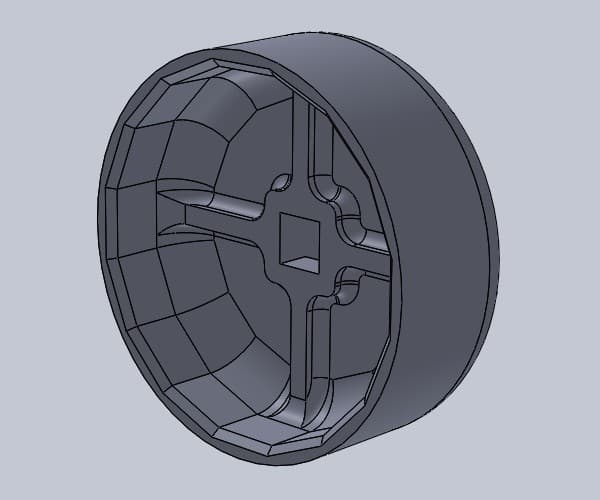

Sixteen-flat 86 mm service wrench for the oil-filter housing on E46 models with the N42B18A engine, designed for a 12.5 mm square drive. The creator shows the physical tool on a ratchet. Use a strong heat-resistant material, keep the wrench fully seated and follow the BMW service torque for the housing cap.

View original source ↗
