Mirror-Glass Carrier Plate

ABS · PETG1 FILECC-BY-SADoors

PART RECORDREF 1537

PART: Mirror-Glass Carrier Plate
OEM: —
FITS: Z4 E85 / E86

Loading 3D viewer...

PART ID · BIMMER-3D / 1537QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-1537

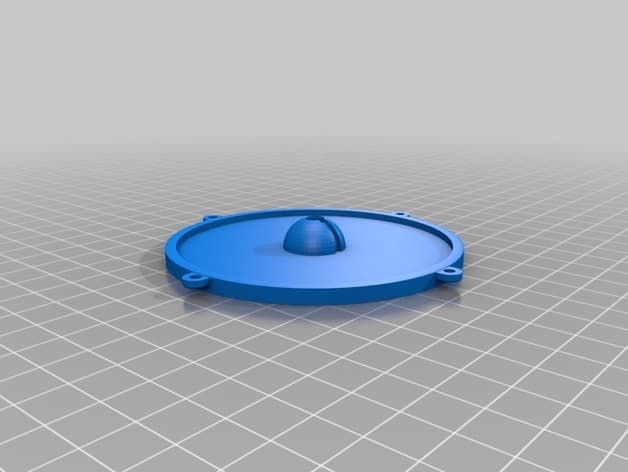

[01]Z4_Wingmirror_glass_baseplate.stlZ4_Wingmirror_glass_baseplate.stl.STL
[02]Bounding box94.000 × 94.000 × 10.534 mm
[03]Volume13,914.299 mm³

Field notes

BY JW DE ROOS (JWDR)

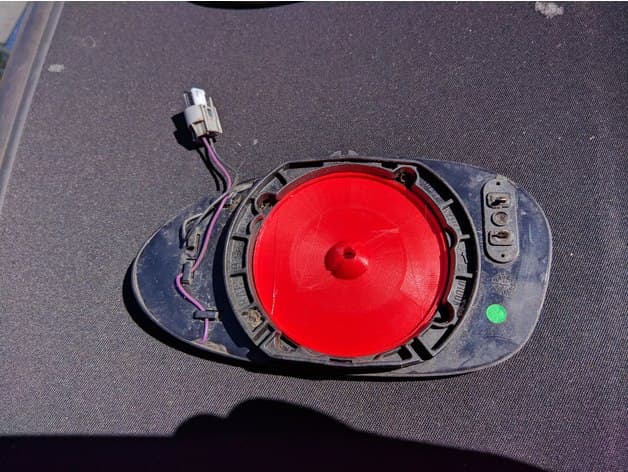

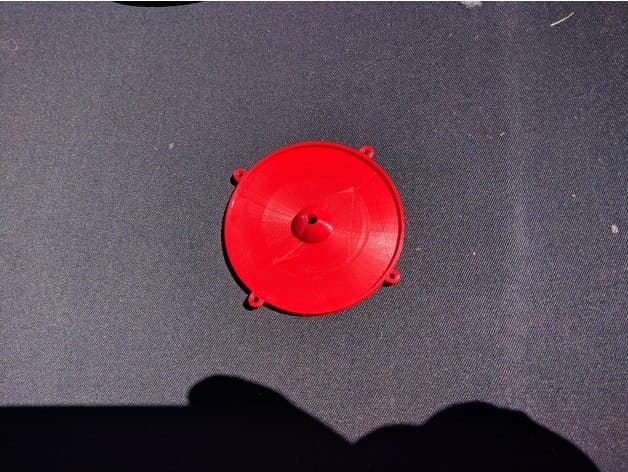

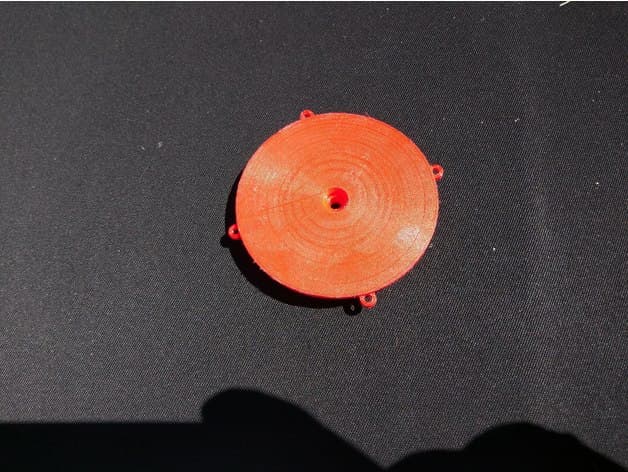

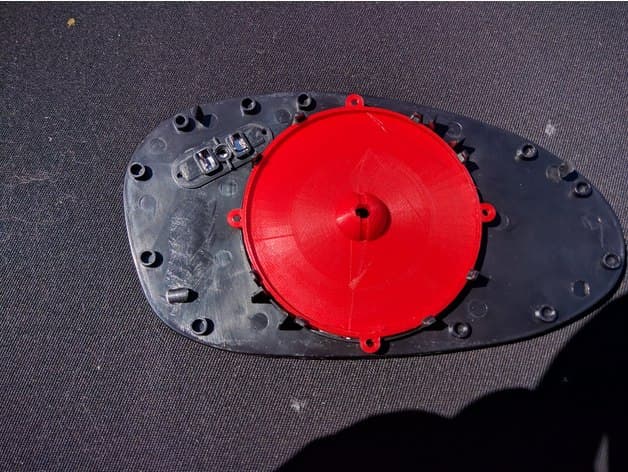

Replacement carrier plate for the exterior mirror glass, physically shown loose and installed on the mirror mechanism. The creator states that it accepts both twist-on and clip-on brackets. This is a mirror-glass support, not the complete mirror assembly; verify secure engagement, adjustment range, heating-wire clearance and an unobstructed field of view before driving.

View original source ↗
