M54B22 Intake Smoke-Test Adapter

ABS · PETGMULTI-PART2 FILESCC-BY-NC-SAMechanical

PART RECORDREF 1245

PART: M54B22 Intake Smoke-Test Adapter
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1245QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1245

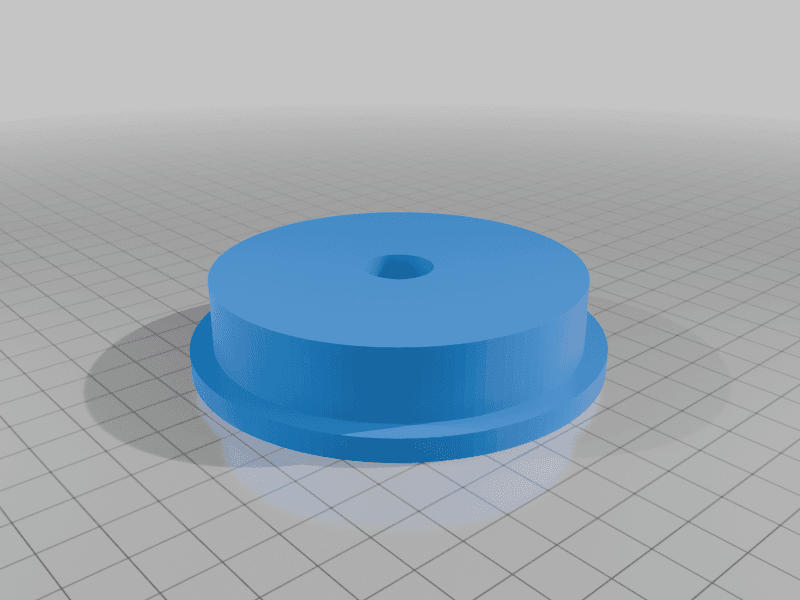

[01]e46_vacum_leak__smoke_test_adapter_mot_valve_longer.stle46_vacum_leak__smoke_test_adapter_mot_valve_longer.stl.STL

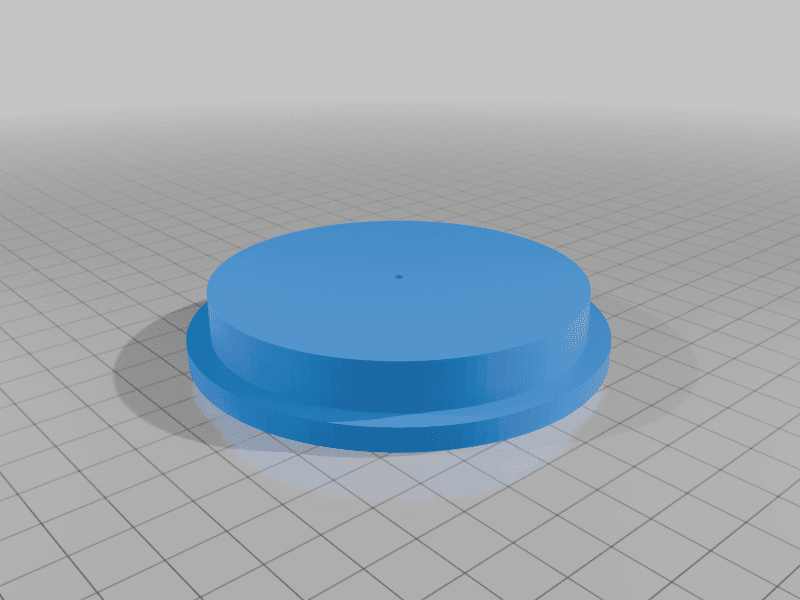

[02]e46_vacum_leak__smoke_test_adapter_pilot_hole.stle46_vacum_leak__smoke_test_adapter_pilot_hole.stl.STL
[03]Bounding box90.000 × 89.972 × 35.000 mm
[04]Volume185,767.529 mm³

Field notes

BY OSIN

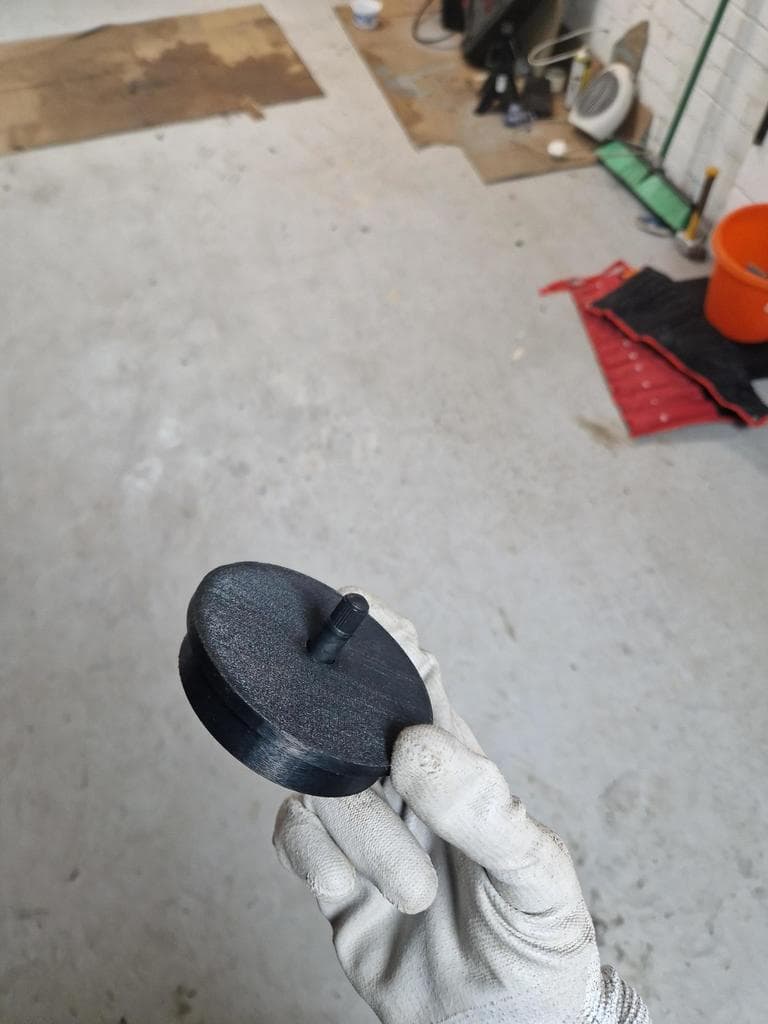

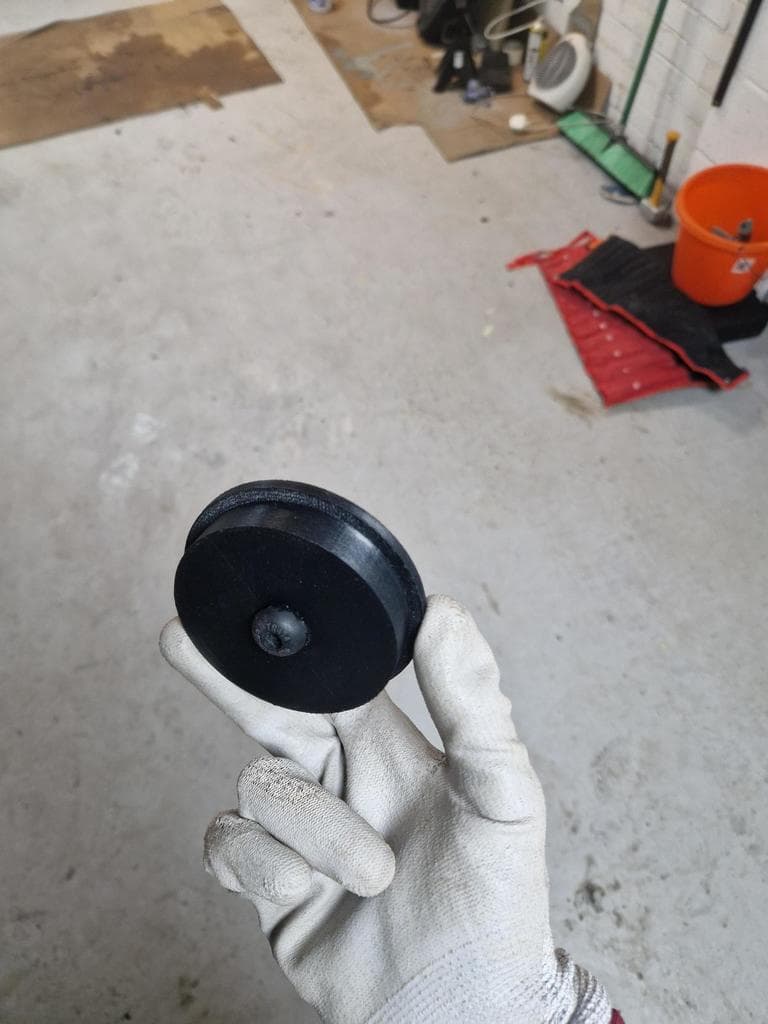

80 mm intake adapter for vacuum or smoke leak testing on the E46 M54B22, designed around a standard automotive valve and physically demonstrated on the engine. Use only at low diagnostic pressure, keep foreign material out of the intake and remove the adapter before starting or driving the vehicle.
