Kidney Grill Clip Replacement

ABS · PETGMULTI-PART6 FILESCC-BY-SAExterior

PART RECORDREF 1178

PART: Kidney Grill Clip Replacement
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1178QTY 6 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-1178

[01]kidney_grill_clip.stlkidney_grill_clip.stl.STL
[02]kidney_grill_clip.stpkidney_grill_clip.stp.STL
[03]kidney_grill_clip2.5mm.stlkidney_grill_clip2.5mm.stl.STL
[04]kidney_grill_clip2.5mm.stpkidney_grill_clip2.5mm.stp.STL
[05]kidney_grill_clip2mm.stlkidney_grill_clip2mm.stl.STL
[06]kidney_grill_clip2mm.stpkidney_grill_clip2mm.stp.STL

Field notes

BY MURAT TAHTALI (MURAT)

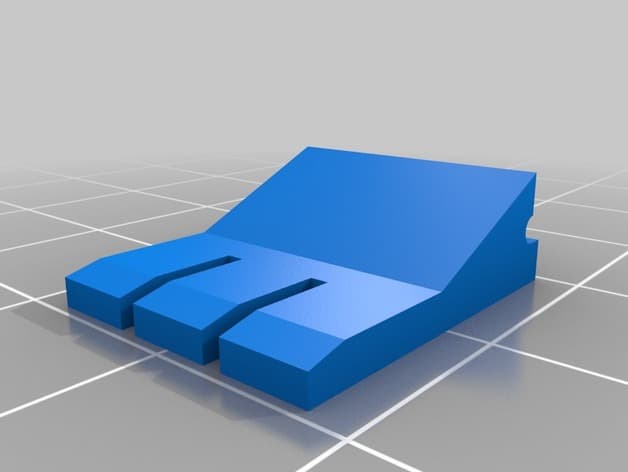

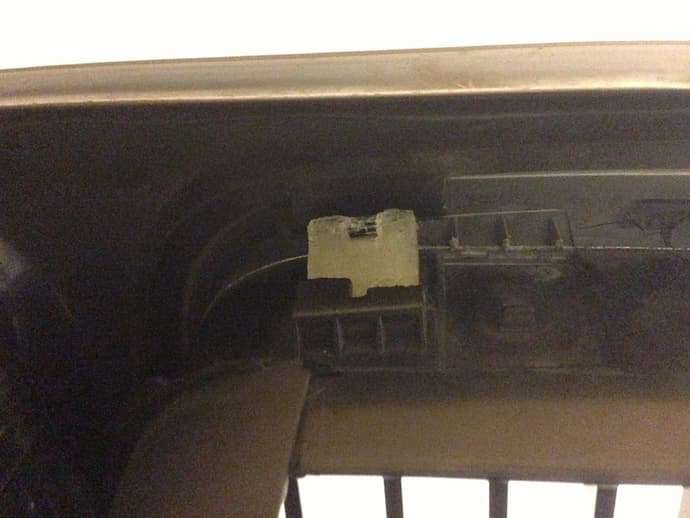

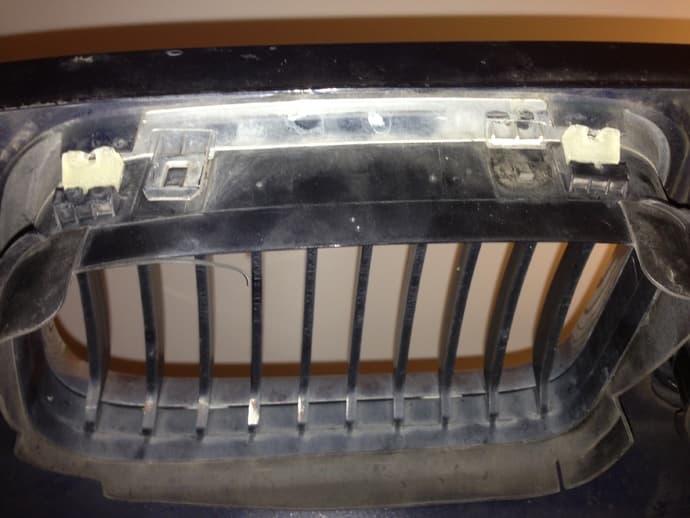

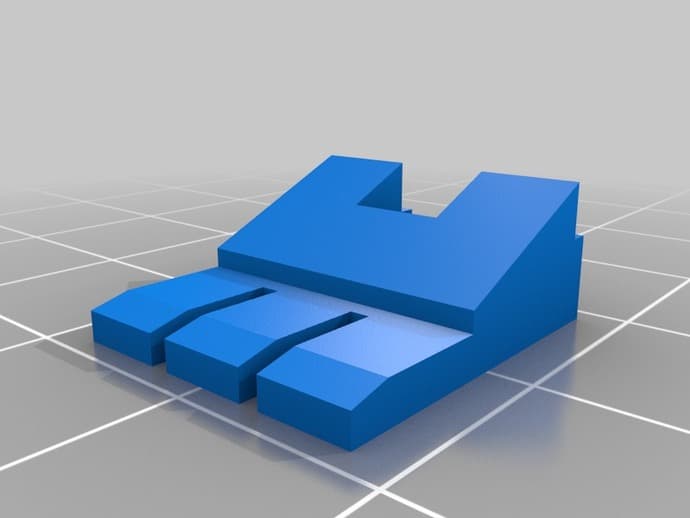

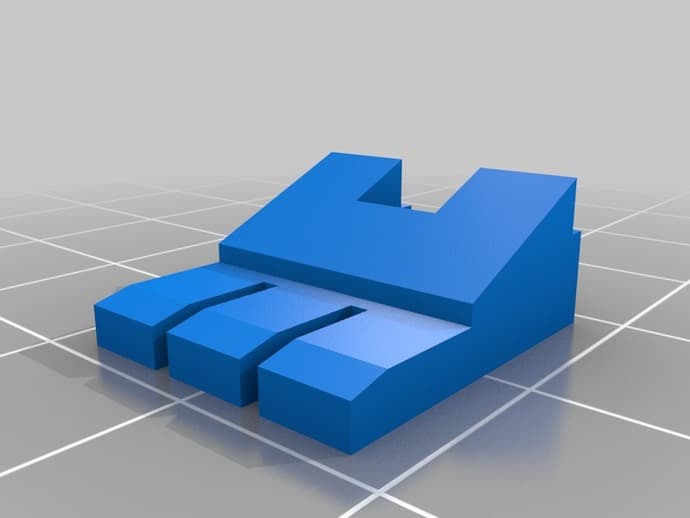

Mounting clip replacement for the BMW E46 kidney grill. The kidney grills are held in place in the bonnet through flexible lips, which become brittle with time and heat exposure. My car is 14 years old and the kidney grills had lost their grips a while ago and were about to fall over. The quick fix was to string them up from the inside, but hardly an elegant fix for a BMW! Use cabin-heat-resistant material, dry-fit the part and confirm secure retention and unobstructed operation.
