HiFi Amplifier Mount

ABS · Nylon · PETGMULTI-PART2 FILESCC-BY-NCElectrical

PART RECORDREF 1501

PART: HiFi Amplifier Mount
OEM: —
FITS: X3 G01 / F97

Loading 3D viewer...

PART ID · BIMMER-3D / 1501QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1501

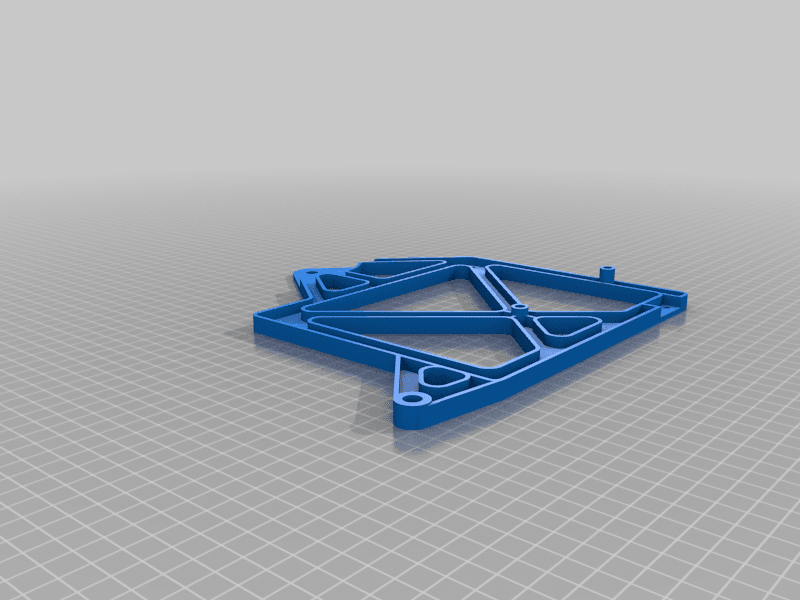

[01]Musway_M6V3_G01_LCI_HiFi_Mount_-_Base.stlMusway_M6V3_G01_LCI_HiFi_Mount_-_Base.stl.STL

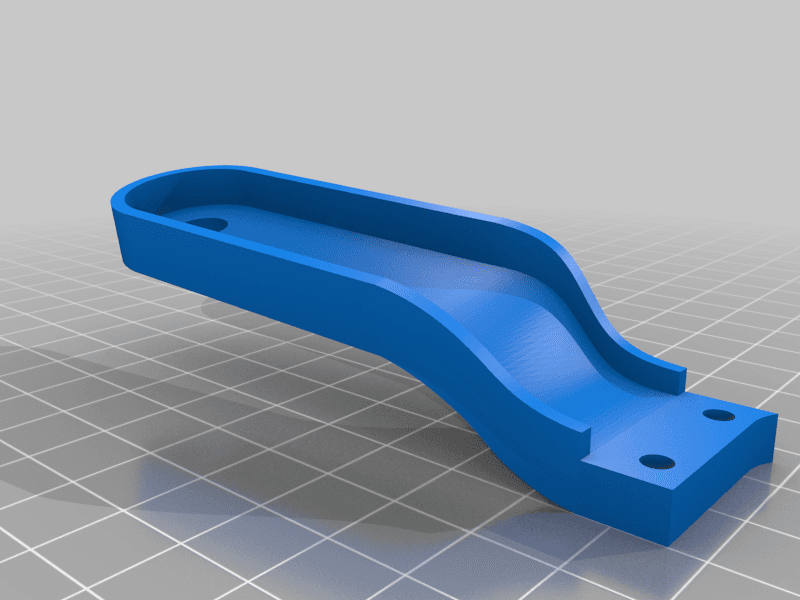

[02]Musway_M6V3_G01_LCI_HiFi_Mount_-_Top_Mount.stlMusway_M6V3_G01_LCI_HiFi_Mount_-_Top_Mount.stl.STL
[03]Bounding box264.026 × 239.748 × 28.725 mm
[04]Volume87,024.686 mm³

Field notes

BY DENNIS ANTONOV (NETAGER)

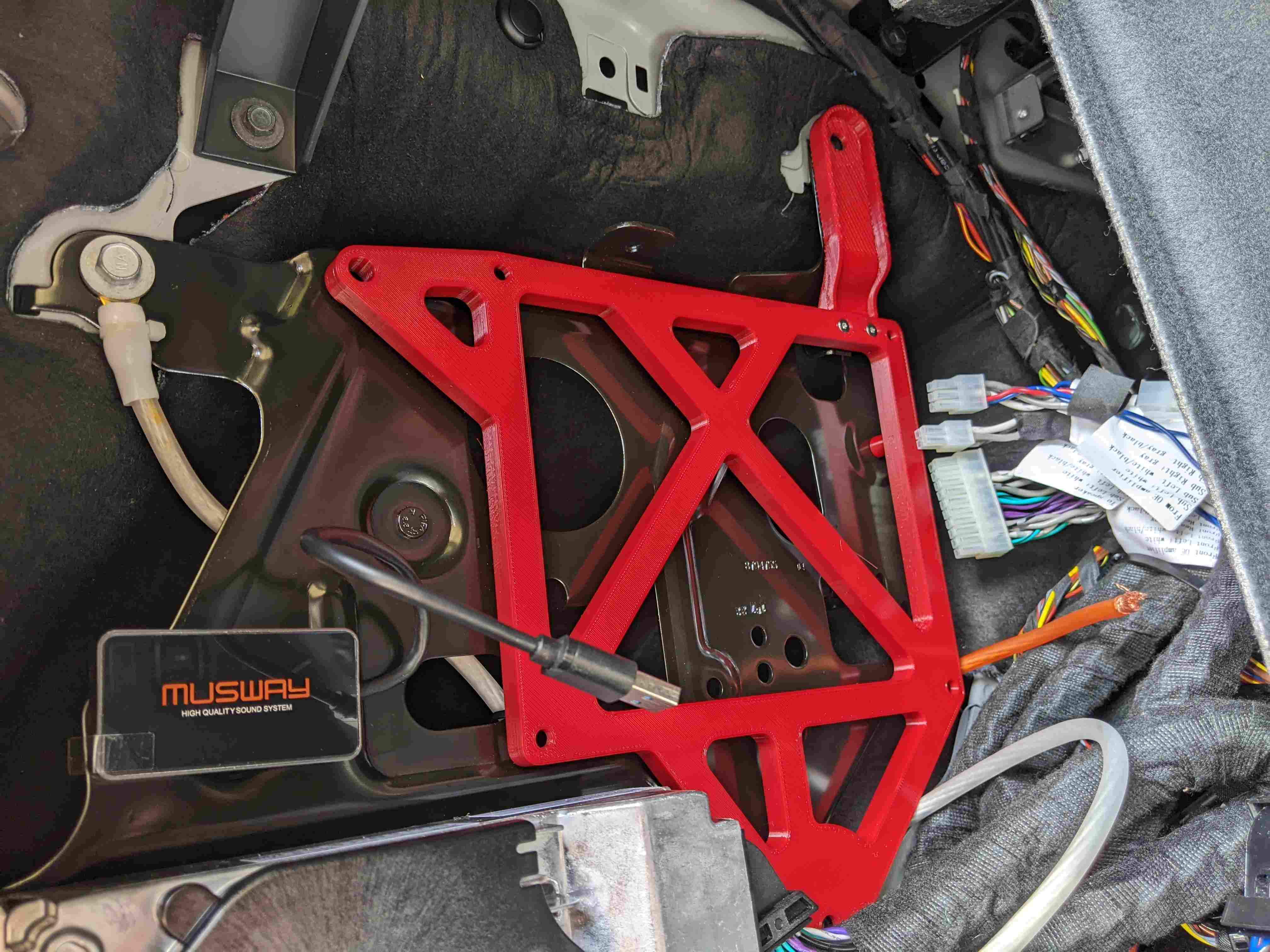

Two-piece mount for a Musway M6 V3 DSP/amplifier, physically shown installed in the left rear cargo-area electronics space. The creator developed it on an X3 G01 LCI with the HiFi sound system and states that it is not compatible with the Harman Kardon system; assembly uses two M3x10 countersunk fasteners, one M6x20 fastener and two factory bolts. This is an aftermarket equipment mount, not a reproduction of a BMW service part, so no parent electronics or trim number is assigned. Confirm G01 LCI body, HiFi rather than Harman Kardon equipment, cable clearance, ventilation, fastening and trim-panel closure before use.

View original source ↗
