Headlight-Washer Nozzle Ball

ABS · PETG1 FILEPublic DomainLights

PART RECORDREF 1549

PART: Headlight-Washer Nozzle Ball
OEM: —
FITS: Z4 E85 / E86

Loading 3D viewer...

PART ID · BIMMER-3D / 1549QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1549

[01]Head_Light_Washer_Nozzle_Sprayer_Ball.STLHead_Light_Washer_Nozzle_Sprayer_Ball.STL.STL
[02]Bounding box16.500 × 13.994 × 13.991 mm
[03]Volume1,421.742 mm³

Field notes

BY CARLES RODRIGUEZ LOPEZ (CHALSTER_EGO)

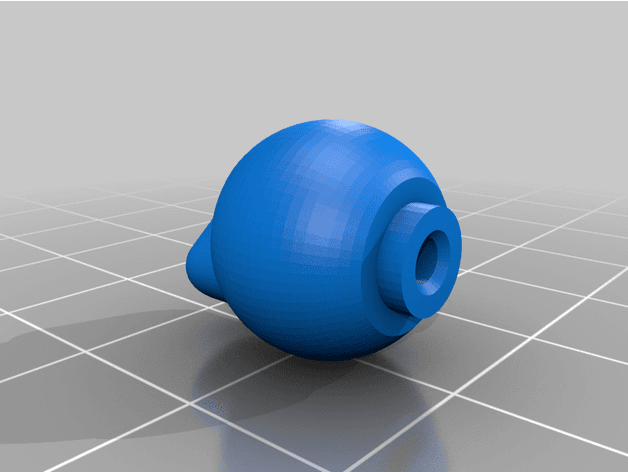

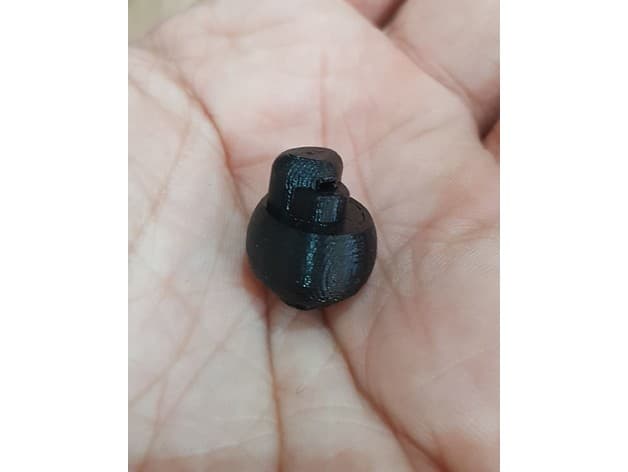

Replacement ball outlet for a cracked headlight-washer nozzle, shown loose and fitted to the original sprayer. The creator bonded the PLA part with water-resistant adhesive and notes that the bore may need careful finishing. No complete-nozzle parent number is assigned; verify sealing, spray direction, cover clearance and legal washer operation before driving.
