Headlight Dust-Cover Latch Repair
ABS · Nylon · PETG2 FILESCC-BYLights
- PART
- Headlight Dust-Cover Latch Repair
- OEM
- —
- FITS
- X3 E83
Loading 3D viewer...
PART ID · BIMMER-3D / 1492QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
2 PLATES
PLATE 01 / 02No caption recorded
Build sheet
MAN-1492- [01]e83_headlight_dust_cover_fix.stle83_headlight_dust_cover_fix.stl.STL
- [02]e83_headlight_dust_cover_fix.3mfe83_headlight_dust_cover_fix.3mf.STL
- [03]Bounding box60.400 × 50.000 × 14.470 mm
- [04]Volume16,891.084 mm³
Field notes

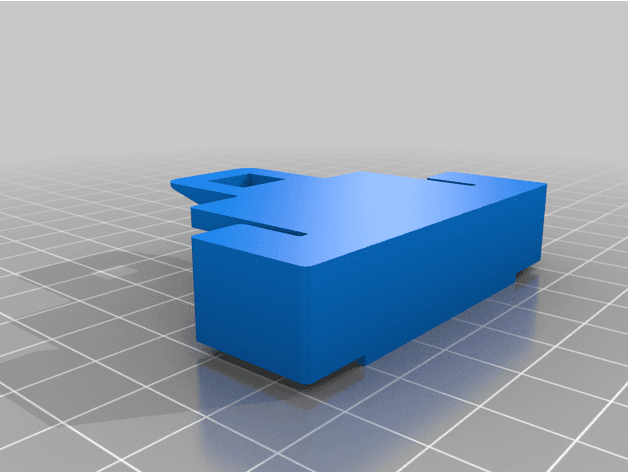

BY NICOLA FLORIS (ALOKIN90)Slide-on repair for a broken latch on the low-beam rear headlight dust cover, directly modeled and fit-tested by the creator for X3 E83 headlights. Molded marking 1305239123 is not an 11-digit BMW number; catalog number 63128381326 identifies the complete dust cover, not this printed latch repair, so it is deliberately withheld. Print in PETG or a higher-temperature engineering polymer and verify the cover remains sealed and removable after heat cycling.
