BIMMER 3D PARTS
PART №1214
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026

Hazard / Lock Button Cover

ABS · PETG1 FILECC-BYDashboard
PART RECORDREF 1214
PART
Hazard / Lock Button Cover
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1214QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1214
  • [01]button_cover2.stl.STL

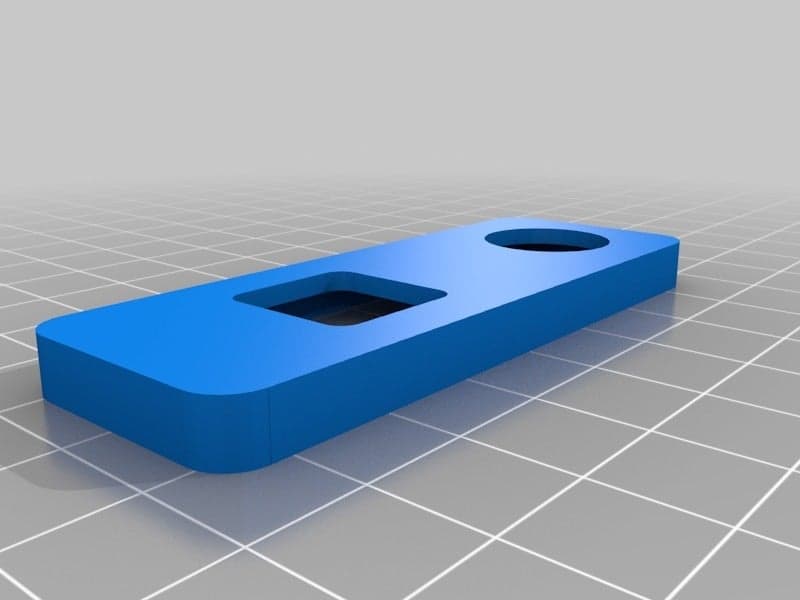

  • [02]Bounding box71.400 × 26.000 × 5.500 mm
  • [03]Volume4,701.957 mm³
Field notes
BY ADCURTIN

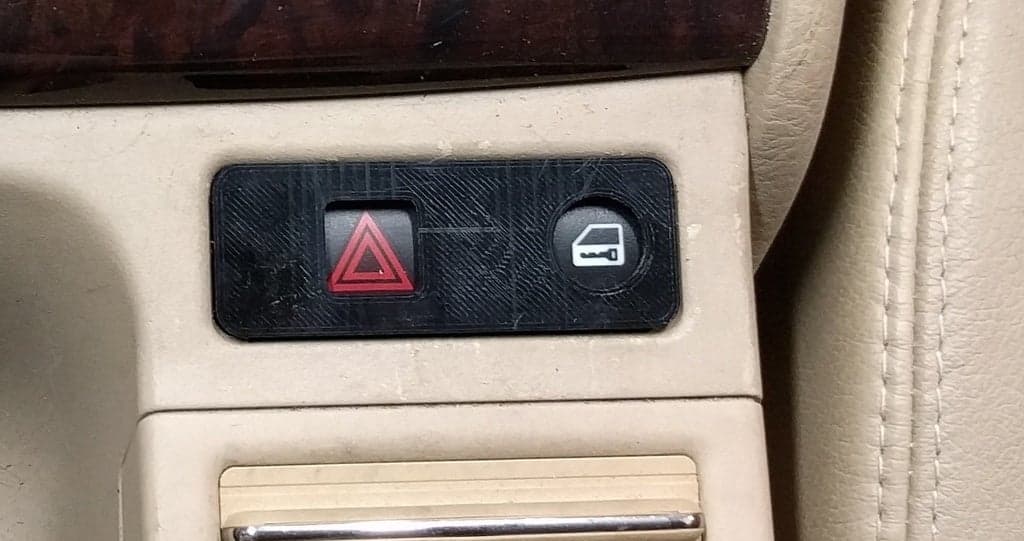

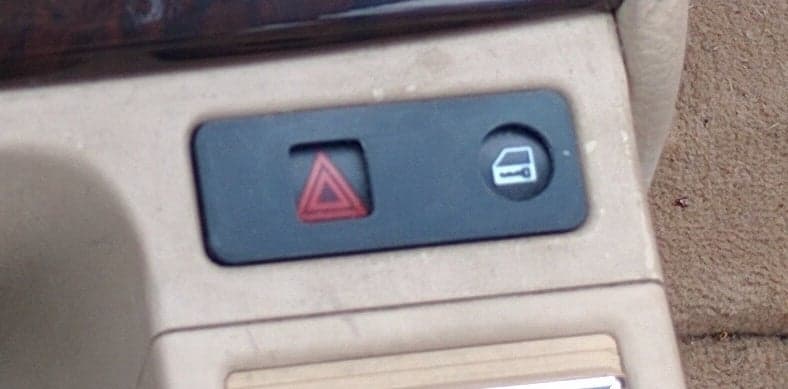

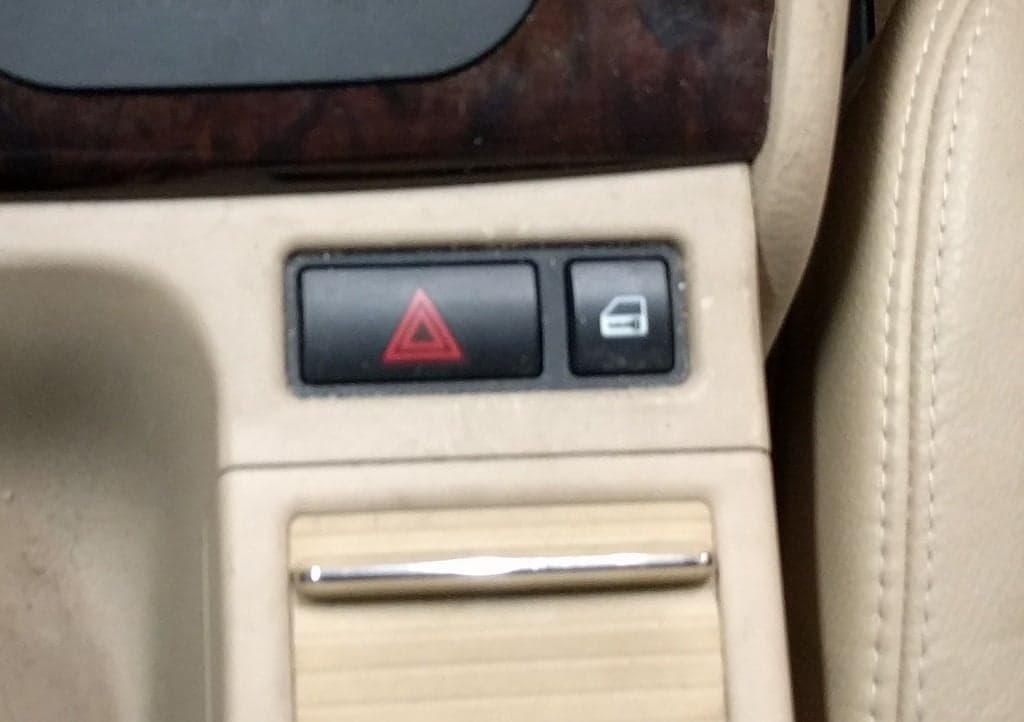

My dog rides shotgun and would always step on the hazard button when getting in and out, or when I left him in the car. I made this button cover to prevent paws from being able to activate the buttons, but still allow a finger to hit them easily. This is a friction fit in my car and doesn't move around at all. I sanded the top surface in the main picture. source openscad file is attached. Print Settings Printer Brand: PowerSpec Printer: PowerSpec 3D Pro Rafts: No Supports: No Resolution: 0.2mm layer height Infill: 20% Notes: printed upside down Post-Printing I sanded the top surface to make it a matte finish so it doesn't stick out in the car. Category: Automotive Use cabin-heat-resistant material, dry-fit the part and confirm secure retention and unobstructed operation.
