G30 / G31 Washer-Fluid Filler Funnel

PETG1 FILE0 DOWNLOADSCC-BY-NC-SAWipers & washers

PART RECORDREF 1418

PART: G30 / G31 Washer-Fluid Filler Funnel
OEM: —
FITS: 5 Series G30 / G31 / G38 / F90

Loading 3D viewer...

PART ID · BIMMER-3D / 1418QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

G30 / G31 Washer-Fluid Filler Funnel — image 1 of 5

PLATE 01 / 05No caption recorded

Build sheet

MAN-1418

[01]trichter_bmw_g31_hd.stltrichter_bmw_g31_hd.stl.STL
[02]Bounding box151.486 × 124.972 × 70.000 mm
[03]Volume22,121.89 mm³

Field notes

BY DARKDOME

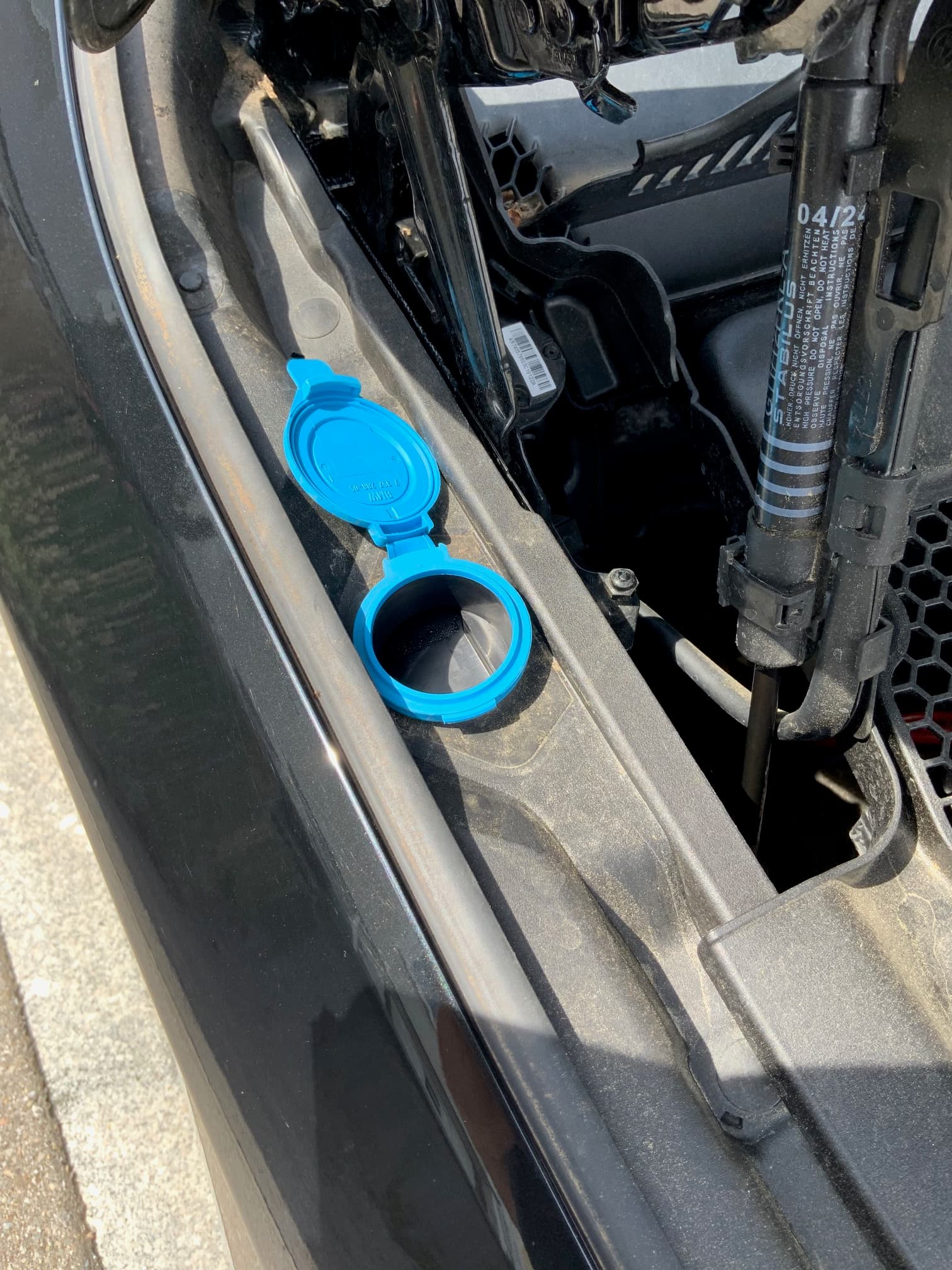

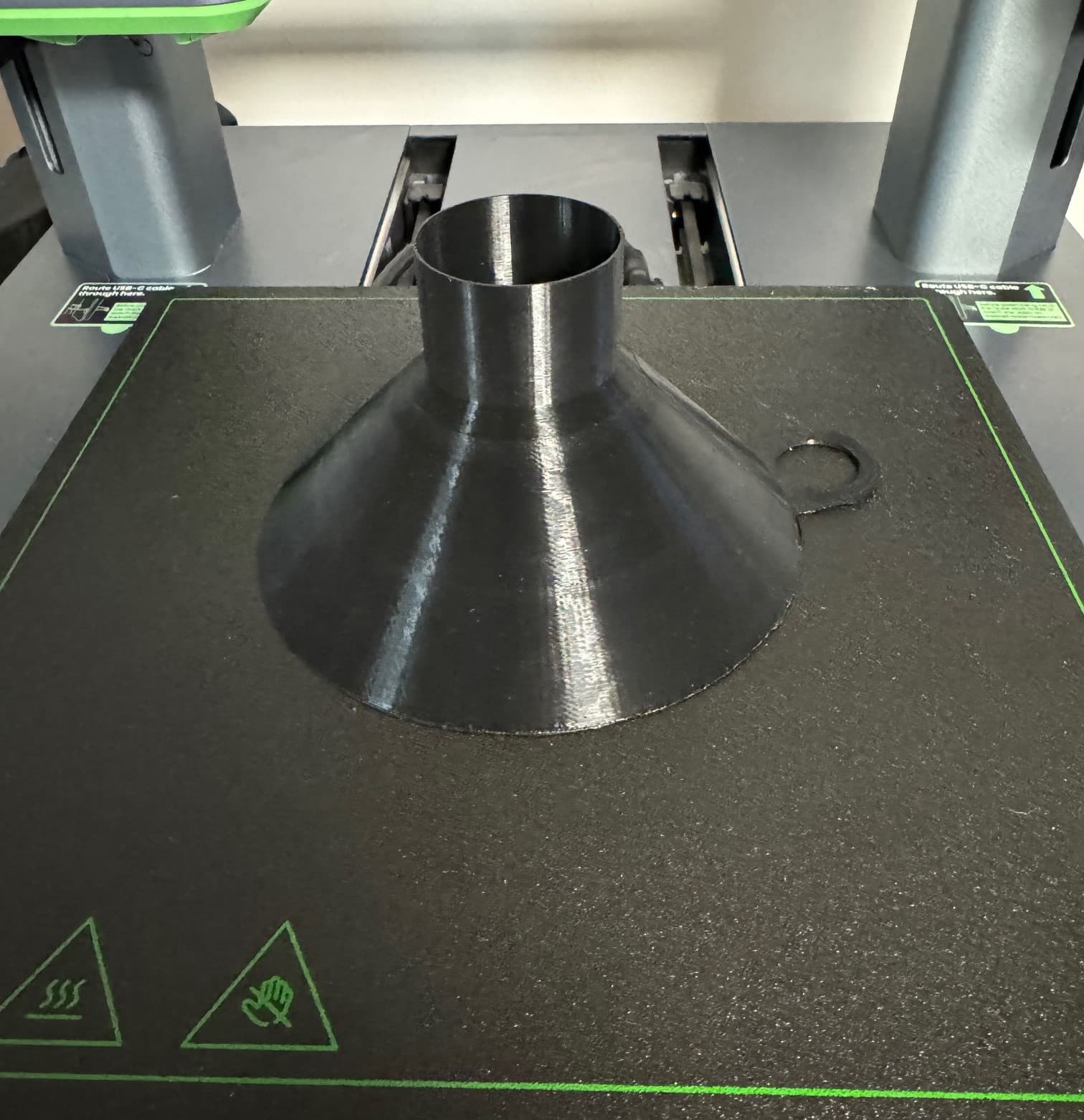

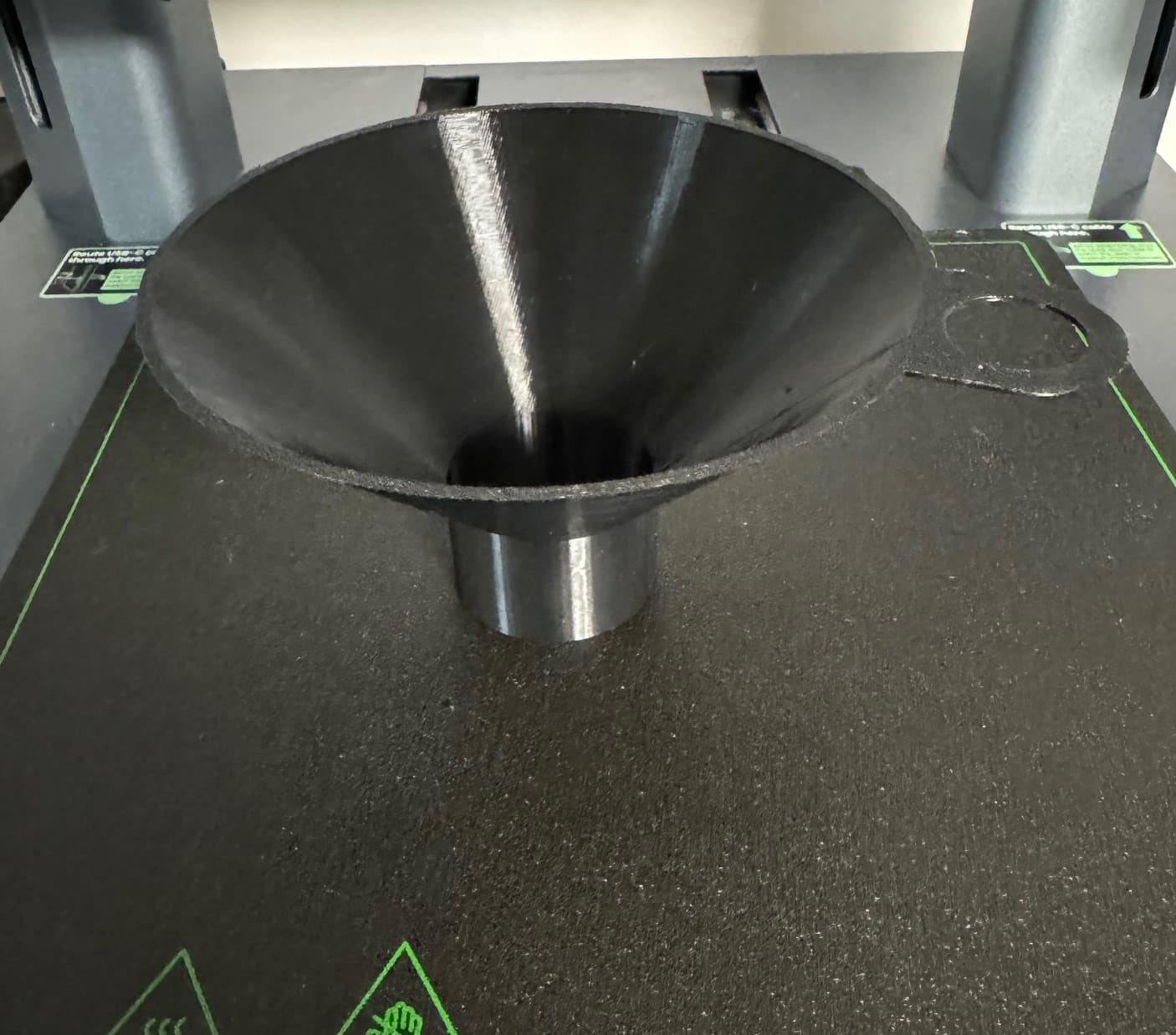

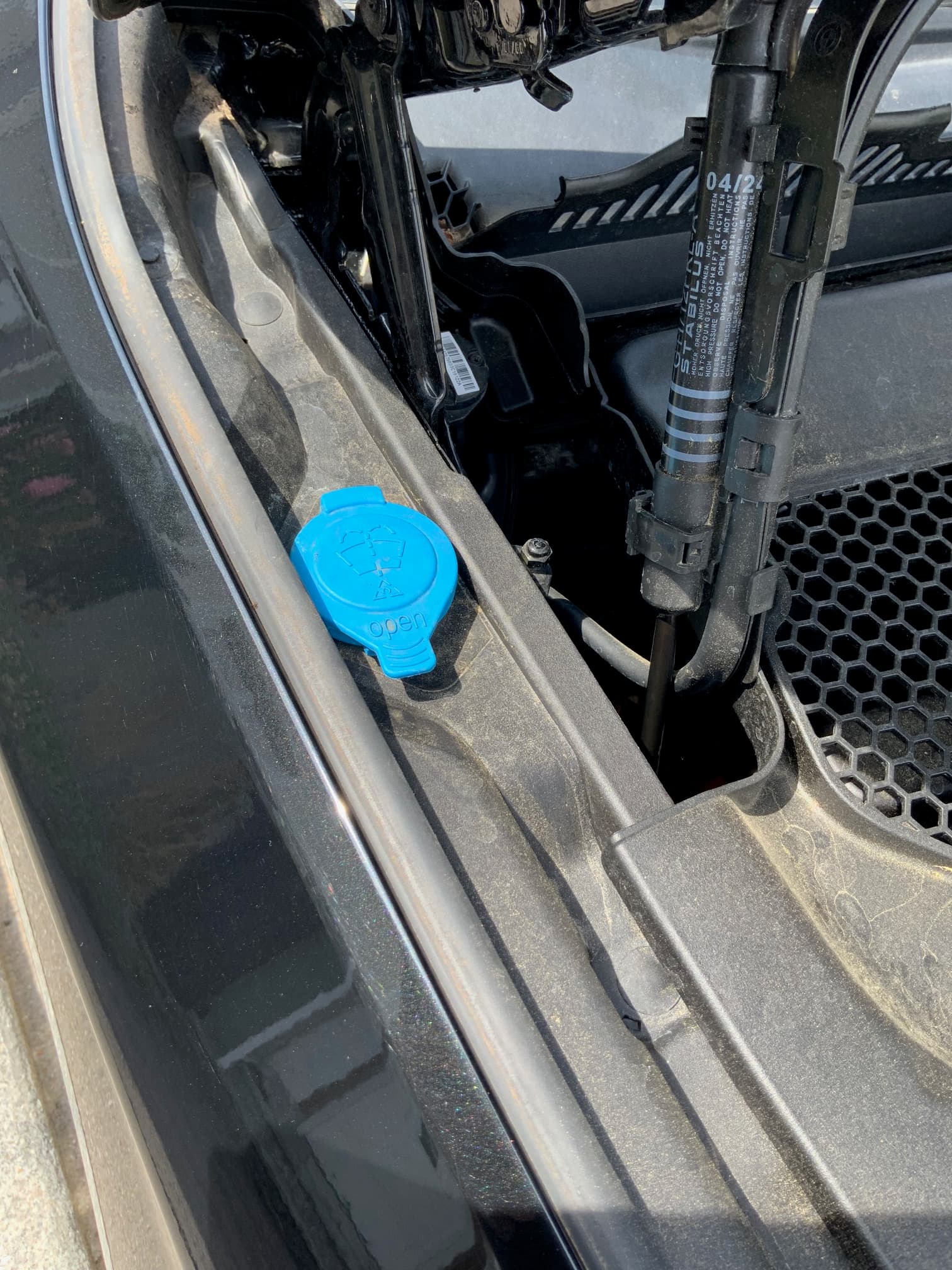

Washer-fluid filling funnel for BMW G30 and G31 models and potentially other 5 Series or 7 Series vehicles using the same filler neck. The documented source gallery shows the funnel installed in a G30/G31 filler neck, so only those directly verified generations are linked here. Print in PETG with a 0.4 mm nozzle. Keep the funnel clean, remove it after filling, reinstall the original cap fully, and wipe away spills before driving.

View original source ↗
