All-Weather Floor-Mat Badge Brackets

ABS · PETGMULTI-PART3 FILESCC-BY-NCTrim Clips

PART RECORDREF 1312

PART: All-Weather Floor-Mat Badge Brackets
OEM: —
FITS: 3 Series G20 / G21 / G28 / G80 / G81

Loading 3D viewer...

PART ID · BIMMER-3D / 1312QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs

1 PLATE

PLATE 01 / 01No caption recorded

Build sheet

MAN-1312

[01]left-floor-mat.stlleft-floor-mat.stl.STL
[02]right-floor-mat.stlright-floor-mat.stl.STL
[03]bmw-g2x-all-weather-floor-mat-bracket.3mfbmw-g2x-all-weather-floor-mat-bracket.3mf.STL
[04]Bounding box224.000 × 128.005 × 4.600 mm
[05]Volume44,835.575 mm³

Field notes

BY HORFIC

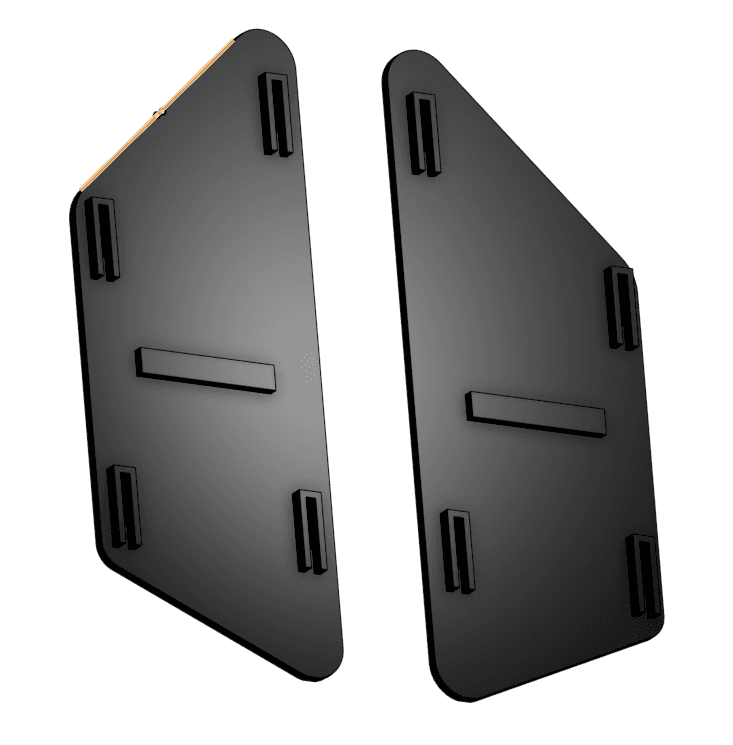

Left and right replacement brackets for retaining the metal badge inserts in BMW G20/G21-family all-weather floor mats. The creator reports iterative fit testing and explains that the metal tabs pass through the bracket openings before the bracket is press-slid into place. Use PETG or ABS, fit only to the mat badge area, and verify the mat remains fully anchored with no loose piece or raised edge near any pedal before driving.
