Trunk Bag Hook

ABS · PETGMULTI-PART2 FILESCC-BYInterior
PART RECORDREF 1310
PART
Trunk Bag Hook
OEM
FITS
3 Series G20 / G21 / G28 / G80 / G81
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1310QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
6 PLATES

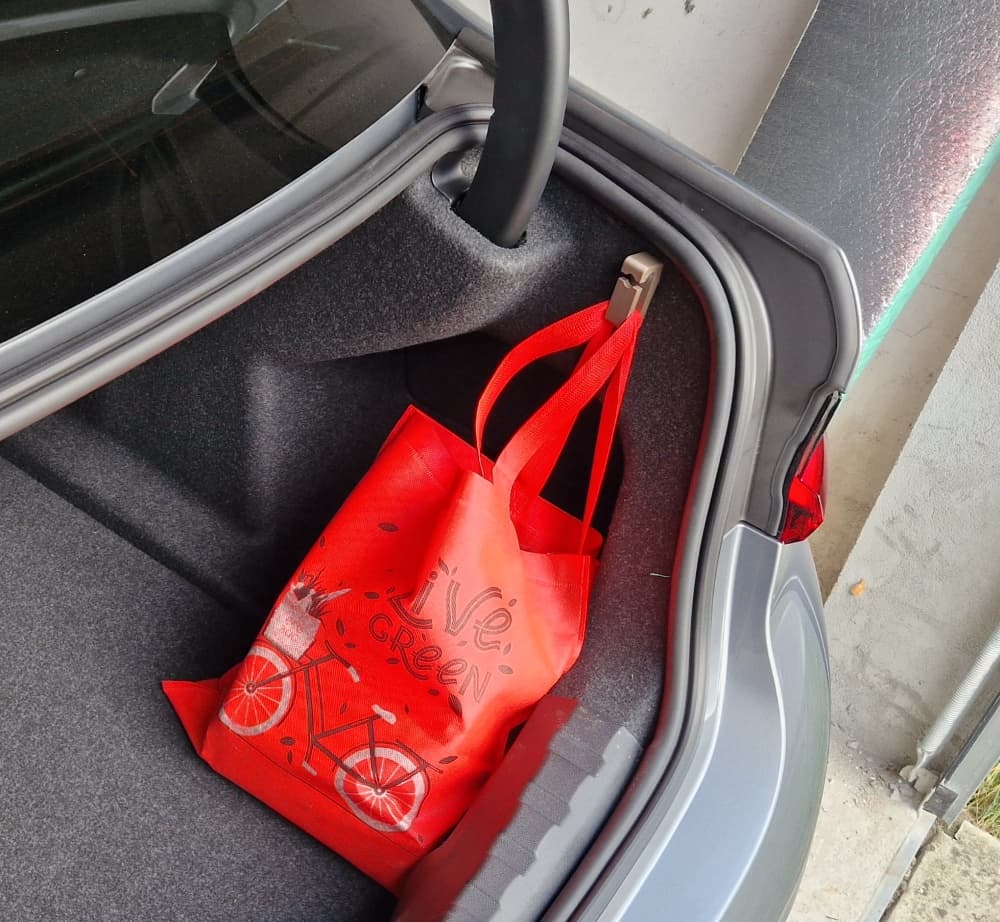

Plate 1 of 6
PLATE 01 / 06No caption recorded
Build sheet
MAN-1310

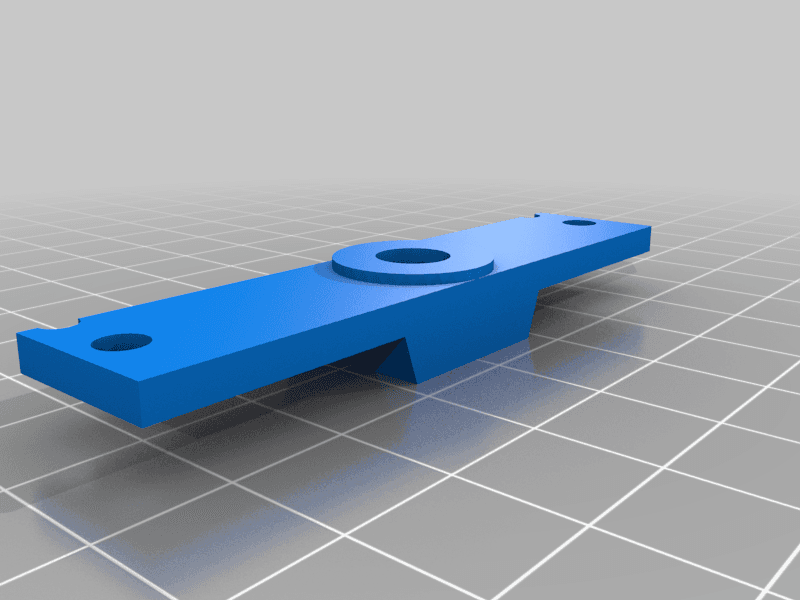

  • [01]Blokada_V3.stl.STL

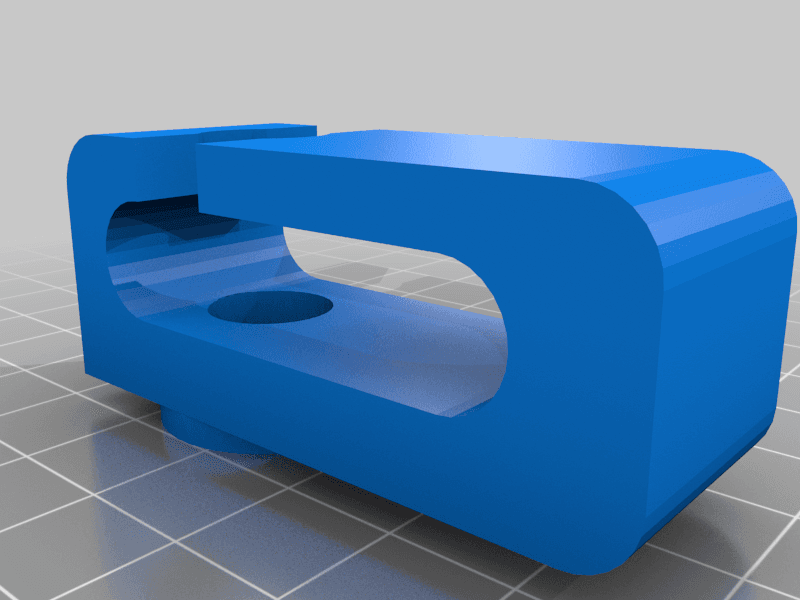

  • [02]Hak_V3.stl.STL
  • [03]Bounding box68.600 × 28.500 × 24.500 mm
  • [04]Volume19,180.52 mm³
Field notes
BY TOMEK OGONEK (MOSKIL)

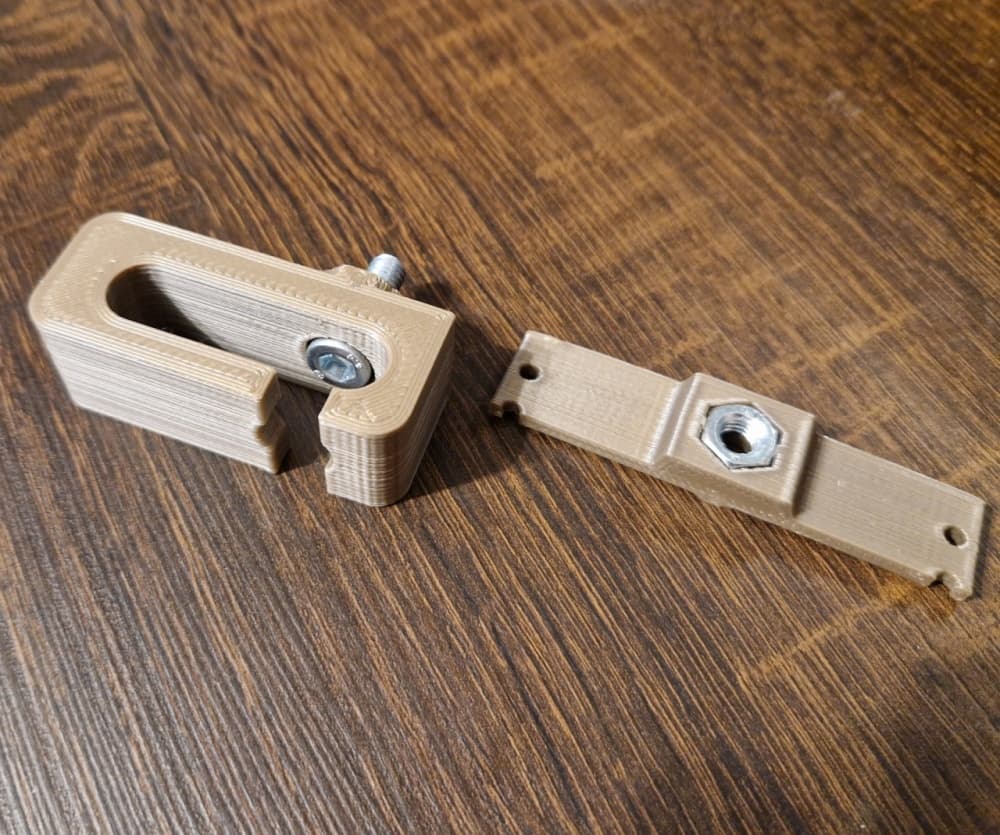

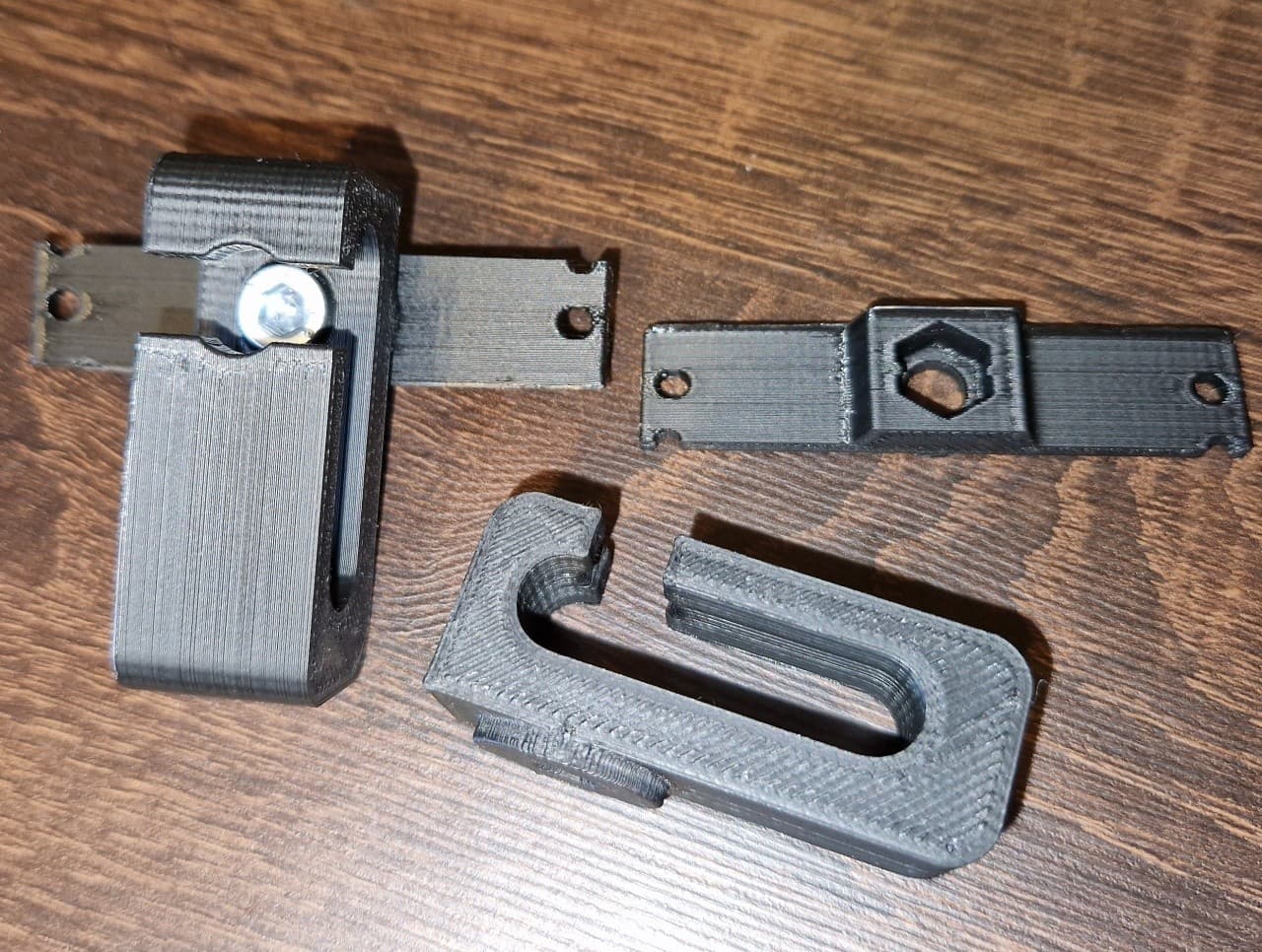

Two-piece fold-down bag hook designed and physically demonstrated in the trunk of a BMW G20 3 Series. Install with an M6 nut, a 25–40 mm M6 socket-head bolt and a temporary nut-retaining aid as described by the creator. Use cabin-heat-resistant material, confirm the mounting point is structurally suitable, keep the load light and verify the hook and cargo cannot interfere with the trunk lid, wiring or emergency equipment.
