Front-Grille and Valance Expanding Nut

Nylon · PETG1 FILECC-BY-NC-SATrim Clips

PART RECORDREF 1074

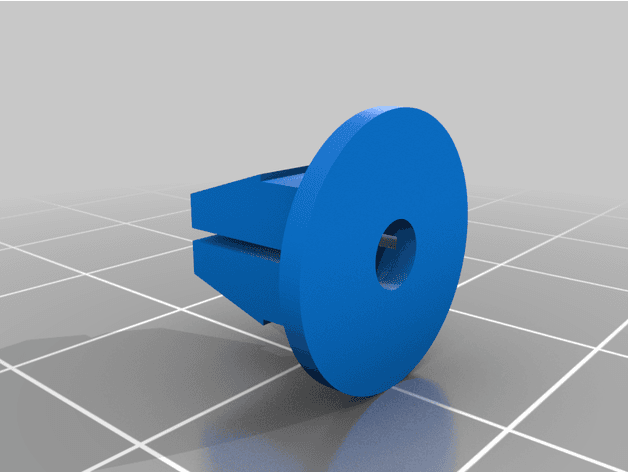

PART: Front-Grille and Valance Expanding Nut
OEM: —
FITS: 3 Series E21

Loading 3D viewer...

PART ID · BIMMER-3D / 1074QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

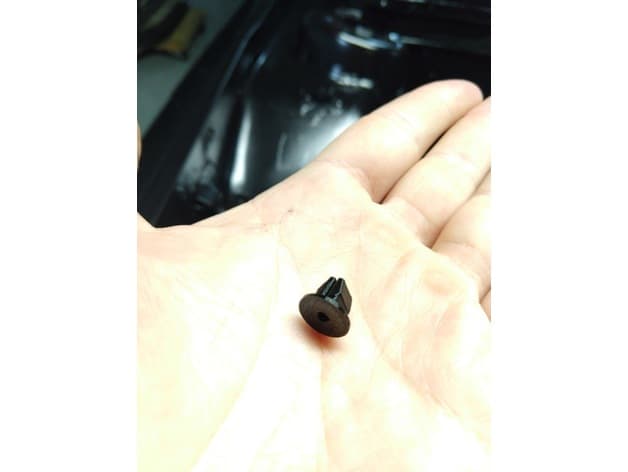

PLATE 01 / 03No caption recorded

Build sheet

MAN-1074

[01]Expanding_Nut.stlExpanding_Nut.stl.STL
[02]Bounding box12.000 × 12.000 × 9.000 mm
[03]Volume351.365 mm³

Field notes

BY JUAN DIEGO MESA (JMESA)

Replacement expanding nut for securing front trim, grille and valance pieces on the BMW E21. The creator physically fitted the part and recommends flexible, heat-resistant PETG at full infill. Confirm hole diameter, screw engagement and trim retention.

View original source ↗
