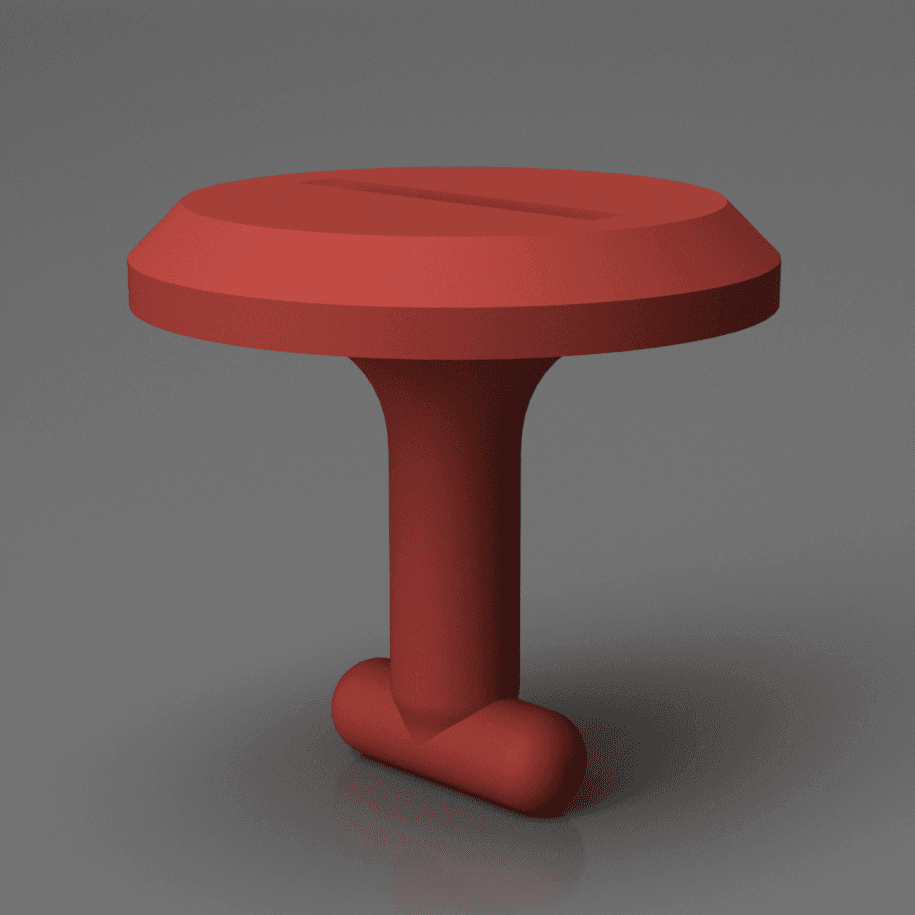

Floor Mat Retention Clip

ABS · PETG1 FILECC-BY-NCTrim Clips
PART RECORDREF 1240
PART
Floor Mat Retention Clip
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1240QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES

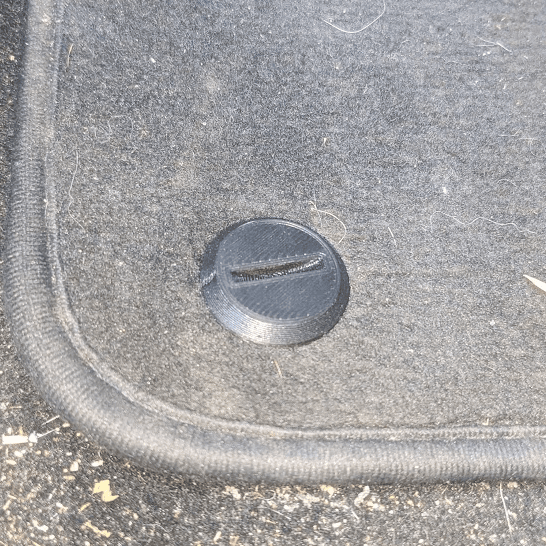

Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1240
  • [01]floormatclip_v2.stl.STL
  • [02]Bounding box23.999 × 23.999 × 22.242 mm
  • [03]Volume1,998.252 mm³
Field notes
BY SHR00MIE

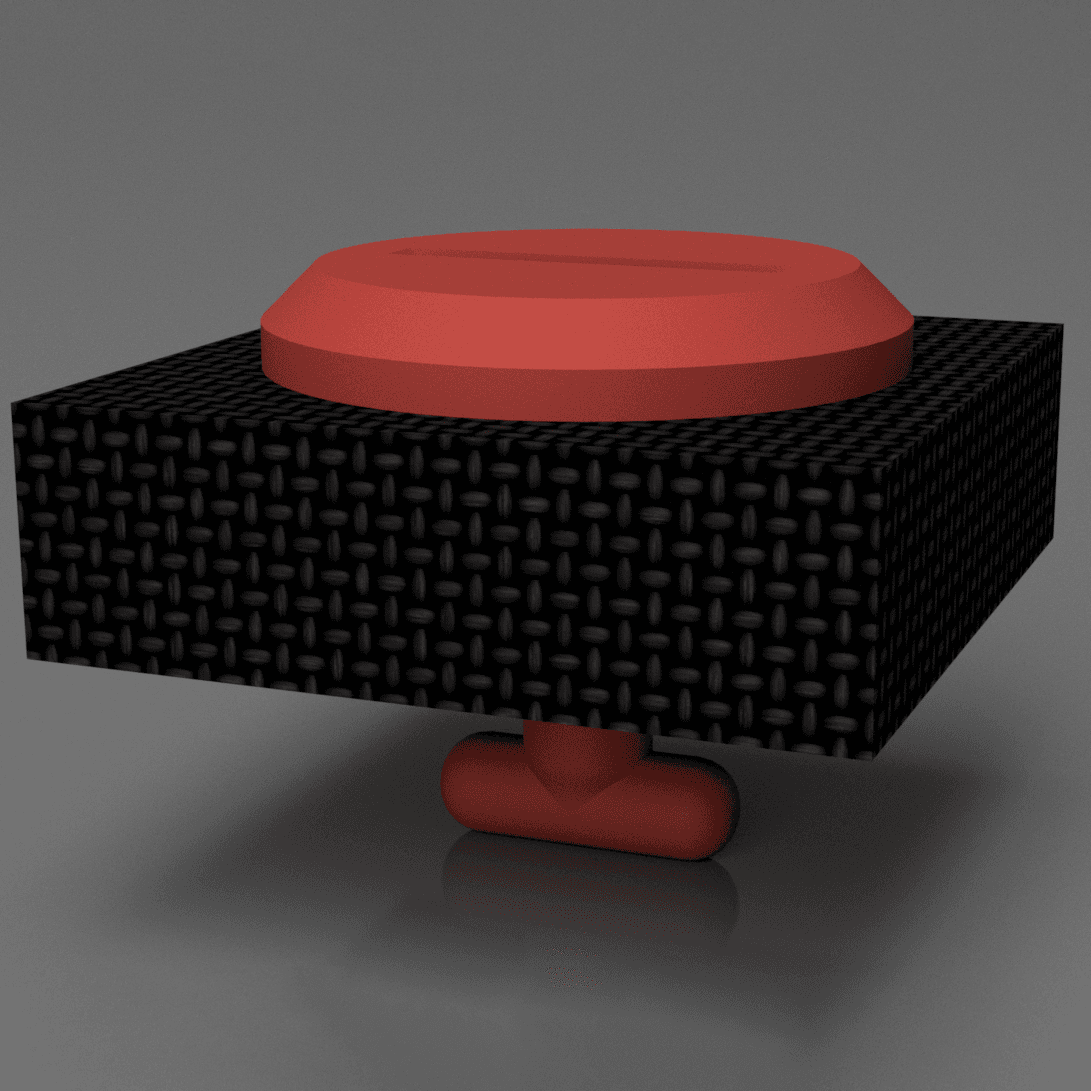

Got tired of the Velcro pads failing constantly, forcing me to adjust the floor mats every damn time I got in the car. This is my solution. Printing: Small part, so go 100% infill @ .2 or smaller Button face down Organic supports on crossmember PETG pref Install: Remove existing Velcro pads. Align floor mats. Eyeball orientation and location of vertical slot through carpet. Large swiss army knife blade is more or less perfect height. Cut a vertical slit through the carpet into corresponding chassis slot. Pass clip through carpet, into retention slot, and use a nickle/quarter to lock the clip into place. vroom vroom. Use cabin-heat-resistant material, dry-fit the part and confirm secure retention and unobstructed operation.
