BIMMER 3D PARTS
PART №1505
FROMBIMMER-3D-PARTSDESTWORKBENCH01 AUG 2026

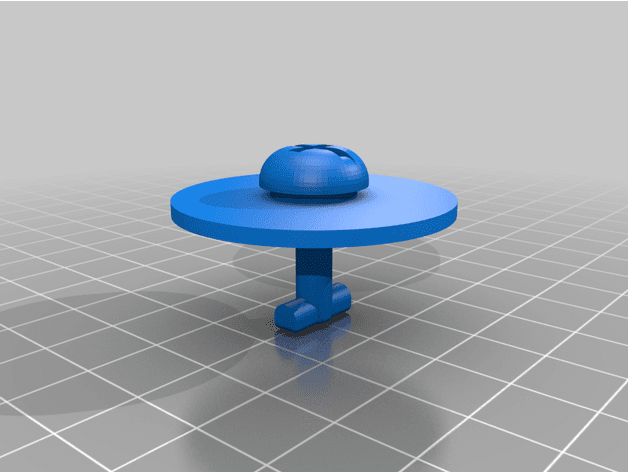

Floor-Mat Retaining Clip

ABS · Nylon · PETG1 FILECC-BY-SATrim Clips
PART RECORDREF 1505
PART
Floor-Mat Retaining Clip
OEM
FITS
X4 G02 / F98
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1505QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Build sheet
MAN-1505
  • [01]Floor_Mat_Retaining_Clip.stl.STL
  • [02]Bounding box37.994 × 37.990 × 24.498 mm
  • [03]Volume3,426.554 mm³
Field notes
BY TOM T (CENTURYTT)

Replacement retaining clip for third-party winter floor mats. The creator designed and physically printed it after the supplied clip broke, and explicitly states it was used for the mats in a BMW X4 G02. Although G20 and G03 are suggested by the source, those fitments are not independently tested and are intentionally not linked. This is not represented as a genuine BMW component and no OEM number is assigned. Use a durable material such as PETG, ABS or nylon, compare the mating profile with the broken mat clip, and confirm that the mat is securely retained without interfering with pedal travel before driving.
