Flexible Fast Charger Wall-and-Case Mount Set

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYElectrical
PART RECORDREF 1488
PART
Flexible Fast Charger Wall-and-Case Mount Set
OEM
FITS
iX3 G08
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1488QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1488
  • [01]wall_mount.stl.STL
  • [02]case_mount.stl.STL
  • [03]Bounding box150.000 × 140.000 × 20.000 mm
  • [04]Volume187,683.783 mm³
Field notes
BY PETER VAN AKEN (VAEIN3D)

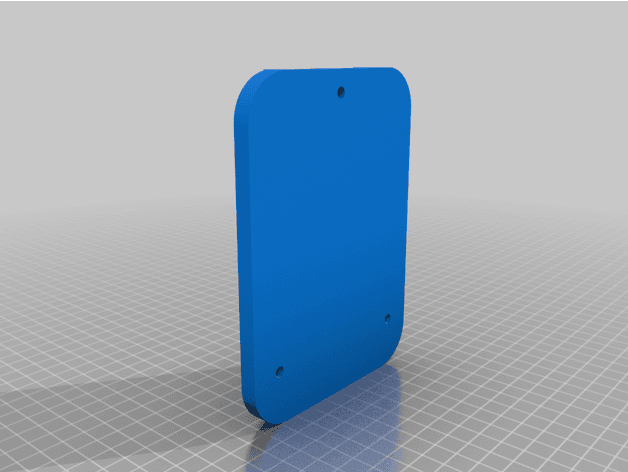

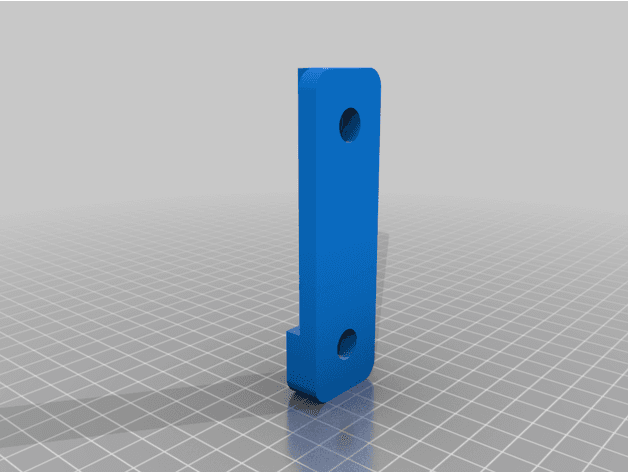

Two-piece storage mount for the portable Flexible Fast Charger documented with the first-generation iX3: a wall plate retained by three 4.5 mm screw holes and a case-side bracket retained by two M4 x 12 fasteners. The creator printed and physically installed the set, and supplies separate watertight STL files. Verify the pictured charger housing and mounting-hole dimensions before printing because portable charger hardware varies by market and revision. Print vertically with four perimeters as documented, use PETG or another durable heat-resistant material, anchor into a suitable wall substrate, and confirm the charger and cable cannot fall, overheat, abrade, or strain electrical connections.
