Convertible Roof-Frame Strip Clip Repair Set

REPLACES OEM51765A71150 · 51767162587

ABS · PETGMULTI-PART2 FILESCC-BYTrim Clips

PART RECORDREF 1314

PART: Convertible Roof-Frame Strip Clip Repair Set
OEM: 51765A71150, 51767162587
FITS: 4 Series F32 / F33 / F36 / F82 / F83

Loading 3D viewer...

PART ID · BIMMER-3D / 1314QTY 2 · STLHANDLE · NO SUPPORTS

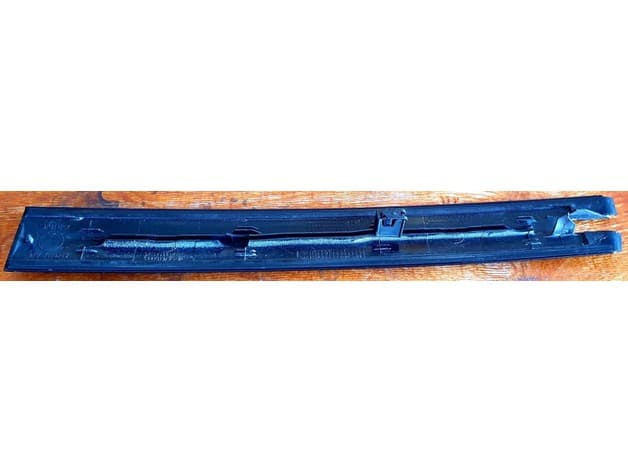

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1314

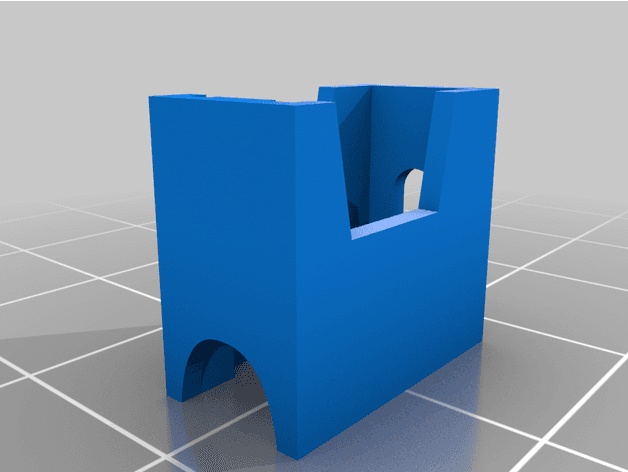

[01]Clip_-_ClipOhneVerschluss-1.STLClip_-_ClipOhneVerschluss-1.STL.STL

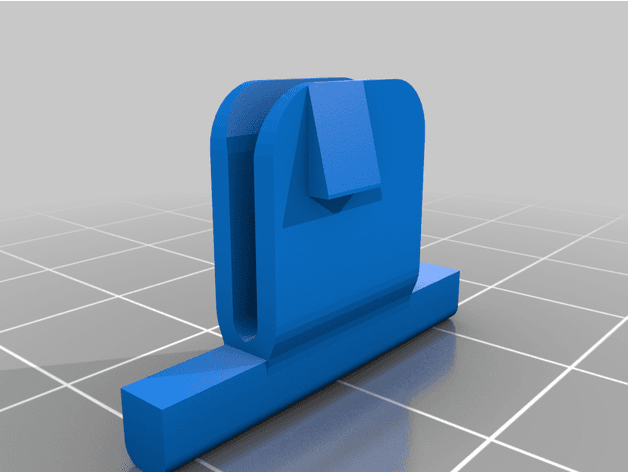

[02]DoppelStift3.STLDoppelStift3.STL.STL
[03]Bounding box38.000 × 16.000 × 7.500 mm
[04]Volume964.22 mm³

Field notes

BY NIKOLAI HAMMER (TEACHERMC)

Replacement clip and glue-in double-stud repair for broken F33 Convertible roof-frame moulding retainers, designed on and physically demonstrated with a 435i F33. The BMW clip file corresponds to superseded 51 76 7 162 587, now 51 76 5 A71 150; the custom glue-in double stud is not separately serviced and no moulding assembly number is assigned. Use heat- and UV-resistant material plus high-strength compatible adhesive, follow the creator's hook orientation, and verify full roof travel, strip retention, drainage and sealing before driving.
