Coupe/Convertible Phone-Cradle Delete Tray Set

ABS · PETGMULTI-PART4 FILESCC-BY-NCInterior
PART RECORDREF 1316
PART
Coupe/Convertible Phone-Cradle Delete Tray Set
OEM
FITS
4 Series F32 / F33 / F36 / F82 / F83
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1316QTY 4 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1316
  • [01]lowertray.stl.STL
  • [02]uppertray.stl.STL
  • [03]lowertemplate.stl.STL
  • [04]uppertemplate.stl.STL
  • [05]Bounding box235.631 × 96.504 × 65.000 mm
  • [06]Volume142,184.65 mm³
Field notes
BY GUY SMETS

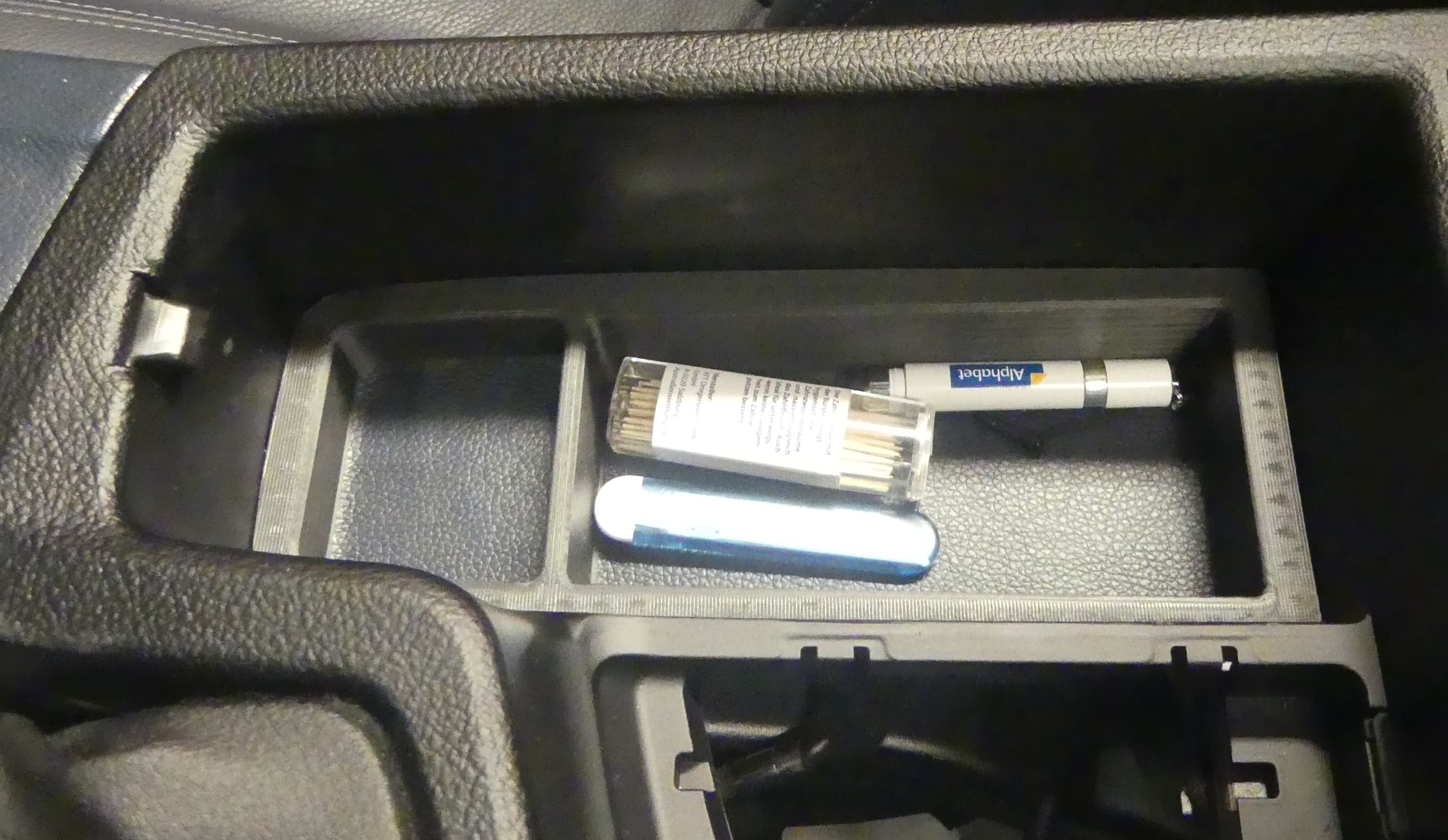

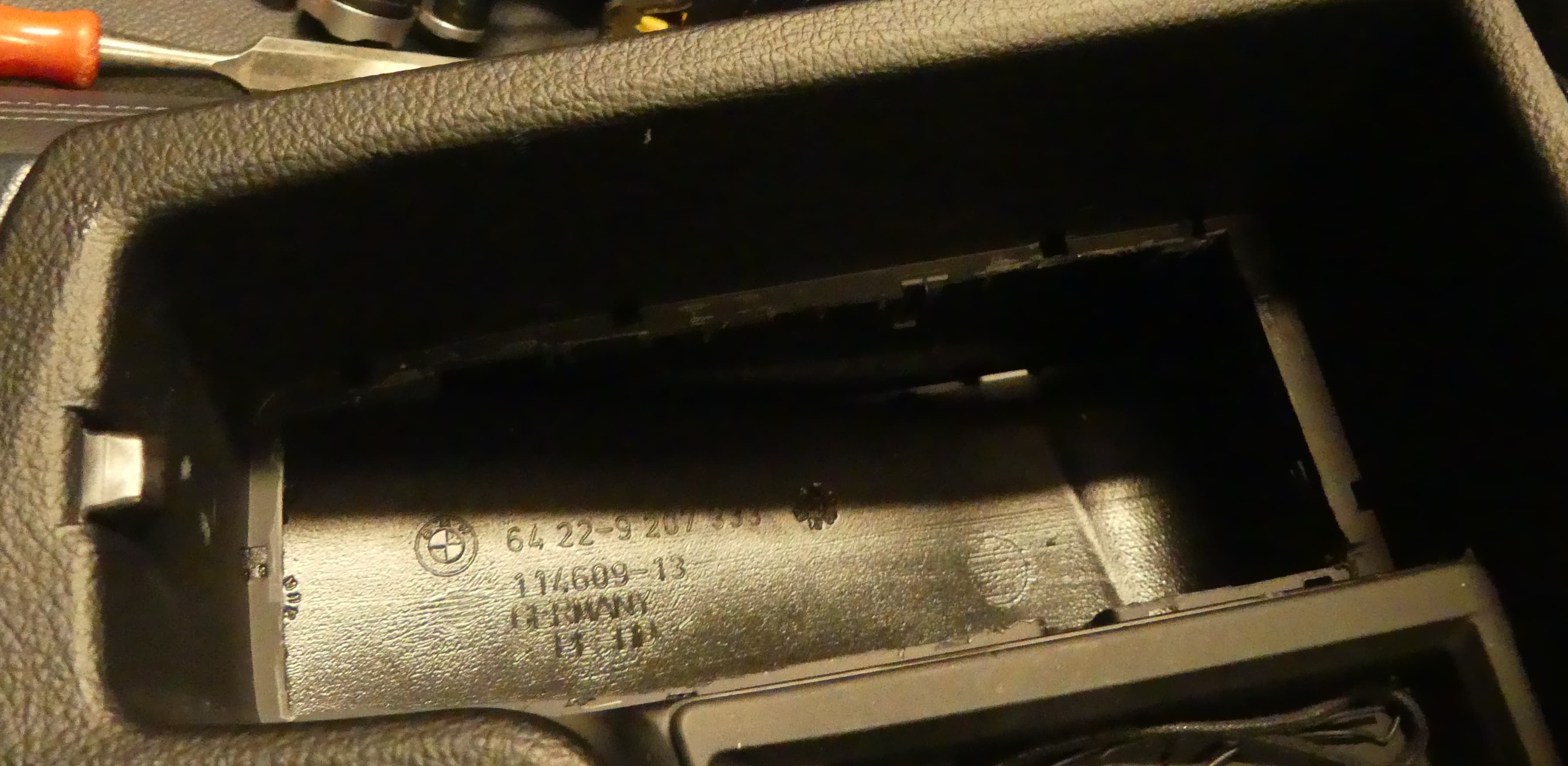

Upper and lower storage trays with cutting templates for the F32/F33 center-console cavity after removal of the original phone cradle. The creator physically demonstrates both the shallow installation and the optional deeper cut-out; the cutting templates are retained as functional parts of the set. Use cabin-heat-resistant material, protect wiring before any cutting, deburr the opening, and verify secure fit and unobstructed console operation.
