ESR Mini Qi2 Center-Console Phone Mount

ABS · Nylon2 FILESCC-BY-NC-SAInterior

PART RECORDREF 1487

PART: ESR Mini Qi2 Center-Console Phone Mount
OEM: —
FITS: iX I20

Loading 3D viewer...

PART ID · BIMMER-3D / 1487QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

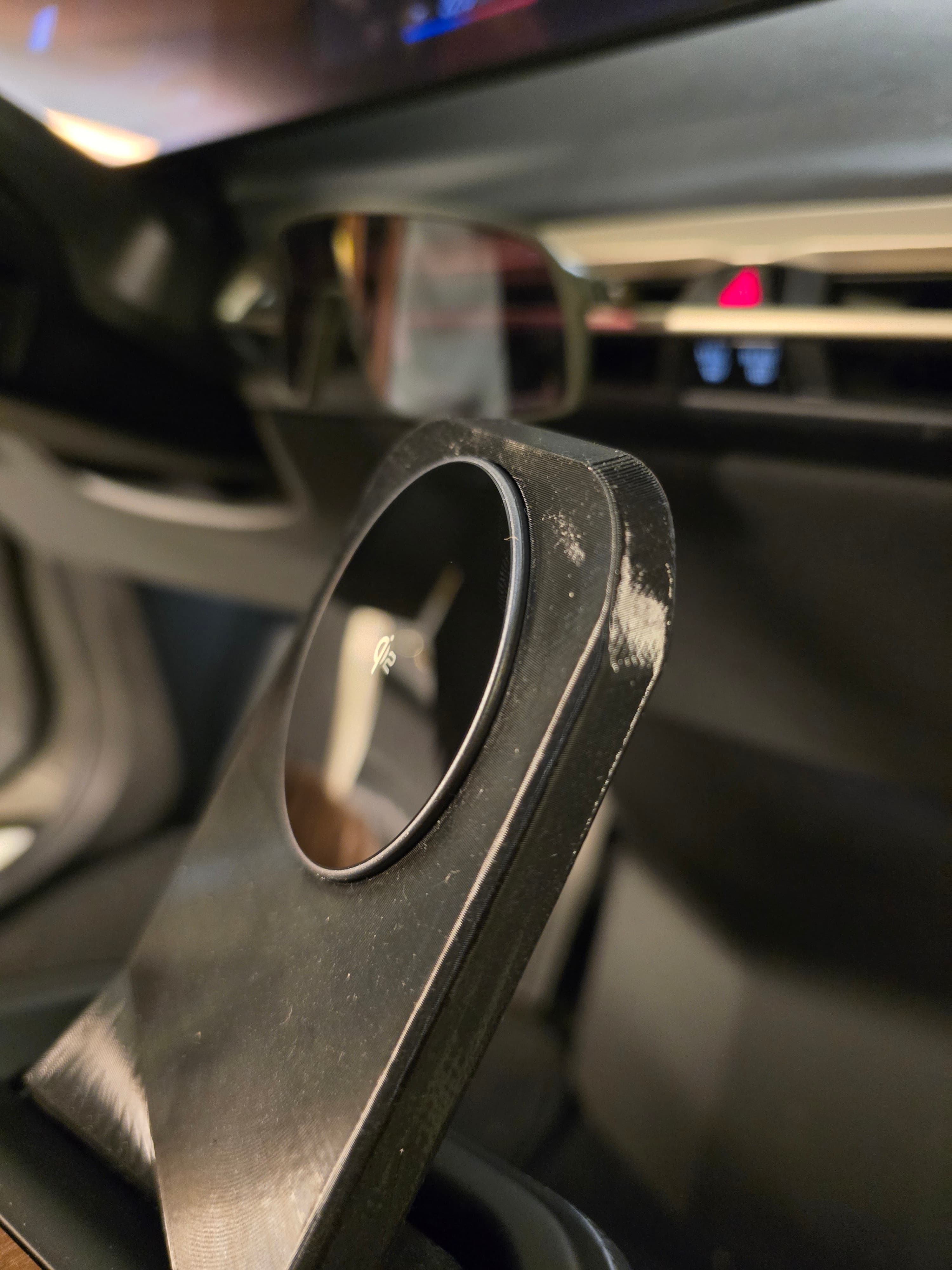

PLATE 01 / 02No caption recorded

Build sheet

MAN-1487

[01]BMW IX Esr Qi2.stlBMW IX Esr Qi2.stl.STL
[02]BMW IX Esr Qi2.stepBMW IX Esr Qi2.step.STL
[03]Bounding box157.456 × 103.824 × 93.207 mm
[04]Volume128,558.887 mm³

Field notes

BY ØYSTEIN GUDMUNDSETH

Center-console phone mount sized for an ESR Mini Qi2 charger, with a 58.9 mm diameter and 7.5 mm deep puck recess. The creator documents the printed mount installed in the vehicle and supplies both printable STL and editable STEP files. Verify the pictured console, exact charger revision and phone/case clearance before printing; use a heat-resistant material and ensure the charger, cable and phone cannot obstruct the vehicle controls or overheat.

View original source ↗
