Door-Sill Trim Clip

ABS · PETG1 FILE0 DOWNLOADSCC-BYCabin trim, cargo & roof

PART RECORDREF 1186

PART: Door-Sill Trim Clip
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1186QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

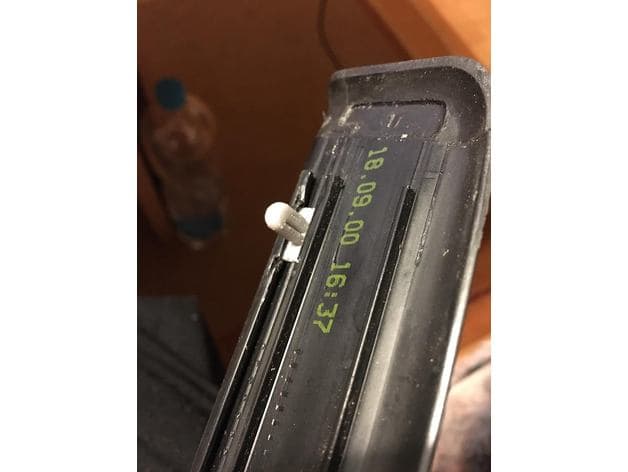

PLATE 01 / 02No caption recorded

Build sheet

MAN-1186

[01]BMW_Clip_Einstieg.stlBMW_Clip_Einstieg.stl.STL
[02]Bounding box12.000 × 11.500 × 8.992 mm
[03]Volume290.138 mm³

Field notes

BY HANS SAINTSRIDER (SAINTSRIDER)

Replacement clip for the door-sill trim. The creator installed several copies and reports that they hold securely. Align the clip carefully during installation so it does not break while being pressed into place. Use cabin-heat-resistant material, dry-fit the part, and confirm secure retention and unobstructed operation.
