PART №1439
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026

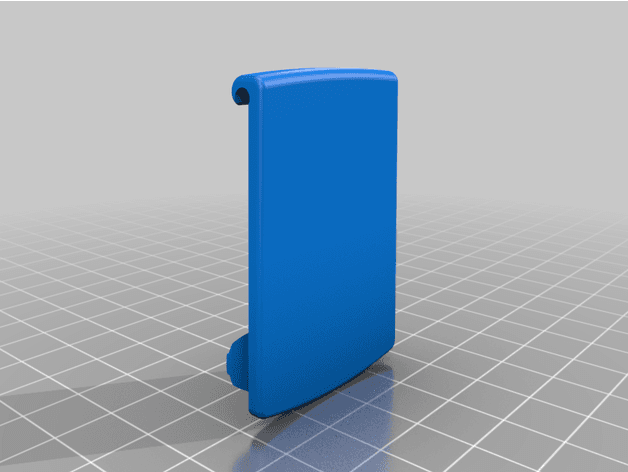

Rear-Seat ISOFIX Opening Cover
REPLACES OEM52207118674
ABS · Nylon · PETG2 FILESCC-BYSeats
- PART
- Rear-Seat ISOFIX Opening Cover
- OEM
- 52207118674
- FITS
- X1 E84
Loading 3D viewer...
PART ID · BIMMER-3D / 1439QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
2 PLATES
PLATE 01 / 02No caption recorded
Build sheet
MAN-1439- [01]isofixdeckel.stlisofixdeckel.stl.STL
- [02]isofixdeckel.stpisofixdeckel.stp.STL
- [03]Bounding box54.400 × 38.428 × 6.600 mm
- [04]Volume5,426.392 mm³
Field notes
BY JONAS O. (JJDERERSTE)Replacement black trim cover for a broken rear-seat ISOFIX anchor opening, physically shown installed by the creator on a 2012 BMW X1 E84. BMW E84 rear-seat catalogs identify the black separately serviced cover as 52207118674, item 9 with four per vehicle; Hubauer documents supersession to 52207332435. Beige 52207152210 and oyster 52202993792 are distinct color variants and are not assigned. Match black trim and verify the cover clips securely without obstructing access to the child-seat anchor.
