Touring Hatch Carpet-Panel Repair Clips

ABS · PETGMULTI-PART2 FILESCC-BYTrim Clips
PART RECORDREF 1197
PART
Touring Hatch Carpet-Panel Repair Clips
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1197QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1197
  • [01]Clip_left_2.stl.STL
  • [02]Clip_right.stl.STL
  • [03]Bounding box43.910 × 38.000 × 23.000 mm
  • [04]Volume5,039.506 mm³
Field notes
BY MATT ROCHE (ARCHBID)

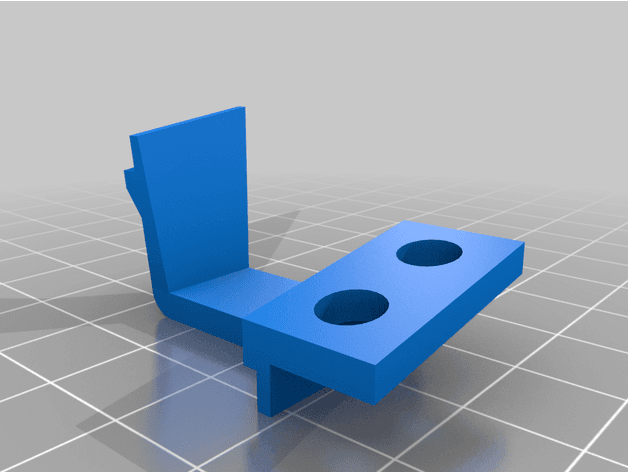

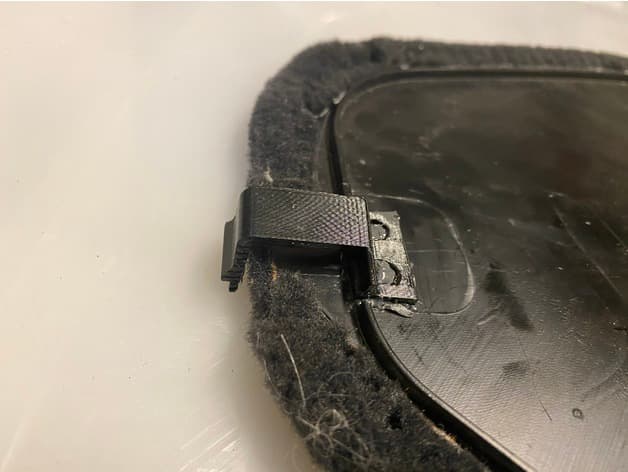

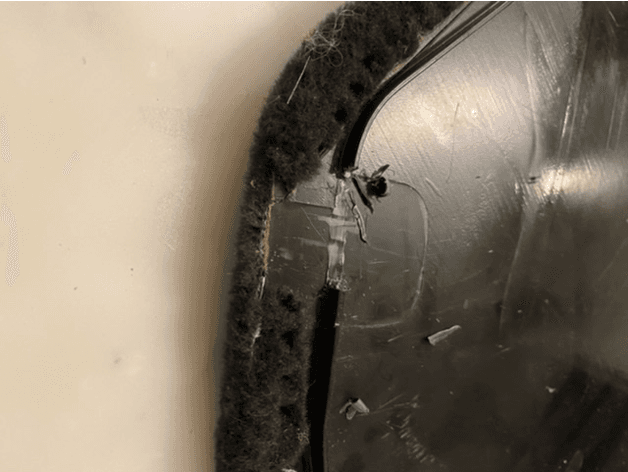

The carpeted panel on the interior of the E46 touring hatch is tricky to remove, and often the retaining clips are broken. I have created these two clips which can be epoxied in place to return normal function. In order to use them, completely cut the broken part of the clips out as shown in the photo then, use an epoxy like JB Weld liberally - the holes provide a mechanical bond for the epoxy. Note there are a right and a left. I did not create the center clip. Use cabin-heat-resistant material, dry-fit the part and confirm secure retention and unobstructed operation.
