Convertible Windshot Side Mounts

ABS · PETG1 FILECC-BYBody
PART RECORDREF 1206
PART
Convertible Windshot Side Mounts
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1206QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
9 PLATES
Plate 1 of 9

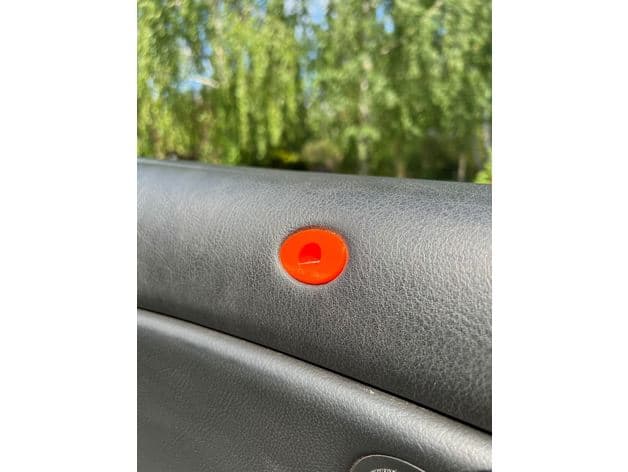

PLATE 01 / 09No caption recorded
Build sheet
MAN-1206

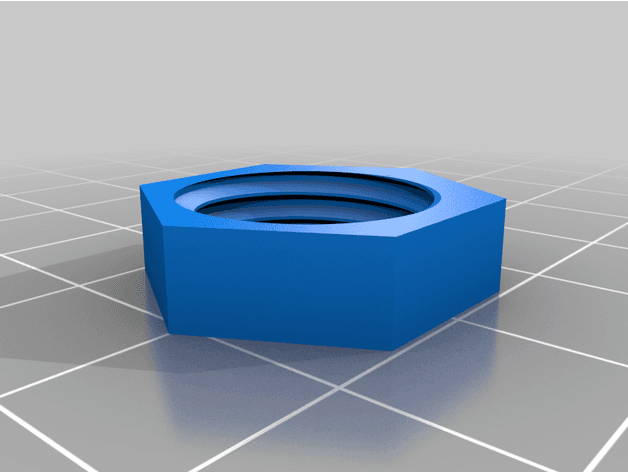

  • [01]matka.stl.STL
  • [02]Bounding box21.939 × 19.000 × 5.500 mm
  • [03]Volume711.65 mm³
Field notes
BY MATEJ DUKAT (DUKIC2000)

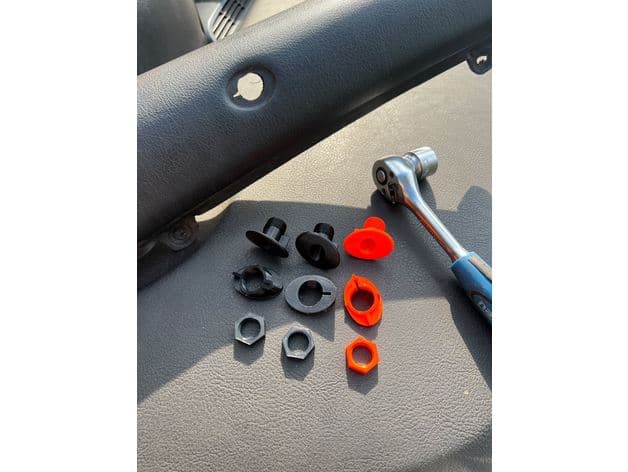

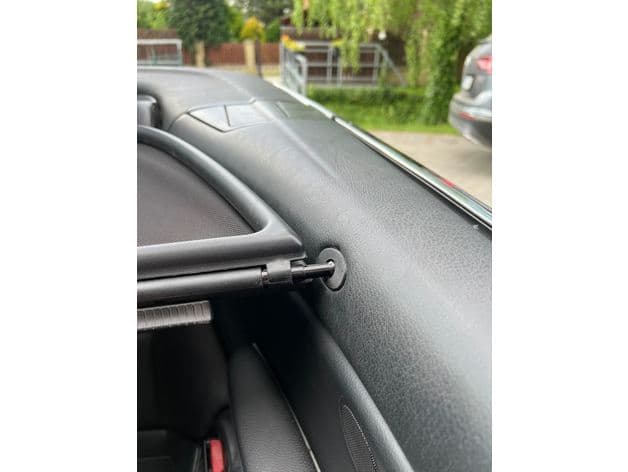

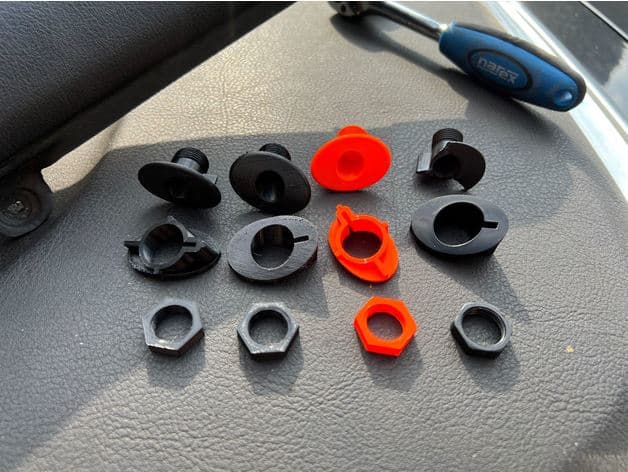

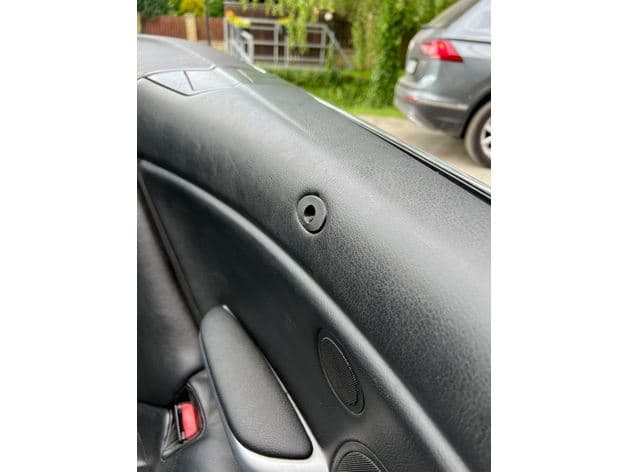

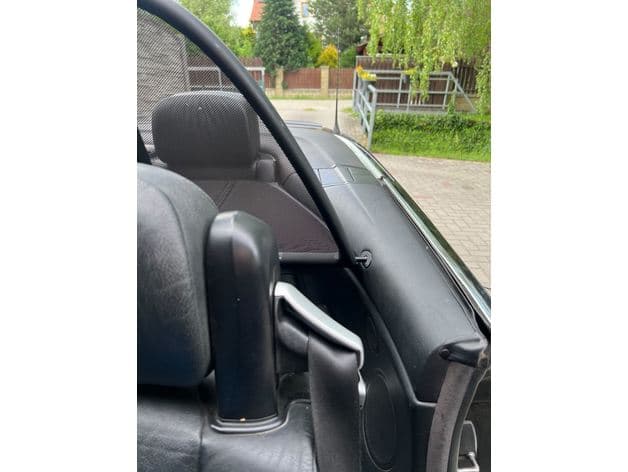

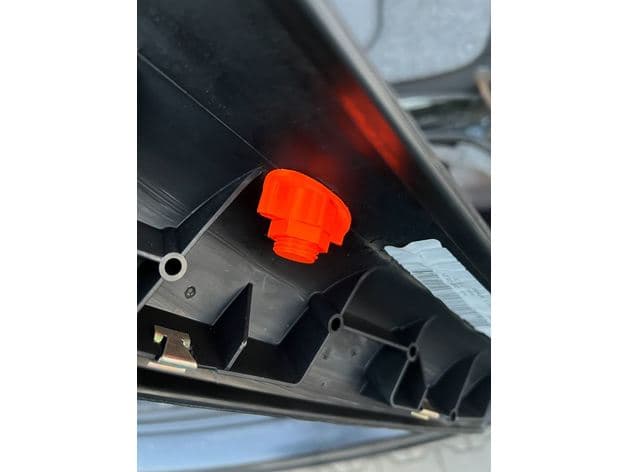

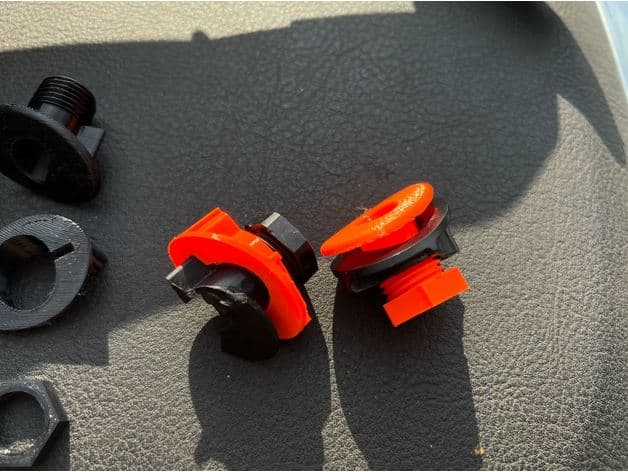

All 3 parts on my Cults profile: 3D MODEL DESCRIPTION Side BMW E46 interior mounts for windshot. All 3 parts are combinable with the original parts, so you dont have to print all 3 parts and you can choose only these you need. 3D PRINTING SETTINGS I printed in PETG - original settings. Automaticaly generated supports in Prusa Slicer are totally ok to remove. After printing, I recommend to lubricate screw with the nut before tightening. PLA will not be durable enough for outside conditions, so PETG, ABS or ASA are ideal options. Use exterior-rated material and verify secure retention, sealing and adjacent-panel clearance.
