PART №1429
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026
Adjustable Rear-Seat Side-Cover Pair
REPLACES OEM52201975863 · 52201975864 · 52208113623 · 52208113624 · 52208140407 · 52208140408 · 52208140409 · 52208140410 · 52208140411 · 52208140412 · 52208140413 · 52208140414 · 52208140415 · 52208140416
ABS · PETGMULTI-PART2 FILESCC-BY-NCSeats
- PART
- Adjustable Rear-Seat Side-Cover Pair
- OEM
- 52201975863, 52201975864, 52208113623, 52208113624, 52208140407, 52208140408, 52208140409, 52208140410, 52208140411, 52208140412, 52208140413, 52208140414, 52208140415, 52208140416
- FITS
- 7 Series E32
Loading 3D viewer...
PART ID · BIMMER-3D / 1429QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
6 PLATES
PLATE 01 / 06No caption recorded
Build sheet
MAN-1429- [01]E32_REARSEAT_LEFT_ANGLE_COVER.stlE32_REARSEAT_LEFT_ANGLE_COVER.stl.STL
- [02]E32_REARSEAT_RIGHT_ANGLE_COVER.stlE32_REARSEAT_RIGHT_ANGLE_COVER.stl.STL
- [03]Bounding box232.101 × 88.479 × 88.200 mm
- [04]Volume120,724.631 mm³
Field notes

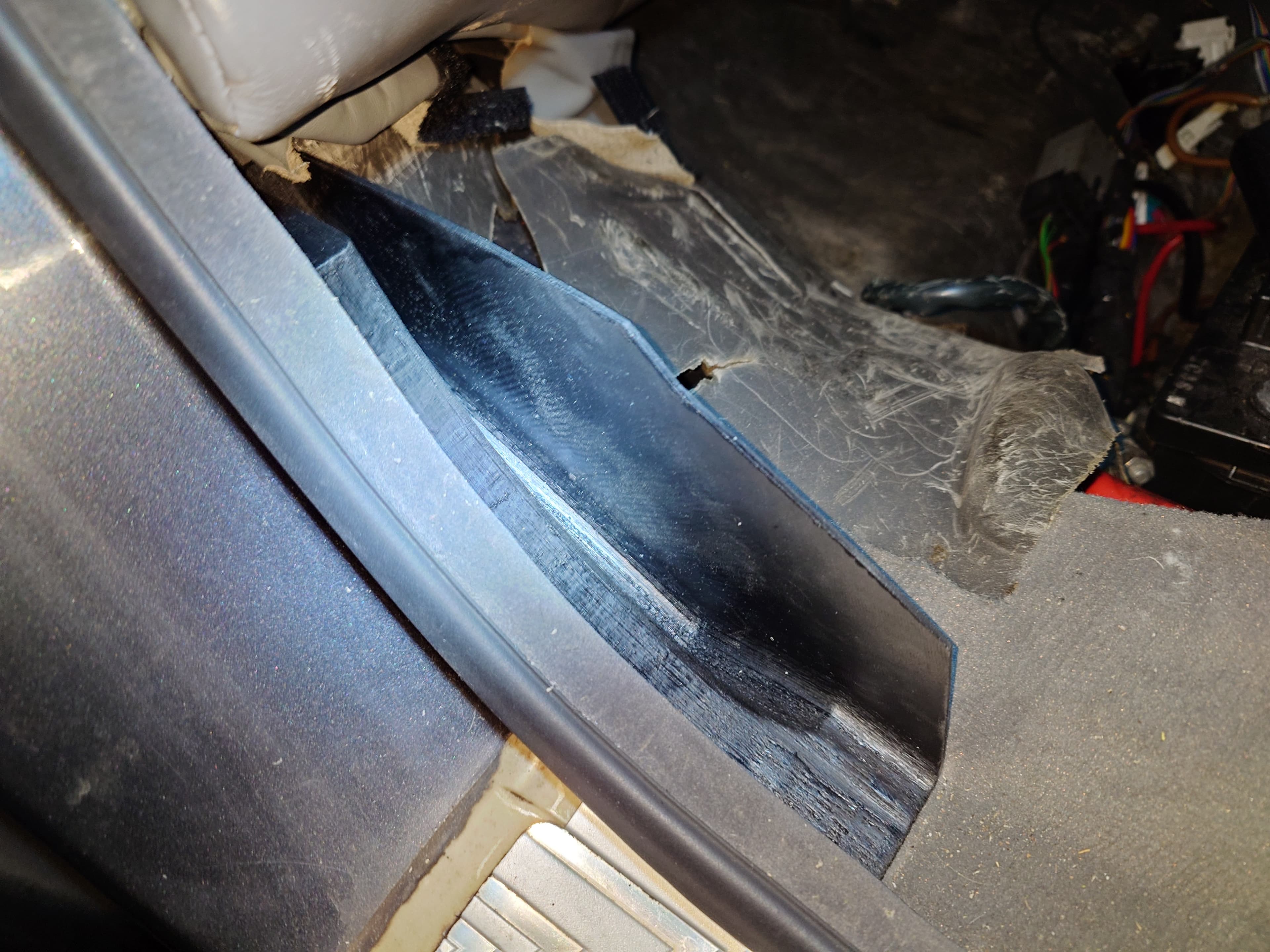

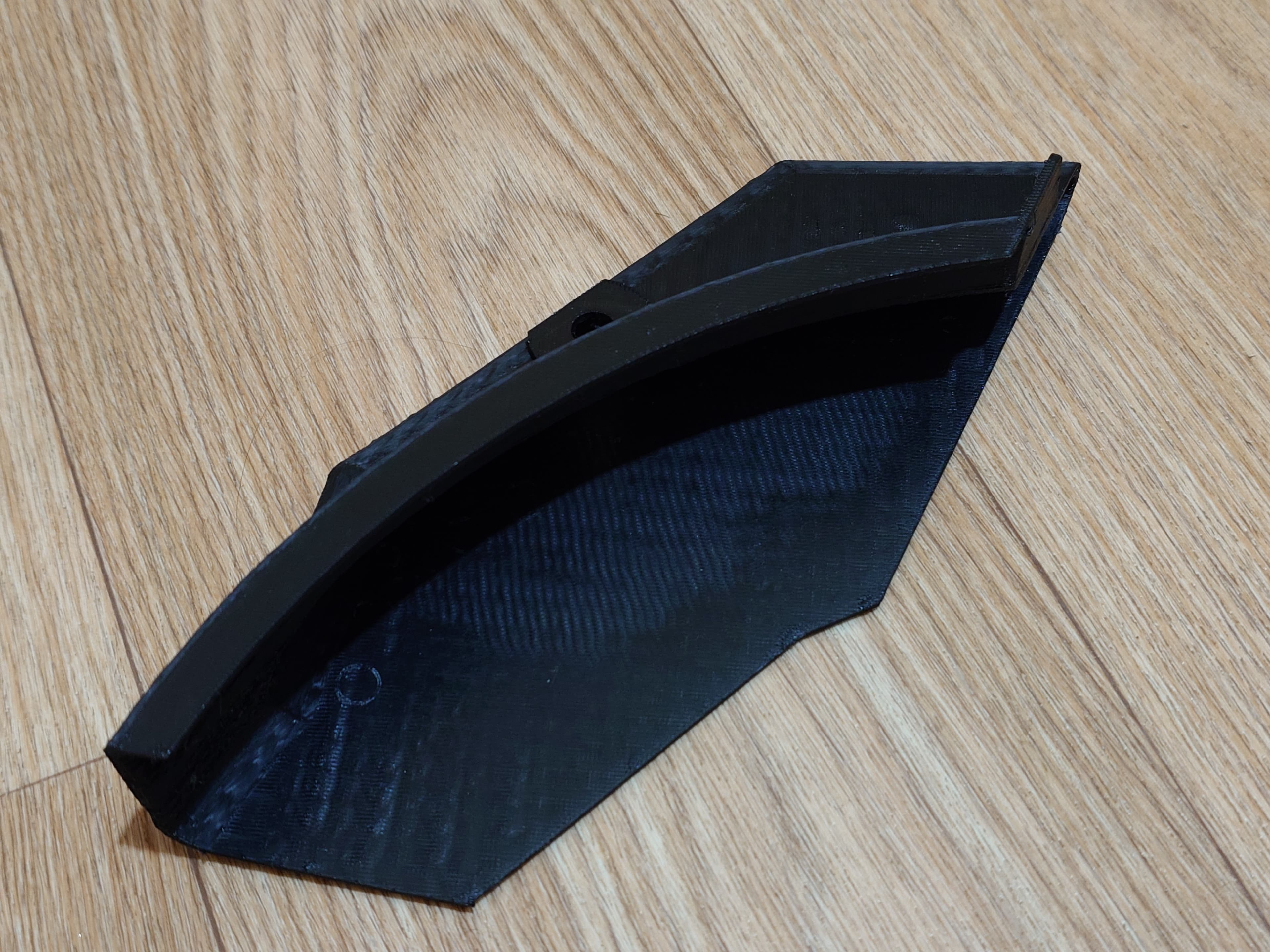

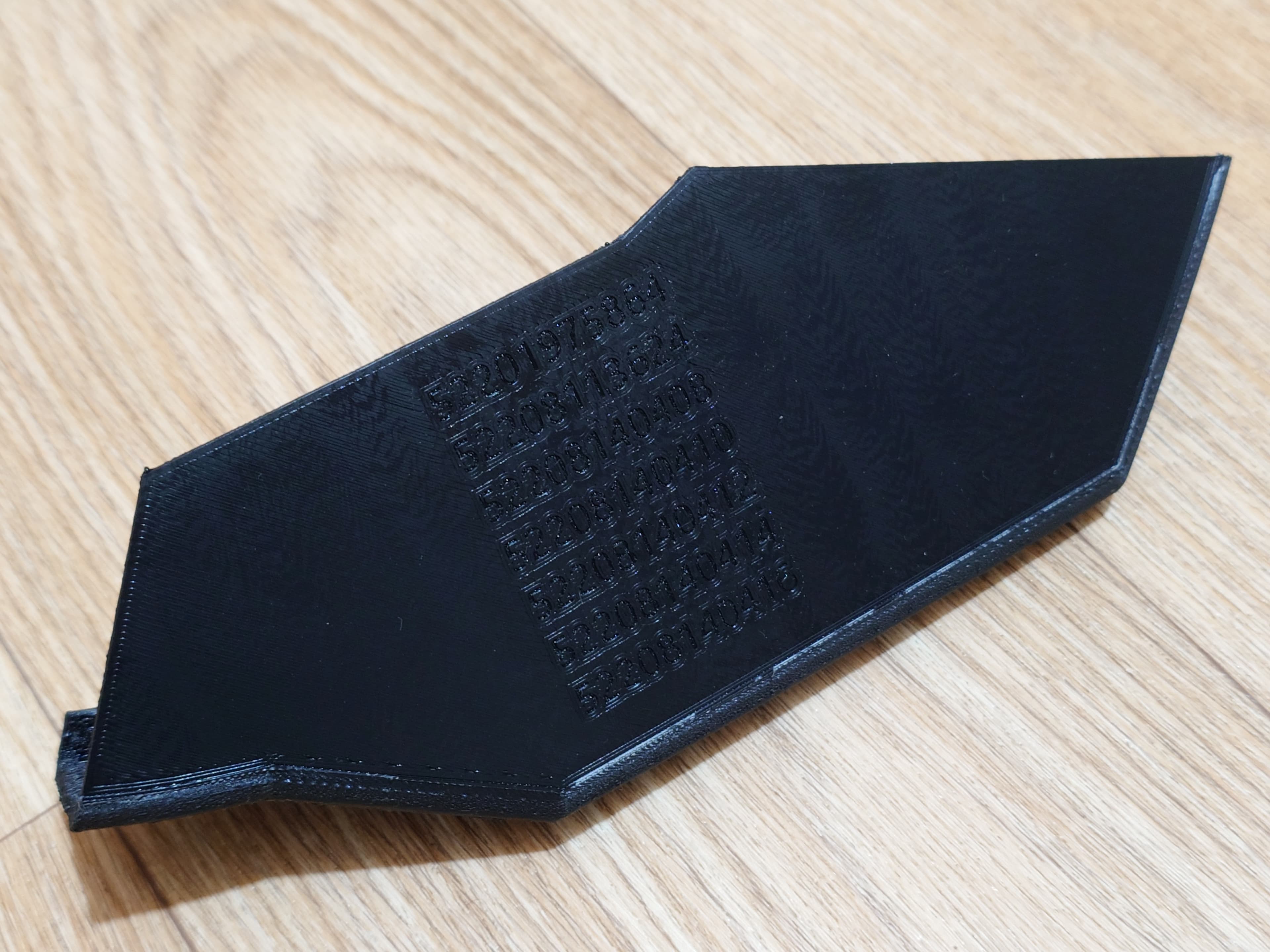

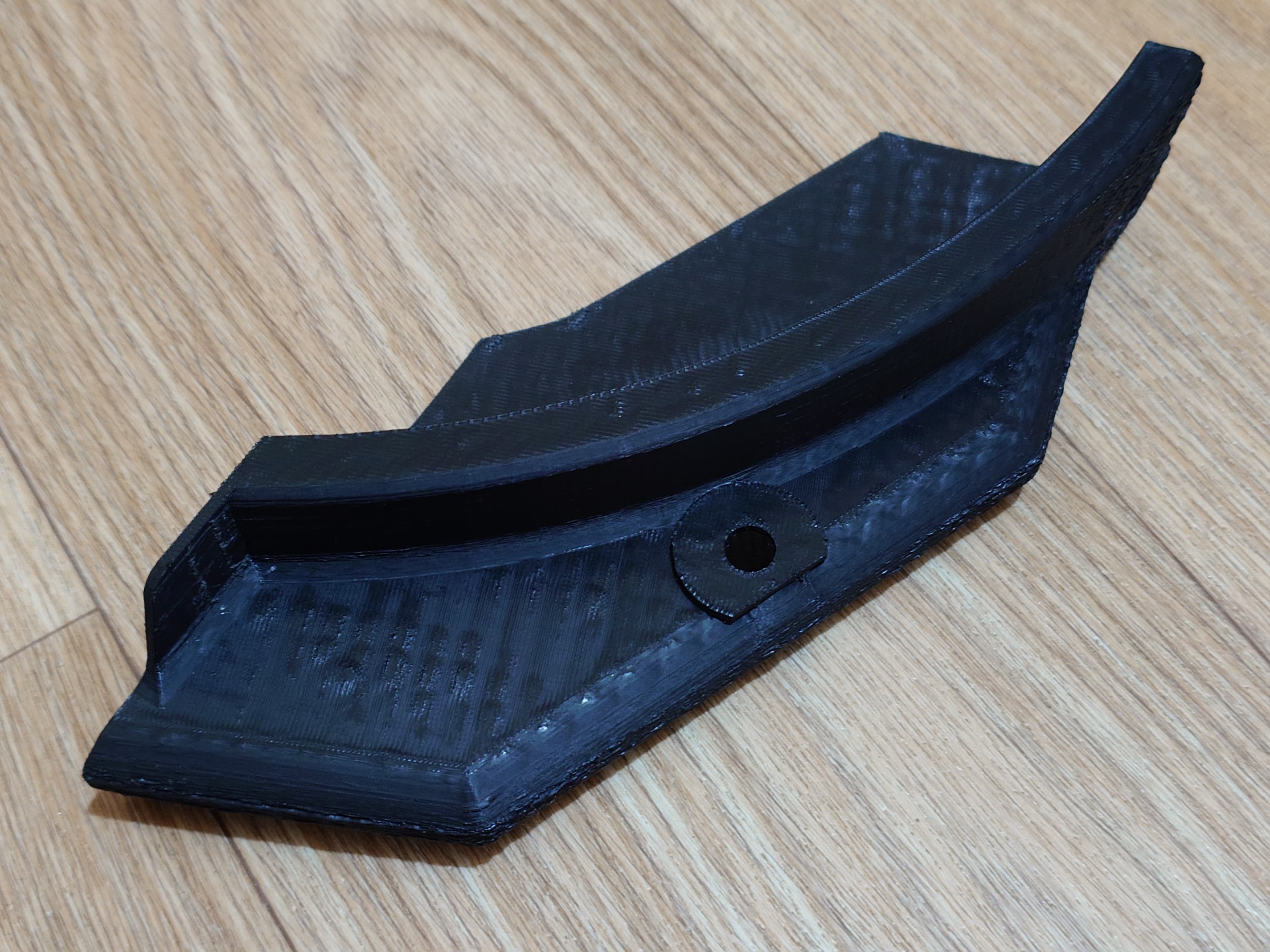

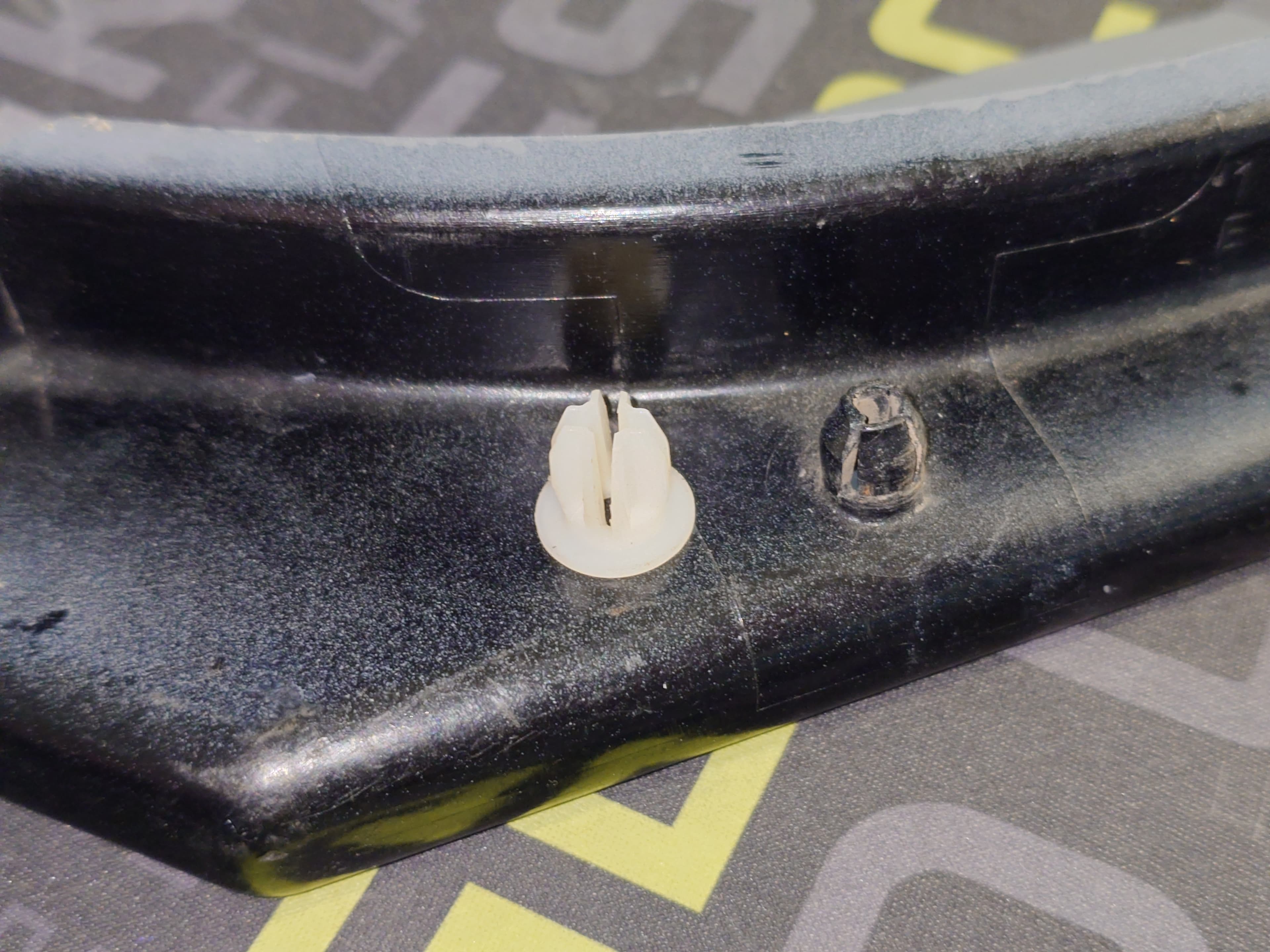

BY SLEXLeft and right body-side angle covers for the adjustable/split rear-seat configuration of the BMW E32, physically shown loose and installed by the creator. The paired files reproduce the cataloged left/right covers in black, crimson, silver gray, light silver gray, ultramarine and parchment variants; exact color must be selected or finished to match the vehicle. Installation uses expanding rivet 61131382239, but that separate fastener is not assigned as an OEM number for the printed covers.
