Heater-Valve Cover

REPLACES OEM64111383499

ABS · Nylon1 FILECC-BY-NC-SAMechanical

PART RECORDREF 1434

PART: Heater-Valve Cover
OEM: 64111383499
FITS: 8 Series E31

Loading 3D viewer...

PART ID · BIMMER-3D / 1434QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

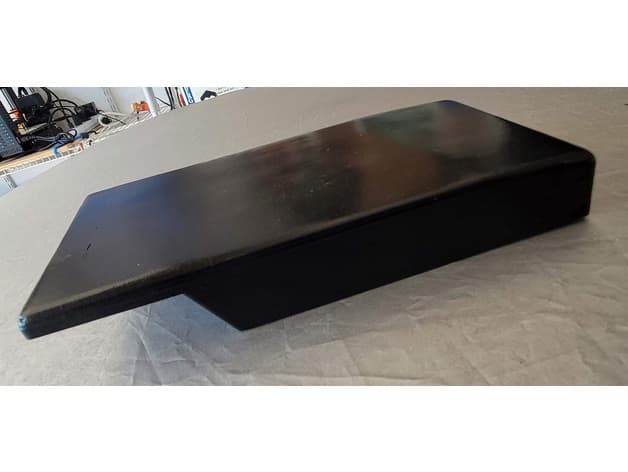

PLATE 01 / 02No caption recorded

Build sheet

MAN-1434

[01]E31_Heater_Cover.stlE31_Heater_Cover.stl.STL
[02]Bounding box156.000 × 83.000 × 23.000 mm
[03]Volume66,691.551 mm³

Field notes

BY TIM GAGE (QUILLSTA)

Thickened replacement cover for the BMW E31 heater/water-valve assembly, physically printed by the creator and reported to resist under-bonnet heat. The design uses 10 x 2 mm neodymium magnets against the valve fasteners. BMW catalogs identify the original separately serviced cover as 64111383499 for E31 840i/840Ci, 850i/850Ci and 850CSi; genuine production ended in 2015 with no documented supersession. Use high-temperature material, secure the magnets, and confirm hose, wiring and bonnet clearance after installation.

View original source ↗
