Headlamp-Bucket Joint Sleeve Set

REPLACES OEM63121392066
ABS · Nylon · PETGMULTI-PART1 FILECC-BYLights
PART RECORDREF 1433
PART
Headlamp-Bucket Joint Sleeve Set
OEM
63121392066
FITS
8 Series E31
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1433QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1433
  • [01]e31_bmw_headlight_bucket_sleeves_v1.stl.STL
  • [02]Bounding box25.082 × 25.028 × 11.884 mm
  • [03]Volume541.161 mm³
Field notes
BY TIM GAGE (QUILLSTA)

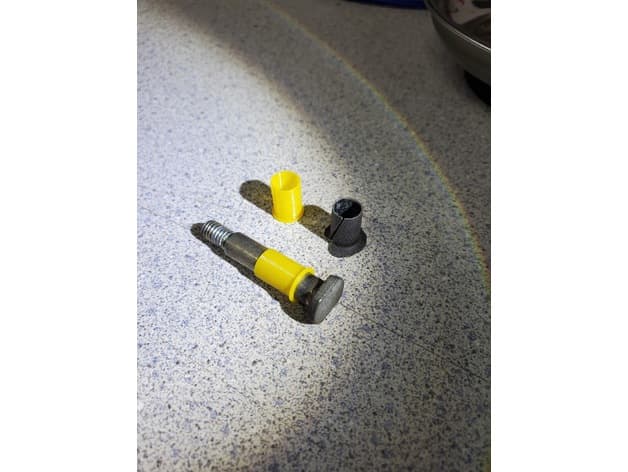

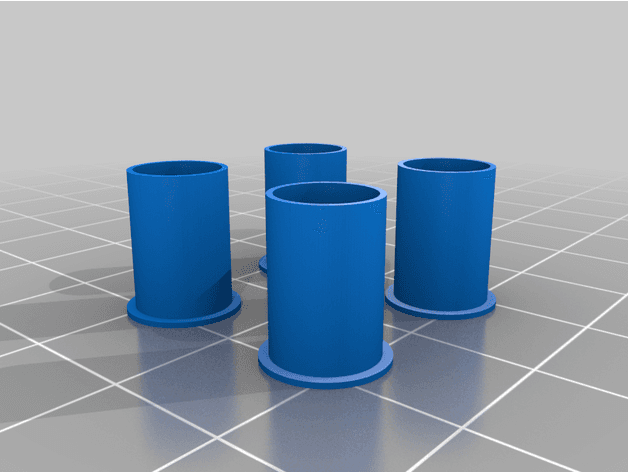

Four-print set of replacement fulcrum sleeves for the BMW E31 pop-up headlamp bucket, physically shown loose and installed at the upper bucket attachment by the creator after replacing warped original inserts. BMW catalogs identify the separately serviced joint sleeve as 63121392066, position 13 in the headlamp component diagram and six per vehicle. Print in heat-resistant material, replace all damaged sleeves, then verify bucket retention and have headlamp aim checked before night driving.
