Manual-Sunroof Crank Knob

ABS · PETG1 FILECC-BY-NC-SAInterior

PART RECORDREF 1324

PART: Manual-Sunroof Crank Knob
OEM: —
FITS: 5 Series E28

Loading 3D viewer...

PART ID · BIMMER-3D / 1324QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

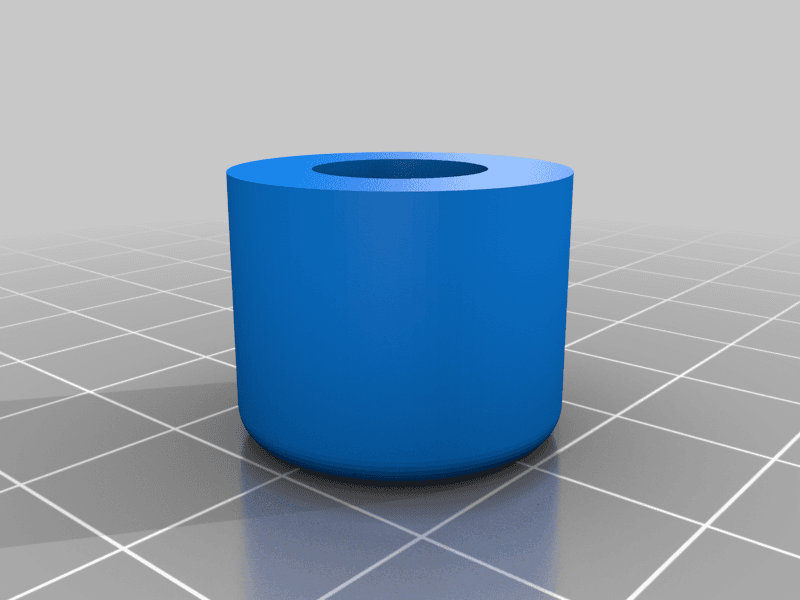

PLATE 01 / 02No caption recorded

Build sheet

MAN-1324

[01]bemminnipa.stlbemminnipa.stl.STL
[02]Bounding box20.000 × 19.990 × 16.000 mm
[03]Volume4,505.921 mm³

Field notes

BY SANTERI KOIVULA (MYSTEERIMAN)

Replacement rotating knob/head for the manual sunroof crank of a BMW E28. The creator printed the part in PLA; PETG or ABS is preferable for a hot cabin. BMW catalogs supply the knob only with the complete crank handle, so no parent-assembly number is assigned. Confirm crank-pin diameter, trim color and production-date variation before fitting.

View original source ↗
