Front Strut-Mount Cover Cap

REPLACES OEM31331124335

PETG1 FILECC-BY-NC-SAMechanical

PART RECORDREF 1331

PART: Front Strut-Mount Cover Cap
OEM: 31331124335
FITS: 5 Series E28

Loading 3D viewer...

PART ID · BIMMER-3D / 1331QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

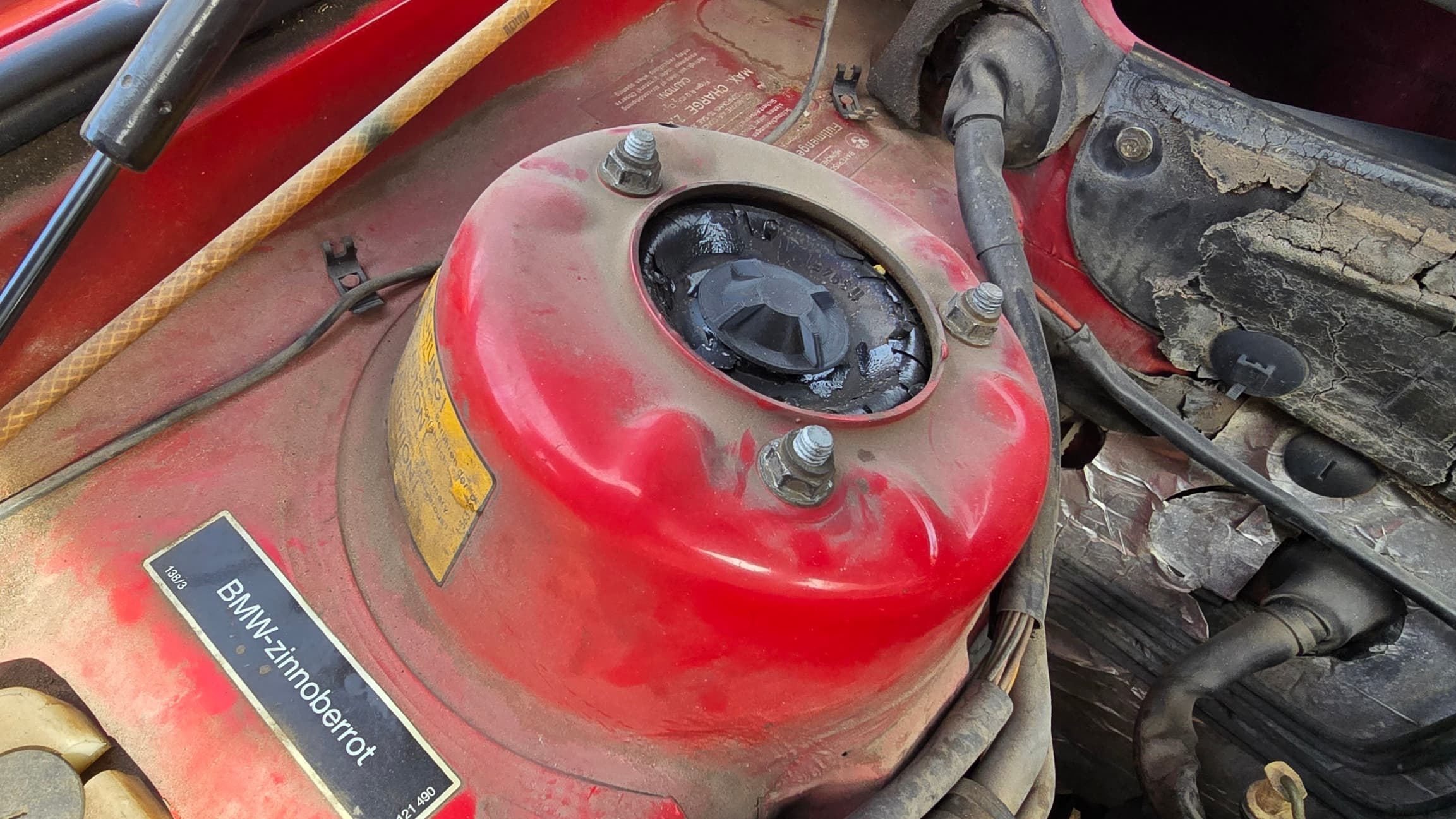

PLATE 01 / 02No caption recorded

Build sheet

MAN-1331

[01]e28_strutmountcap.stle28_strutmountcap.stl.STL
[02]Bounding box41.248 × 41.247 × 18.000 mm
[03]Volume5,099.068 mm³

Field notes

BY GJKTAYLOR

Protective cap for the top of the front strut mount on BMW E28 models. The creator printed it in PETG and road-tested the design for 5,000 miles before release. BMW catalogs identify the equivalent 28.5 mm covering cap as 31331124335; do not confuse it with the separate dust-protection collar 31331110196. Verify top-nut and mount dimensions before use.

View original source ↗
