4×6 Front-Speaker Cover Spacer
ABS · PETGMULTI-PART2 FILESCC-BYInterior
- PART
- 4×6 Front-Speaker Cover Spacer
- OEM
- —
- FITS
- 5 Series E28
Loading 3D viewer...
PART ID · BIMMER-3D / 1320QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
PLATE 01 / 04No caption recorded
Build sheet

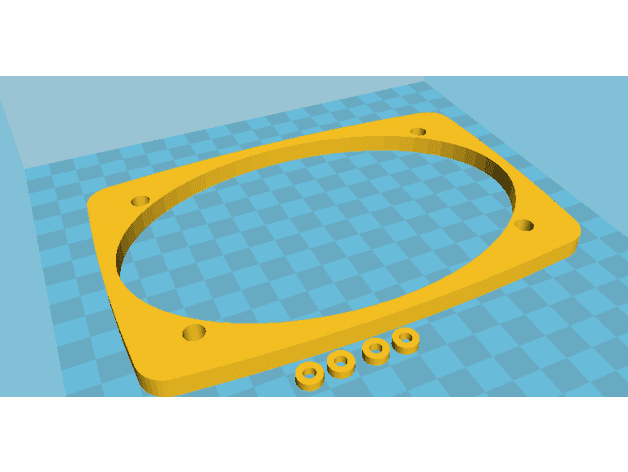

MAN-1320- [01]4X6_Spacer.STL4X6_Spacer.STL.STL

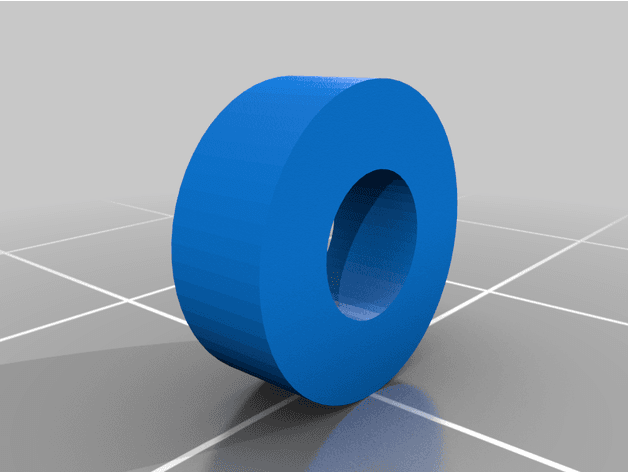

- [02]Washer.STLWasher.STL.STL
- [03]Bounding box173.359 × 110.837 × 7.500 mm
- [04]Volume39,031.595 mm³
Field notes

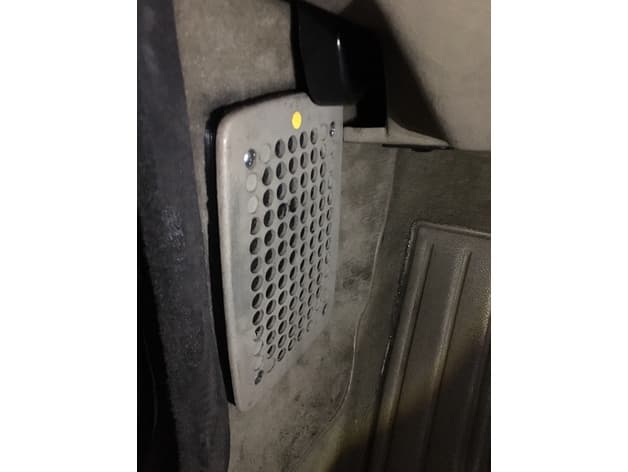

BY BRENT BOT (BREBOT)Spacer and washer for fitting an upgraded 4×6-inch front speaker in a BMW E28 while retaining the original speaker cover. The creator confirms that the hood-release lever still clears the speaker and specifies longer #8×1.25-inch oval-head screws with #6-32 speed nuts. Check speaker depth and fastener clearance before final assembly.
