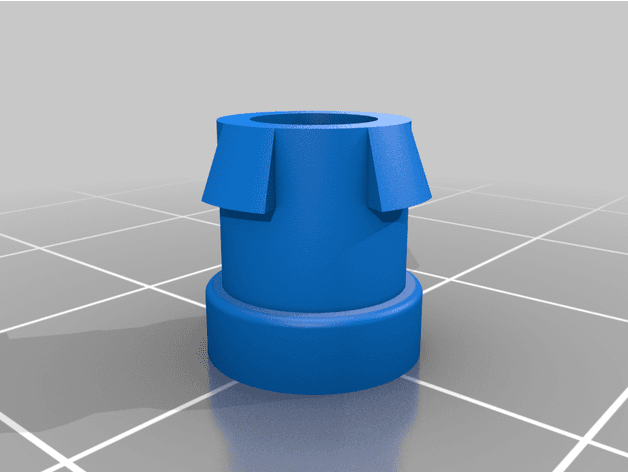

Seat-Rail Grommet Pair

REPLACES OEM52101807432 · 52208238999

PETG · TPUMULTI-PART2 FILESCC-BYSeats

PART RECORDREF 1077

PART: Seat-Rail Grommet Pair
OEM: 52101807432, 52208238999
FITS: 3 Series E21

Loading 3D viewer...

PART ID · BIMMER-3D / 1077QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

10 PLATES

PLATE 01 / 10No caption recorded

Build sheet

MAN-1077

[01]4.stl4.stl.STL
[02]5.stl5.stl.STL

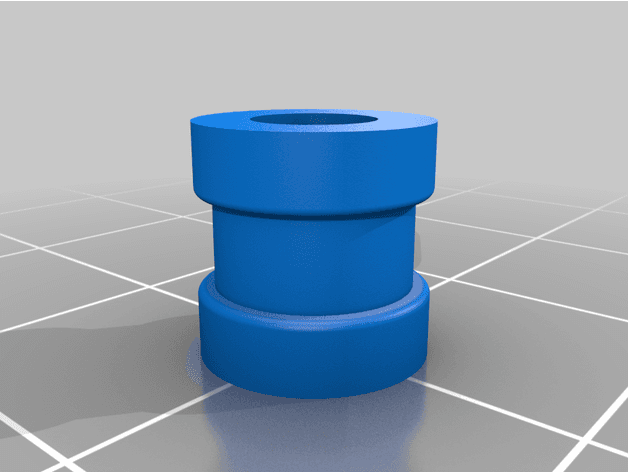

[03]Bounding box16.399 × 8.200 × 8.200 mm
[04]Volume463.133 mm³

Field notes

BY SIMON S (SLEPIK)

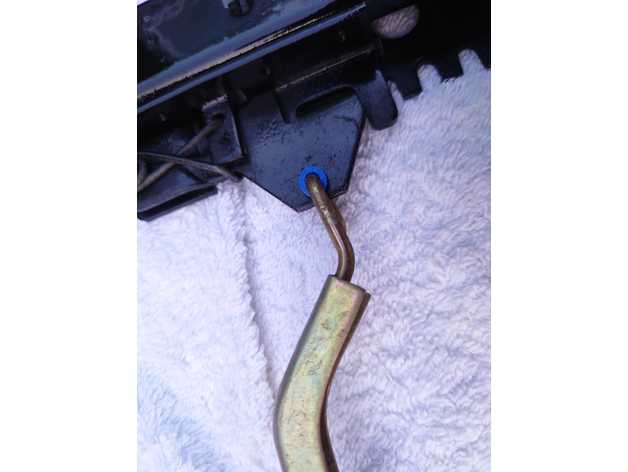

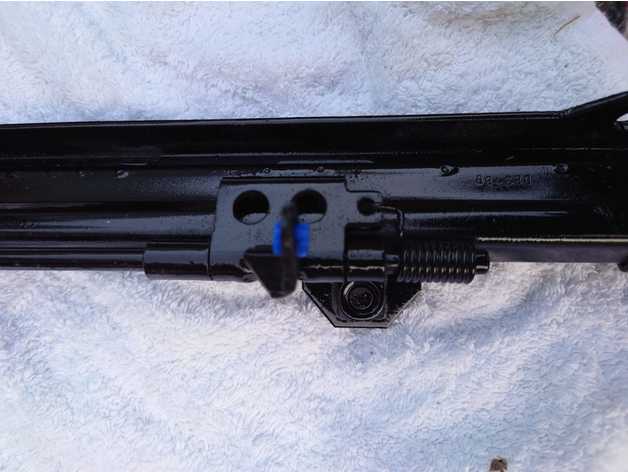

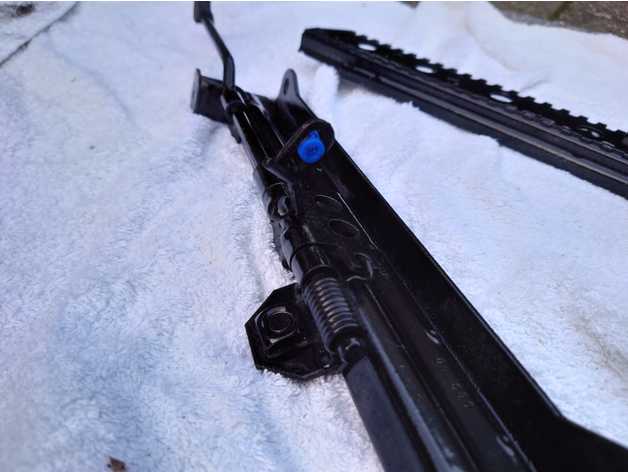

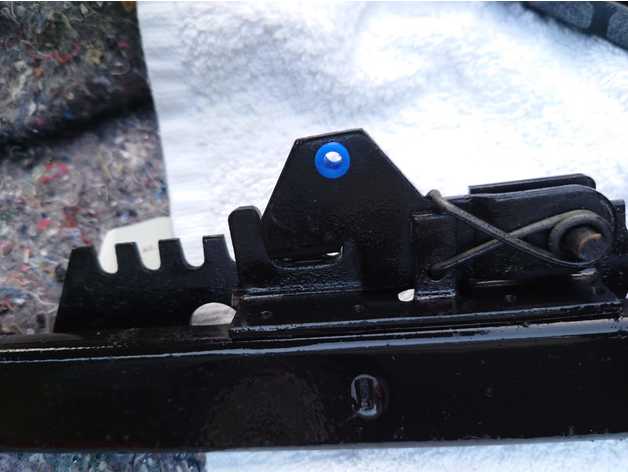

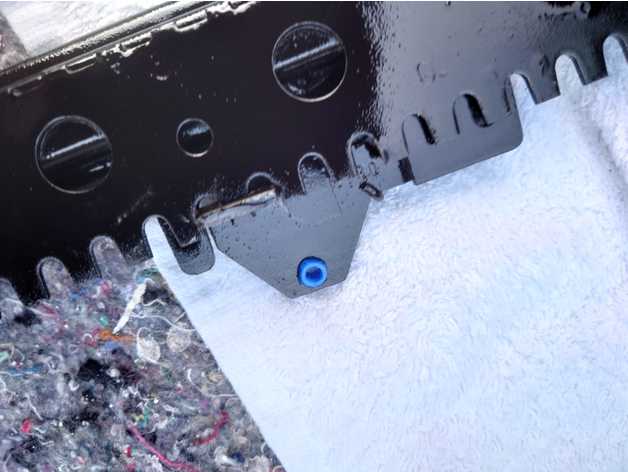

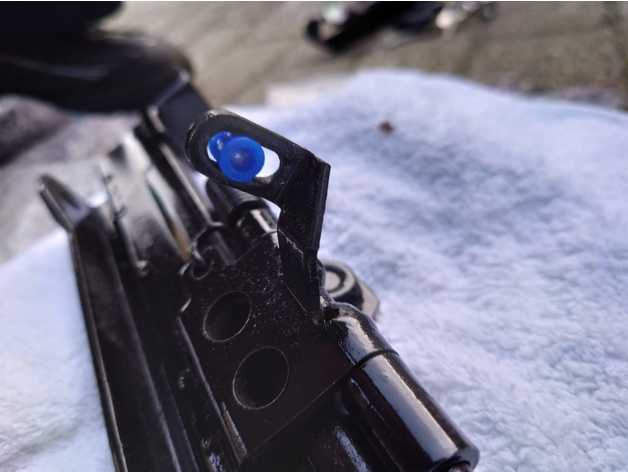

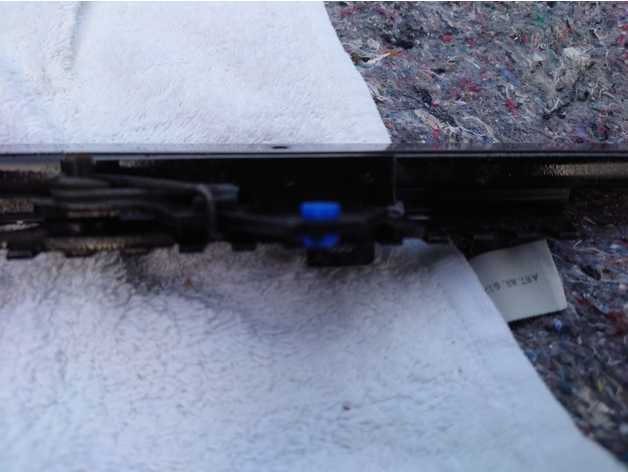

Two replacement seat-rail grommets tested on a European July 1982 BMW E21 323i. The filenames reproduce the two catalog shapes for BMW 52101807432 and 52208238999. Confirm seat-rail version, market and grommet position before installation.

View original source ↗
