Moonroof Slider

ABS · NylonMULTI-PART2 FILES0 DOWNLOADSPublic DomainCabin trim, cargo & roof

PART RECORDREF 1084

PART: Moonroof Slider
OEM: —
FITS: 3 Series E21

Loading 3D viewer...

PART ID · BIMMER-3D / 1084QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

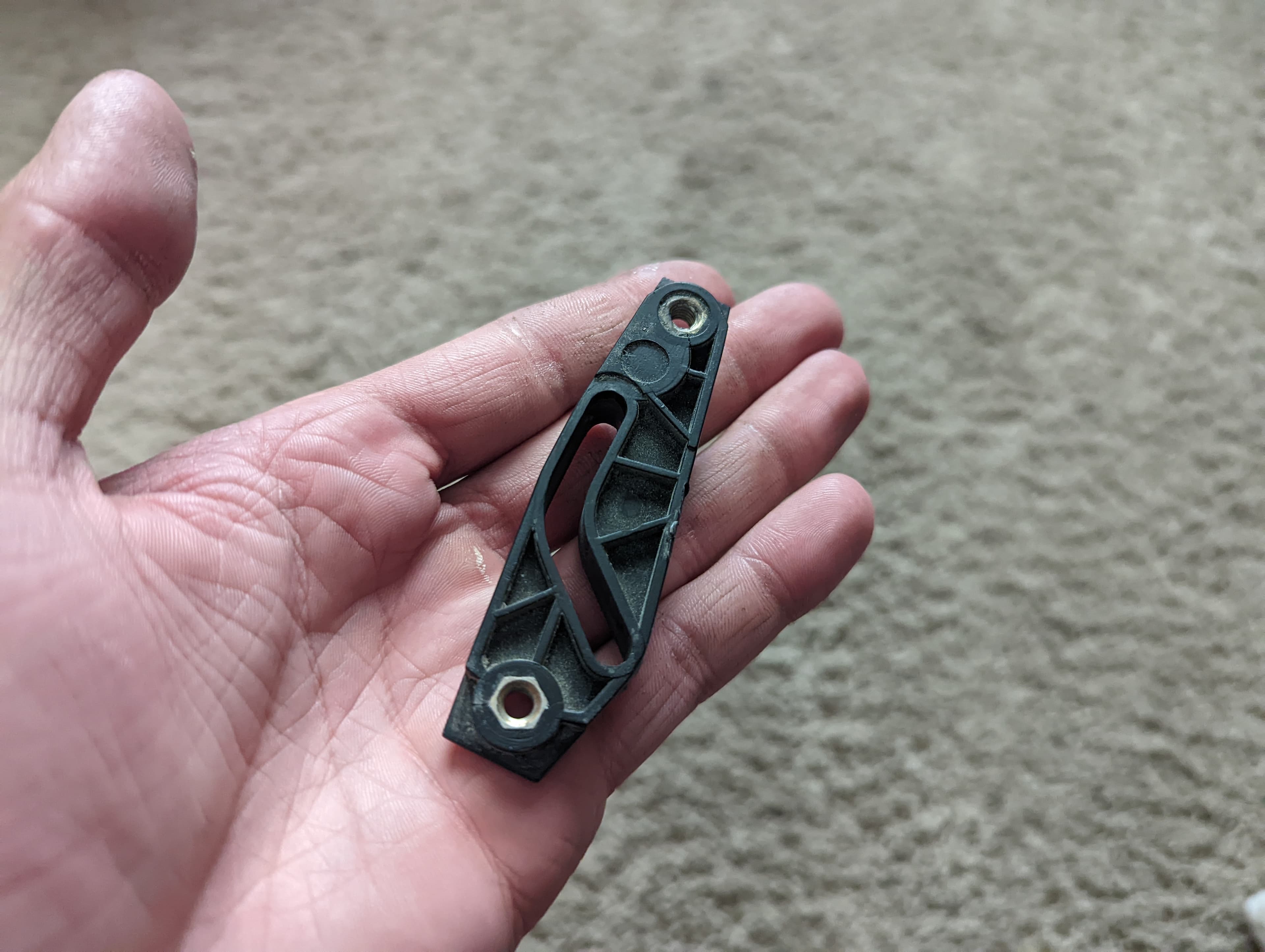

PLATE 01 / 02No caption recorded

Build sheet

MAN-1084

[01]bmw-e21-moonroof-slider.stepbmw-e21-moonroof-slider.step.STL
[02]bmw-e21-moonroof-slider.stlbmw-e21-moonroof-slider.stl.STL
[03]Bounding box84.856 × 51.362 × 12.500 mm
[04]Volume24,122.6 mm³

Field notes

BY OGRE_CUBES

Replacement moonroof slider developed and physically tested for a 1981 BMW E21 320is; the creator expects fit on E21 320 models equipped with a moonroof. Uses two M5 nuts instead of heat-set inserts. Confirm roof cassette, slider travel, nut capture and full open/close operation.

View original source ↗
