Dual 52 mm Ashtray Gauge Pod

ABS · PETG1 FILE0 DOWNLOADSCC-BYDashboard & controls

PART RECORDREF 1539

PART: Dual 52 mm Ashtray Gauge Pod
OEM: —
FITS: Z4 E85 / E86

3D preview unavailable. Original files are available after signing in.

PART ID · BIMMER-3D / 1539QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

Dual 52 mm Ashtray Gauge Pod — image 1 of 3

PLATE 01 / 03No caption recorded

Build sheet

MAN-1539

[01]ashtray_panel_53mm_fusion_Final.objashtray_panel_53mm_fusion_Final.obj.STL

Field notes

BY PAUL WALLNER (SIRNETHER)

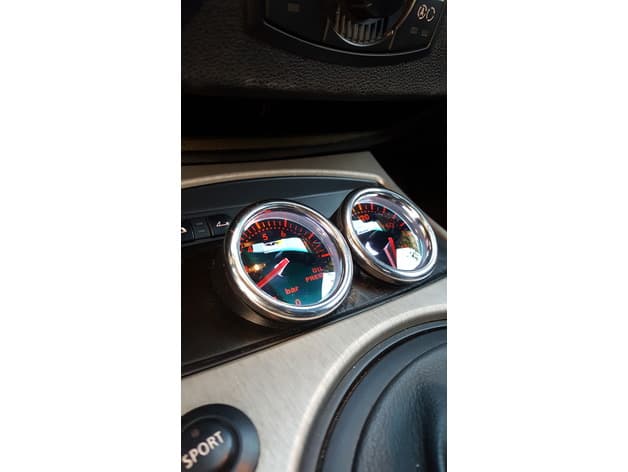

Ashtray-panel replacement for two 52 mm gauges, shown physically installed. Installation requires trimming the original ashtray carrier; confirm gauge depth, wiring, shifter and control clearance, fuse any added electrical circuits and keep all warning lamps and controls visible.

View original source ↗
