Door Trim Clip

ABS · PETG1 FILECC-BY-SATrim Clips

PART RECORDREF 1182

PART: Door Trim Clip
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1182QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1182

[01]door-trim-clip-bmw-e46.stldoor-trim-clip-bmw-e46.stl.STL
[02]Bounding box17.800 × 15.000 × 12.000 mm
[03]Volume1,296.027 mm³

Field notes

BY FULL-TIME MAKERS (COREELECTRONICS)

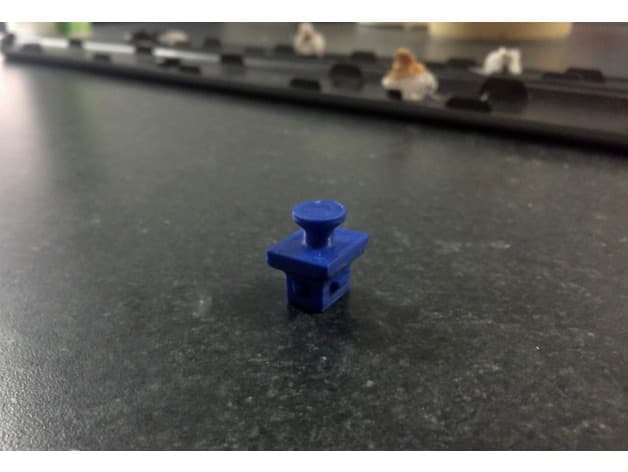

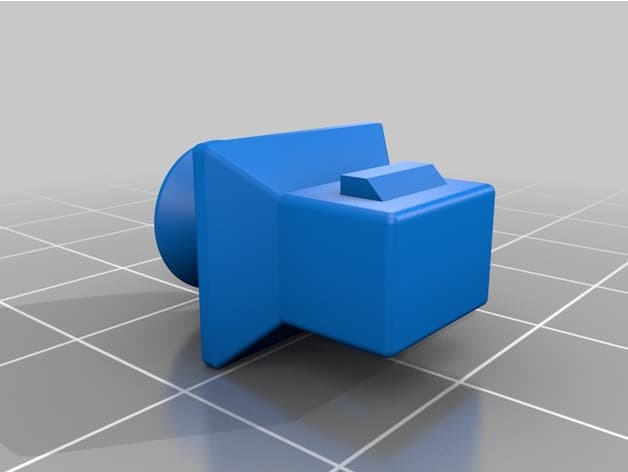

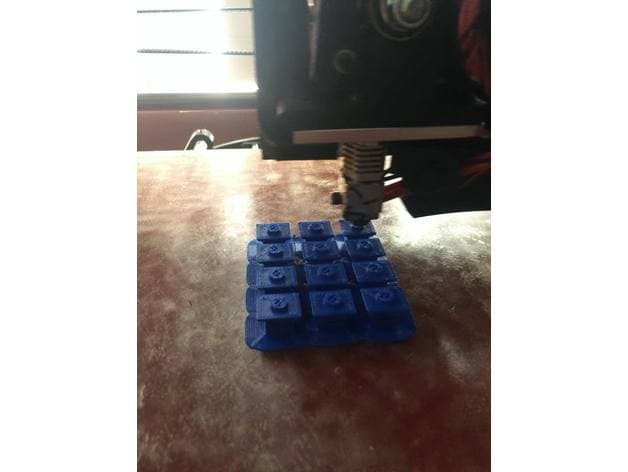

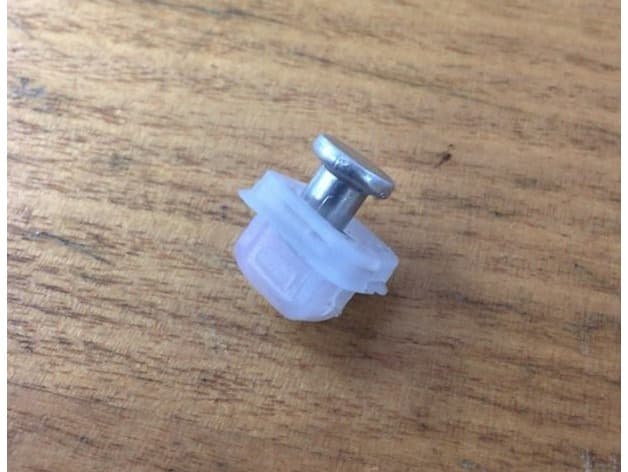

I recently got a new (used) BMW E46 and noticed the panels that run along the top of the door had been damaged by the previous owner. Took out one of the not damaged clips and remade it in Fusion 360, then printed a handful to replace on all the doors. Worked a charm! Use cabin-heat-resistant material, dry-fit the part and confirm secure retention and unobstructed operation.

View original source ↗
