Dashboard Cupholder Swivel Arm

ABS · PETG1 FILECC-BY-NC-SAInterior

PART RECORDREF 1544

PART: Dashboard Cupholder Swivel Arm
OEM: —
FITS: Z4 E85 / E86

Loading 3D viewer...

PART ID · BIMMER-3D / 1544QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1544

[01]CupHolder.stlCupHolder.stl.STL
[02]Bounding box101.332 × 29.706 × 18.400 mm
[03]Volume11,440.557 mm³

Field notes

BY JEROEN JONKMAN (JEROENJONKMAN)

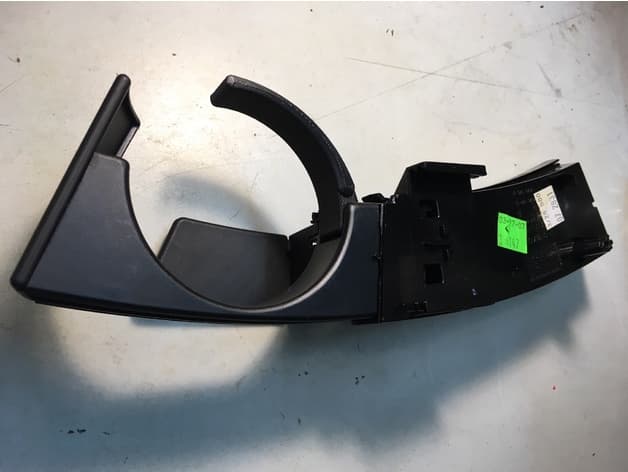

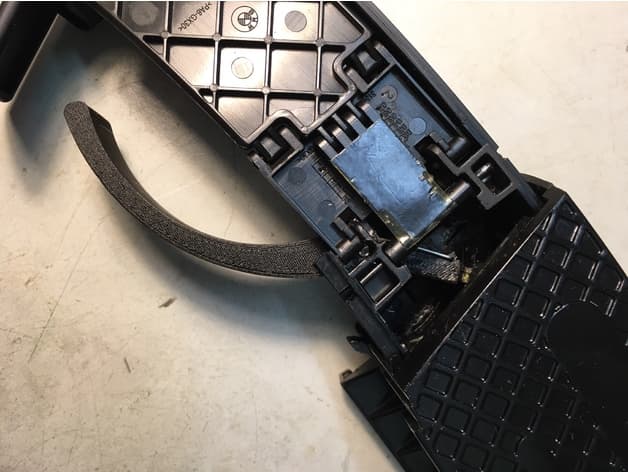

Replacement swivelling support arm for a broken dashboard cupholder, shown in the opened installed assembly and beside the original mechanism. Mirror the model for the opposite side. Verify smooth deployment, positive stowage and secure cup support without obstructing the vent or passenger airbag area.
