Cupholder-Replacement Storage Bin

ABS · Nylon · TPUMULTI-PART2 FILESCC-BY-NC-SAInterior
PART RECORDREF 1477
PART
Cupholder-Replacement Storage Bin
OEM
FITS
i4 G26
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1477QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1477
  • [01]BMW i4 Cupholder insert v11.step.STL
  • [02]BMW i4 Cupholder insert v11 Liner.step.STL
Field notes
BY WERKRAUM

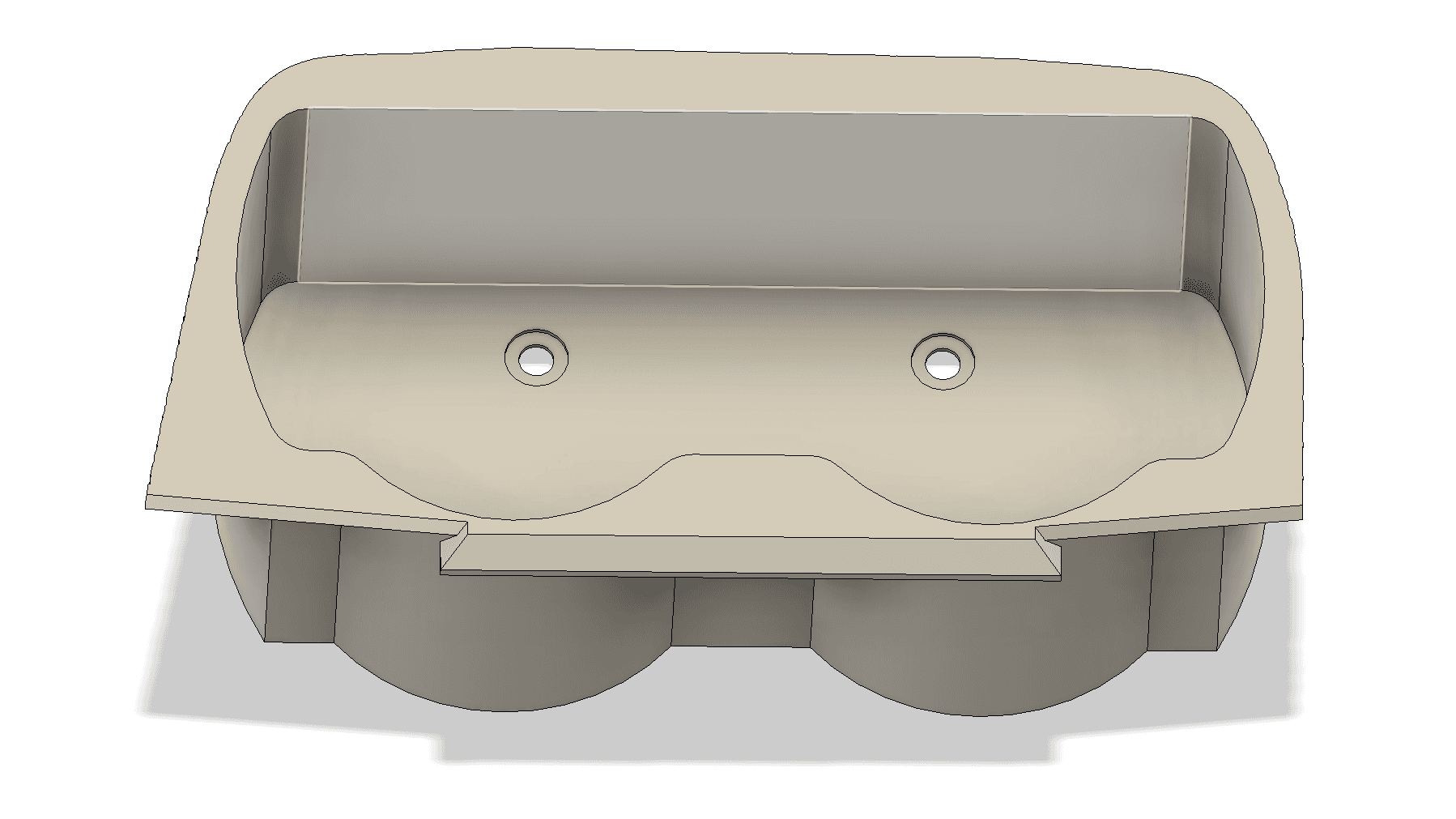

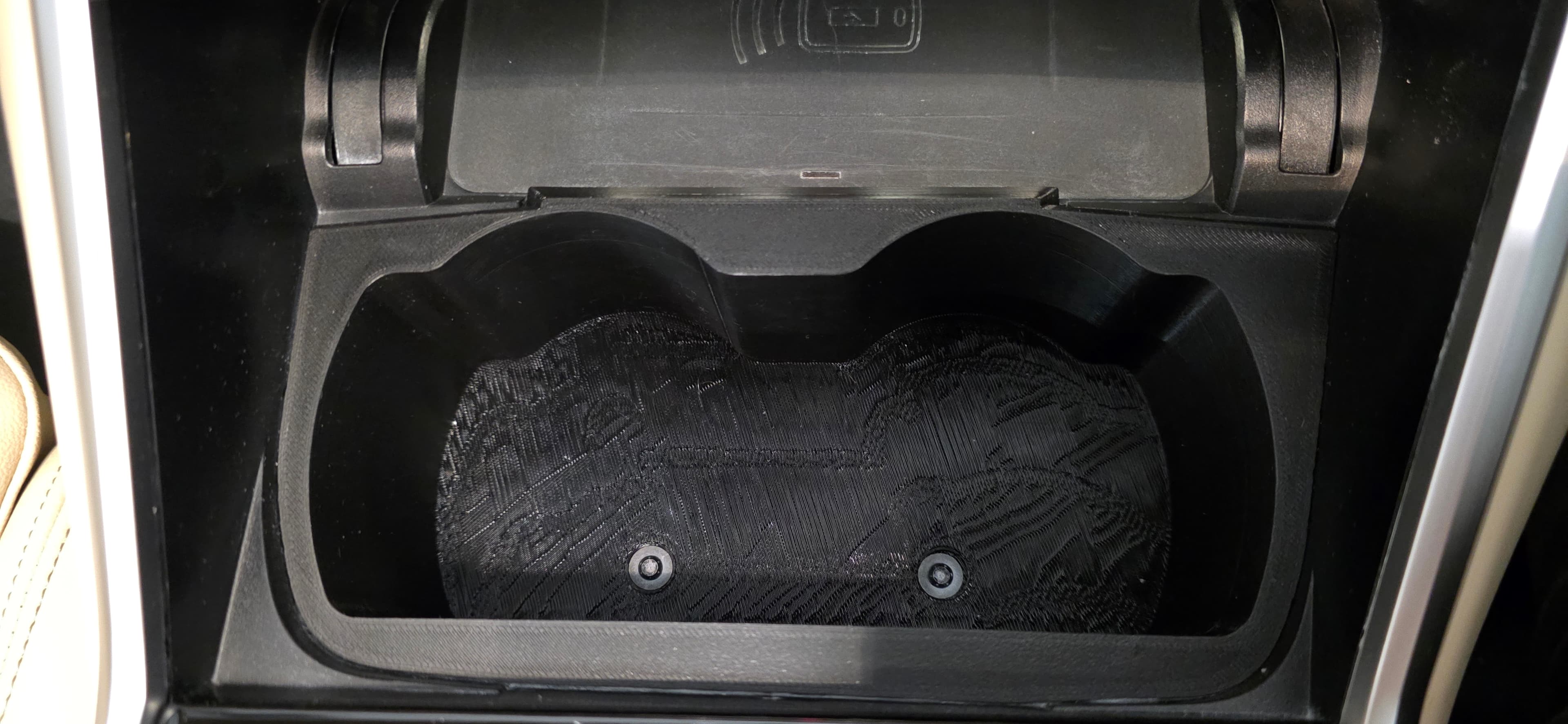

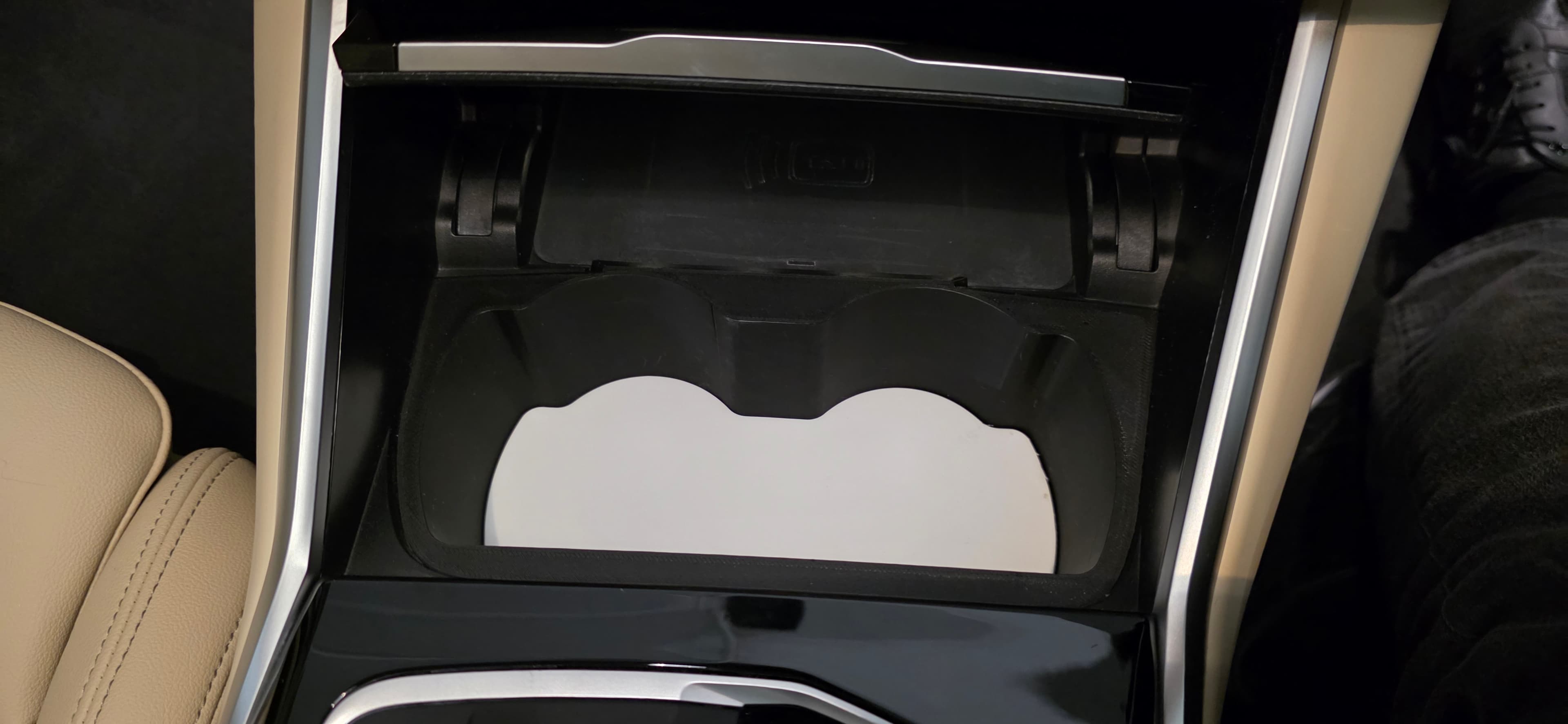

Large center-console storage bin that replaces the original cupholder after the cupholder and its USB and 12 V connections are removed. The creator scanned the exposed recess, shows the printed bin installed, and includes a separate flexible floor liner. This is a deliberate accessory conversion, not an equivalent reproduction of the powered cupholder assembly, so no cupholder or console parent number is assigned. Use cabin-heat-resistant rigid material for the bin and TPU for the optional liner; disconnect and secure the original electrical connectors safely, preserve the mounting screws, and verify stable installation and full console-cover clearance.
