BIMMER 3D PARTS
PART №1441
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026

Cup-Holder Can Adapter

ABS · Nylon2 FILESCC-BY-NCInterior
PART RECORDREF 1441
PART
Cup-Holder Can Adapter
OEM
FITS
X1 U11
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1441QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1441

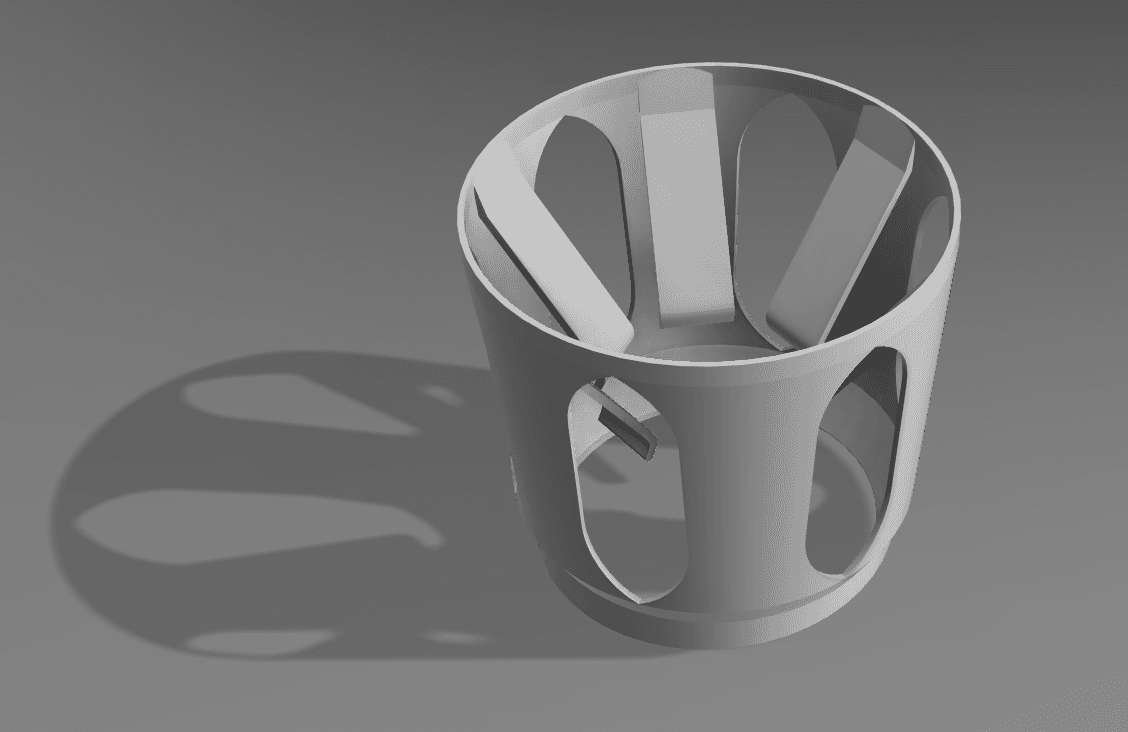

  • [01]iX1 Cupholder v7.3mf.STL
  • [02]iX1 Cupholder v7.stl.STL
  • [03]Bounding box87.000 × 87.000 × 75.900 mm
  • [04]Volume22,866.826 mm³
Field notes
BY GLUECKSRITTER18

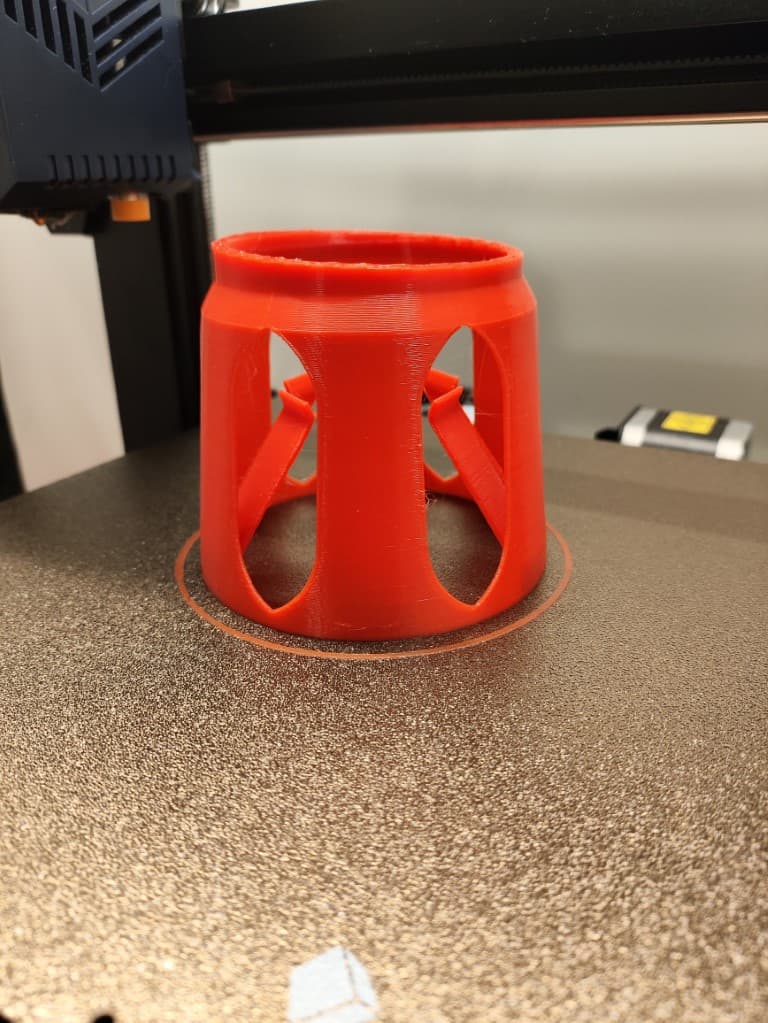

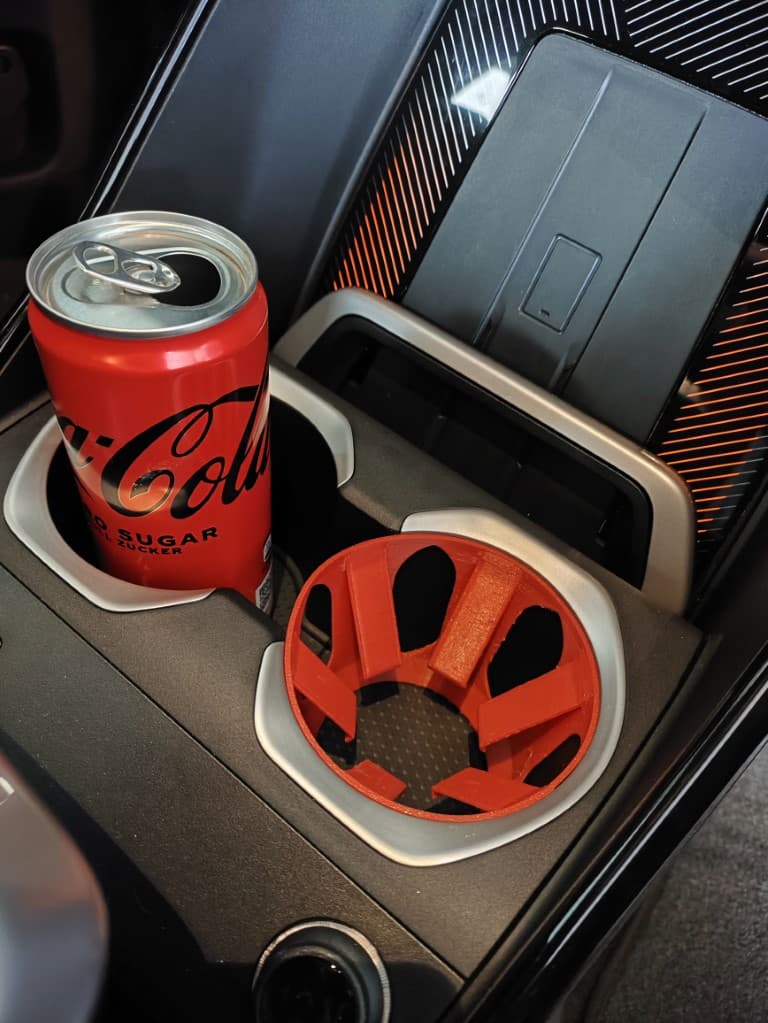

Removable insert for the center-console cup position that keeps 330 ml and 500 ml cans stable. The creator designed and physically tested version 7 in an iX1 U11, shows it installed with a can, and notes that the sloped base must be rotated until it seats correctly. The STL and matching 3MF are retained. This is an accessory rather than a separately serviced BMW component, so no cup-holder or console parent number is assigned. Print in ASA, ABS, PETG or another cabin-temperature-resistant material rather than PLA; verify stable seating and clear access to adjacent controls before driving.
