Coupe Front Speaker Reduction Adapter

ABS · PETG1 FILECC-BY-NC-SADoors

PART RECORDREF 1229

PART: Coupe Front Speaker Reduction Adapter
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1229QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

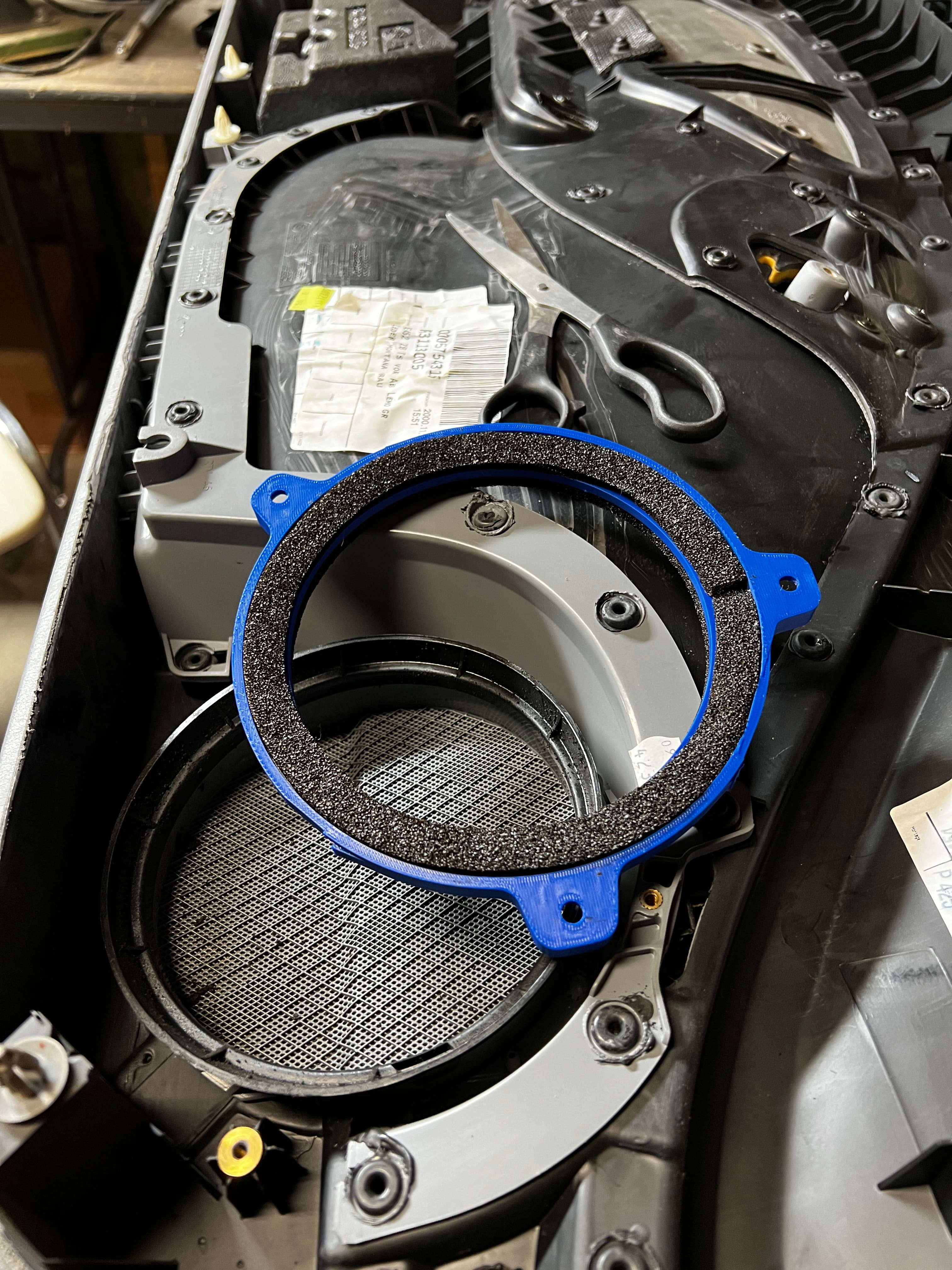

PLATE 01 / 05No caption recorded

Build sheet

MAN-1229

[01]e46-speaker-mount-final-design.stle46-speaker-mount-final-design.stl.STL
[02]Bounding box178.943 × 162.885 × 9.325 mm
[03]Volume42,417.052 mm³

Field notes

BY YEAWRONGPERSON

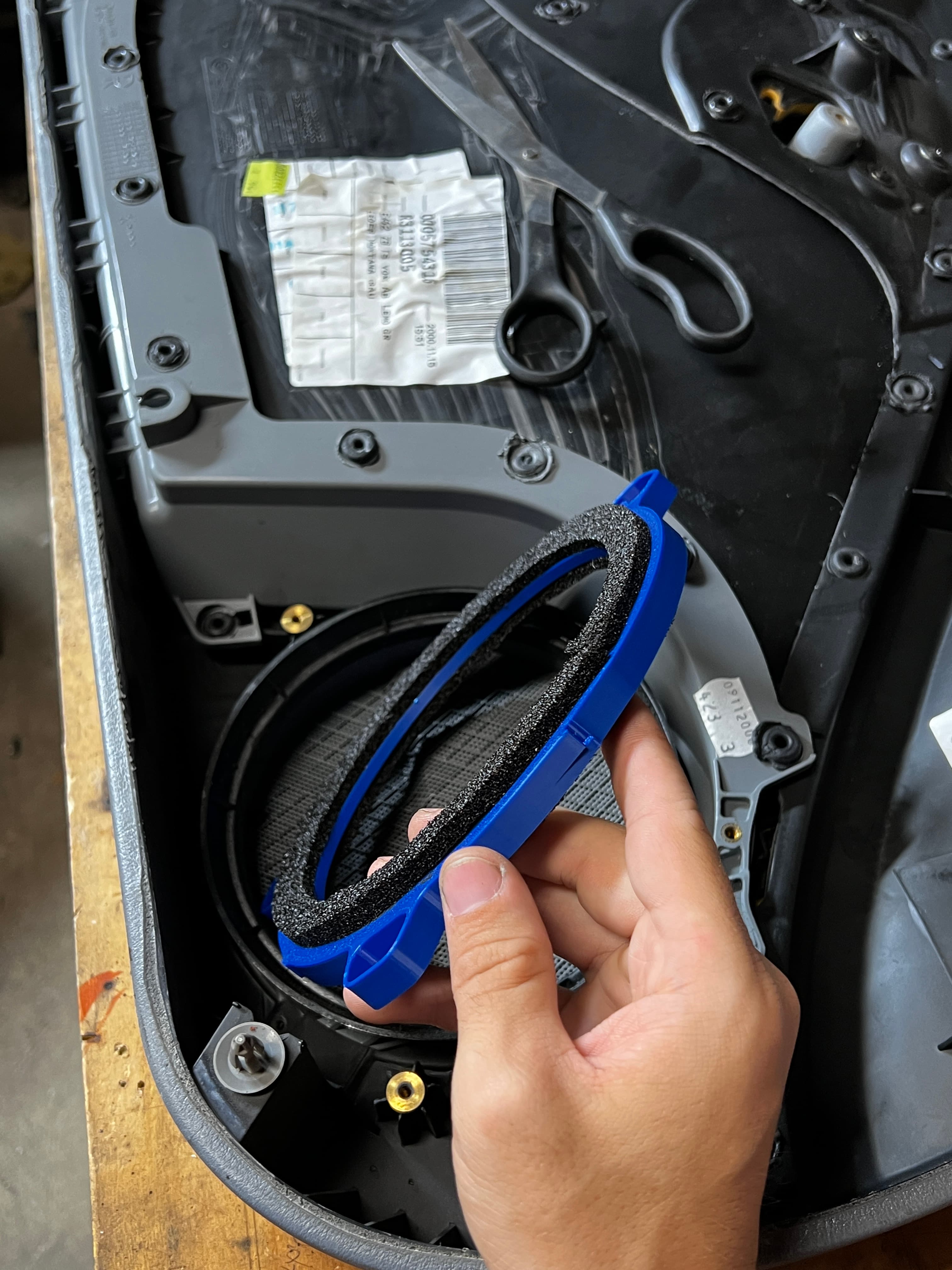

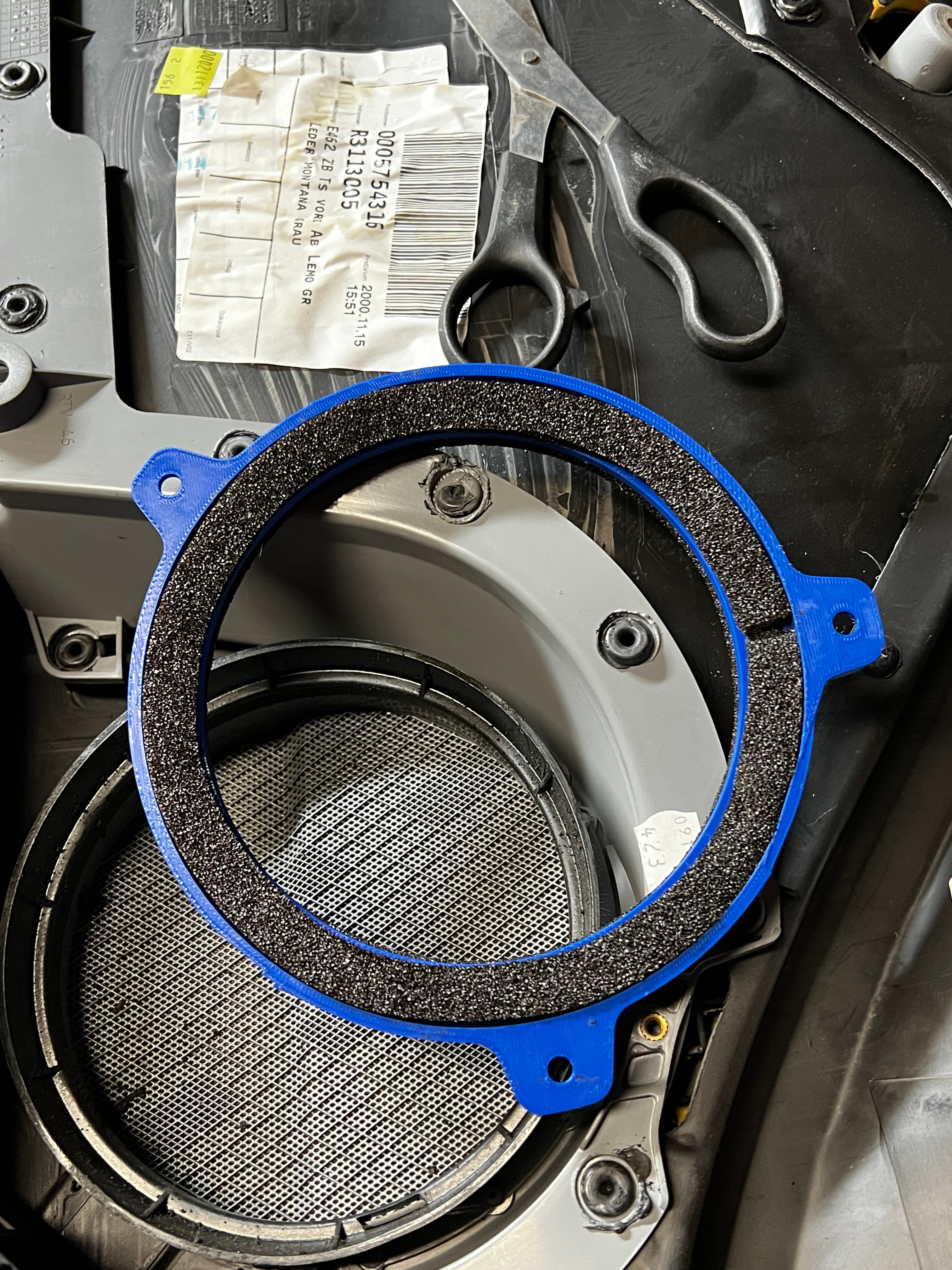

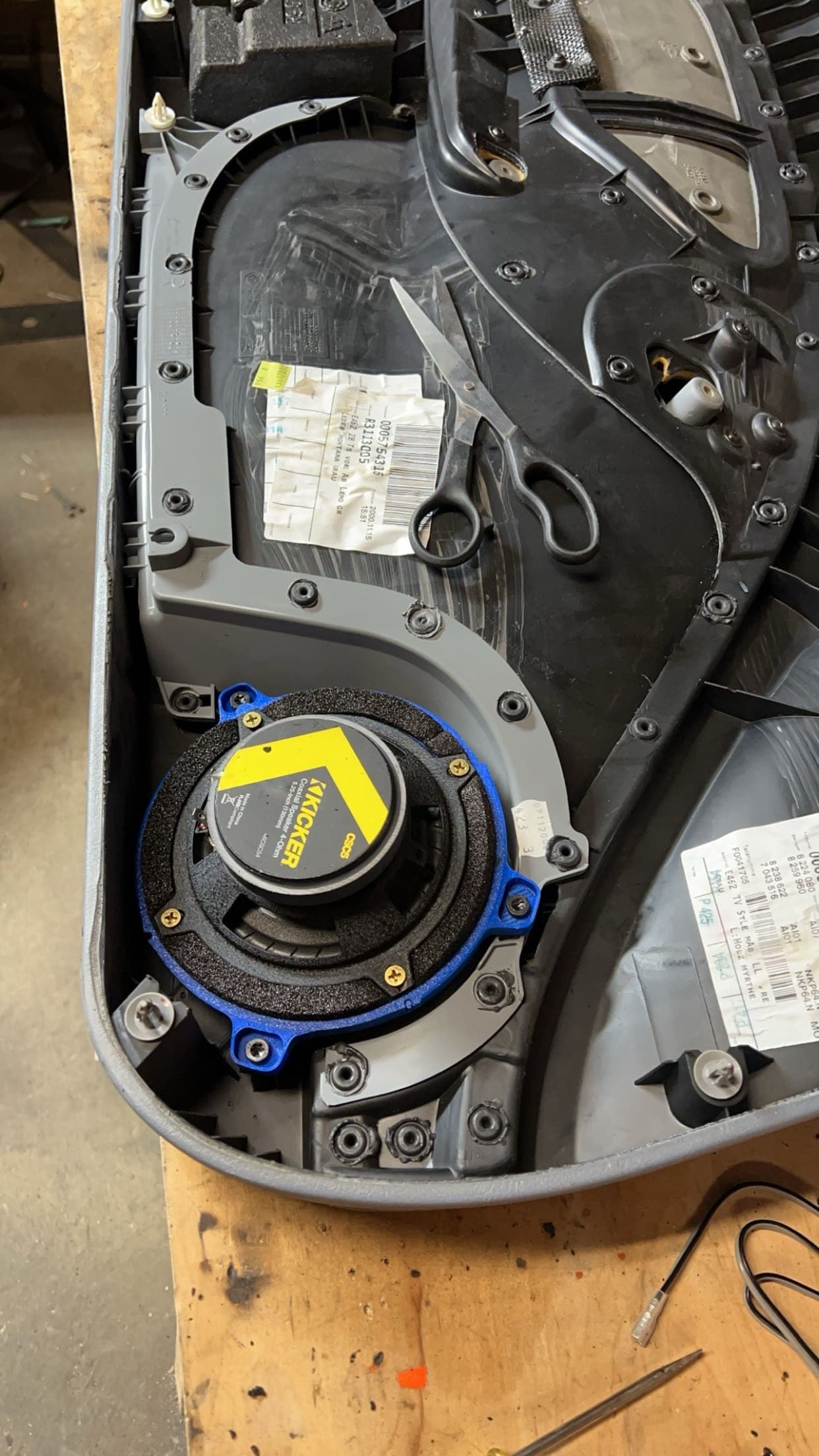

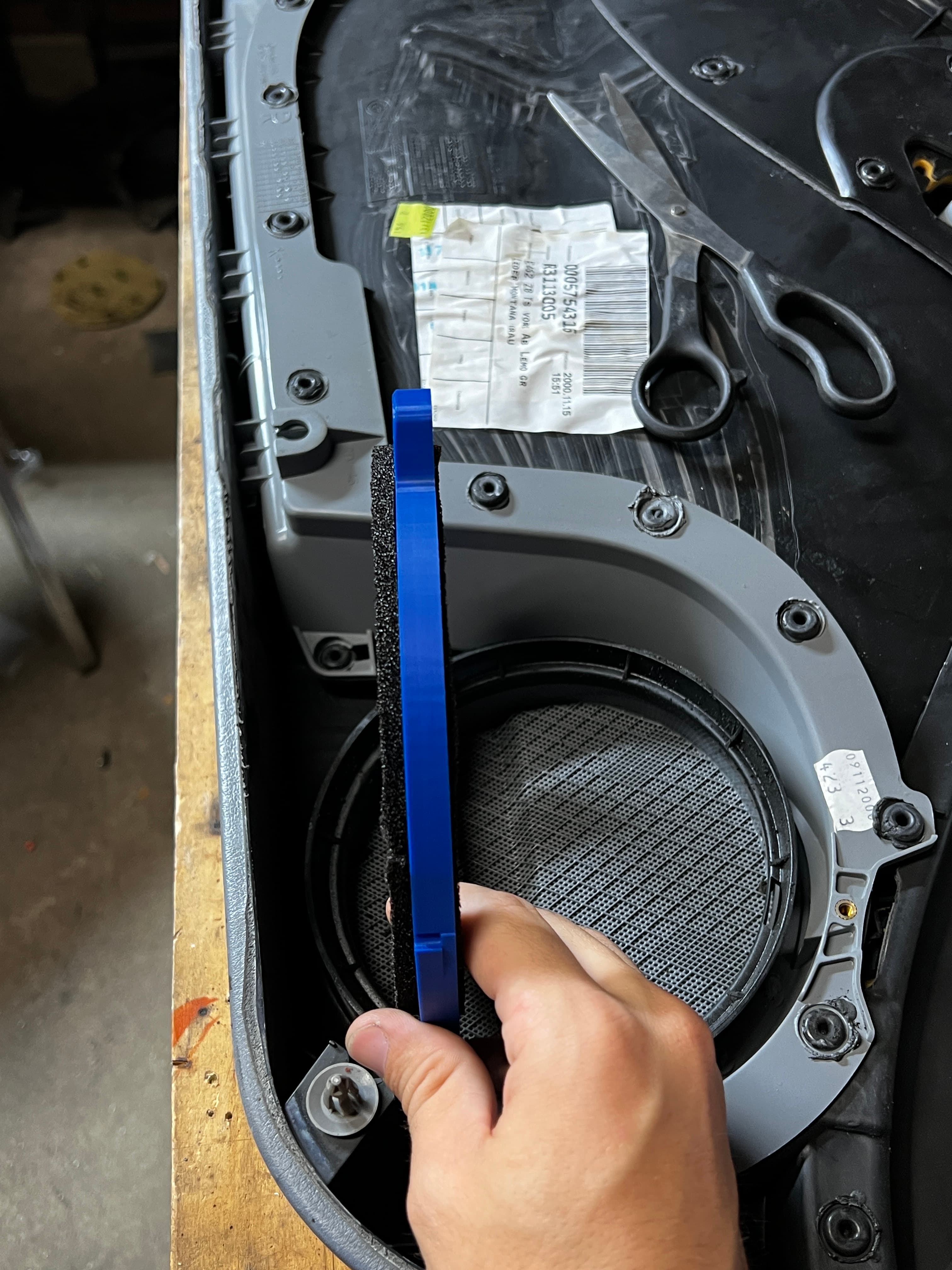

Front-door reduction adapter physically used in an E46 325Ci Coupe to install a 5.25-inch Kicker speaker in the factory 6.5-inch position. The source shows the printed ring, driver assembly and door fitment. Use sealing foam as documented and verify cone, magnet, wiring, window and door-trim clearance before fastening.

View original source ↗
