coupe / convertible - support 25mm door tweeter

ABS · PETG1 FILE0 DOWNLOADSCC-BY-NC-SAInterior doors & windows

PART RECORDREF 1242

PART: coupe / convertible - support 25mm door tweeter
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1242QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

coupe / convertible - support 25mm door tweeter — image 1 of 5

PLATE 01 / 05No caption recorded

Build sheet

MAN-1242

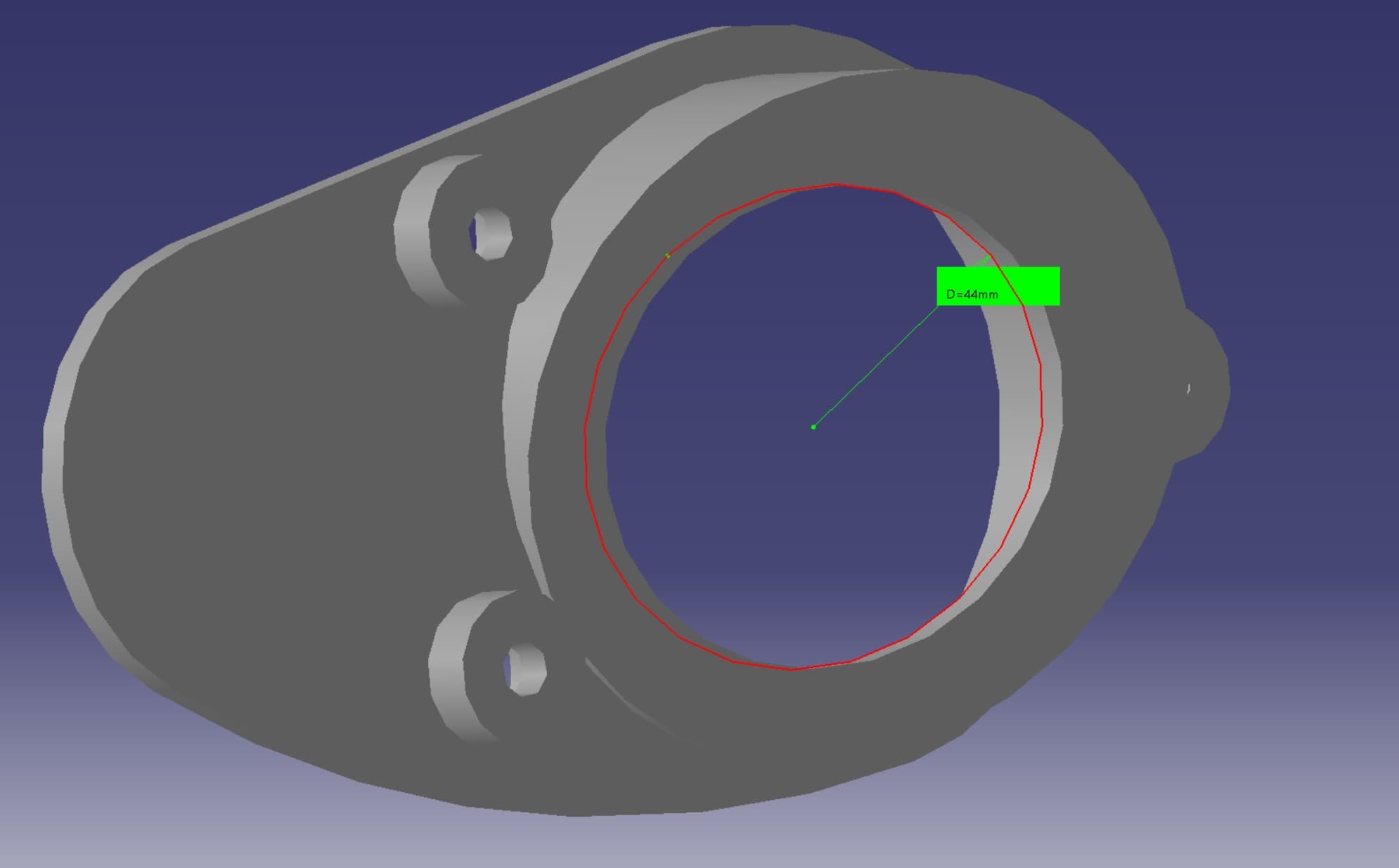

[01]bmw-e46-tweeter-bracket.stpbmw-e46-tweeter-bracket.stp.STL
[02]Bounding box95.251 × 68.213 × 25.729 mm
[03]Volume17,999.561 mm³

Field notes

BY VOMDEICH

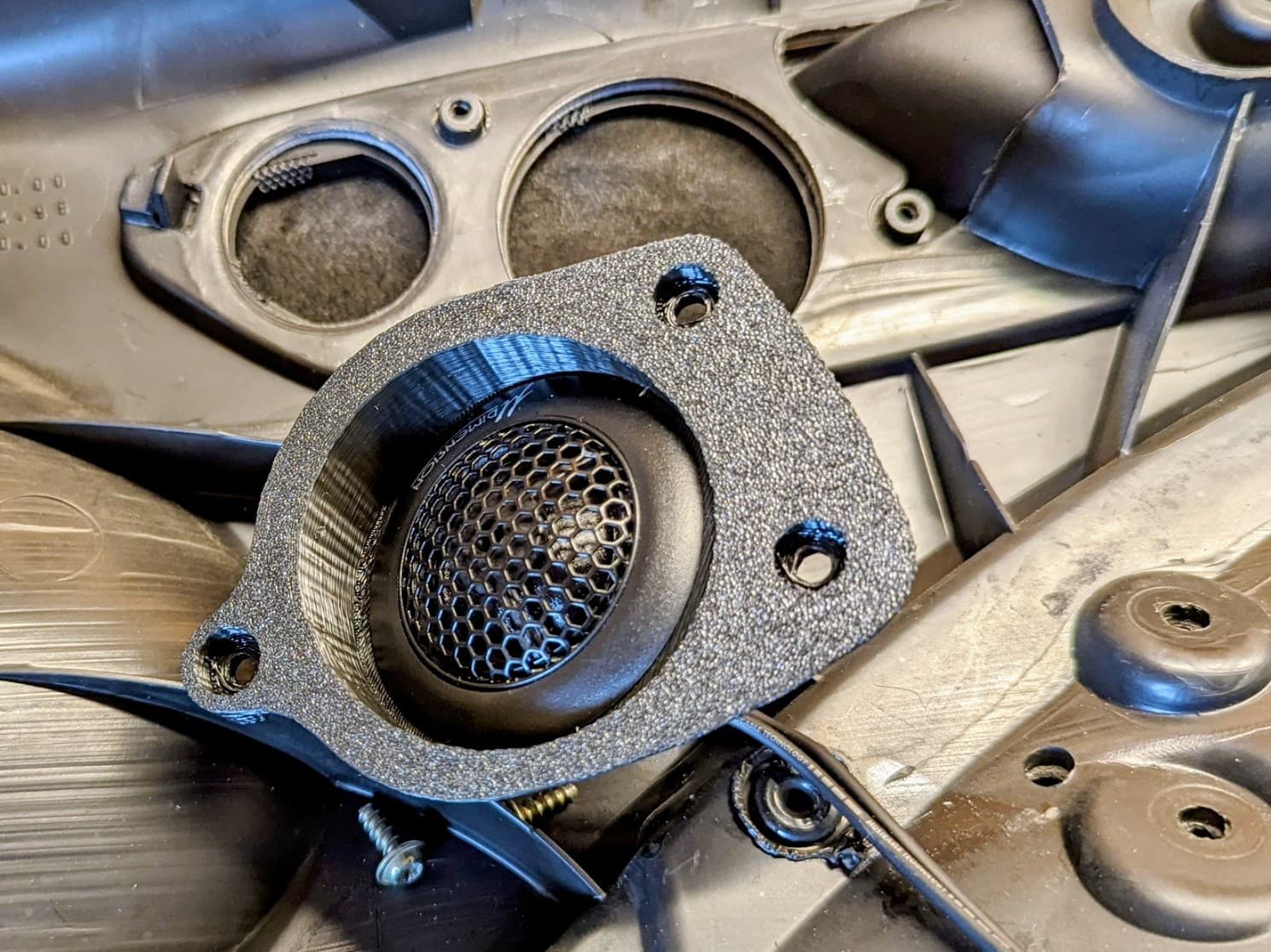

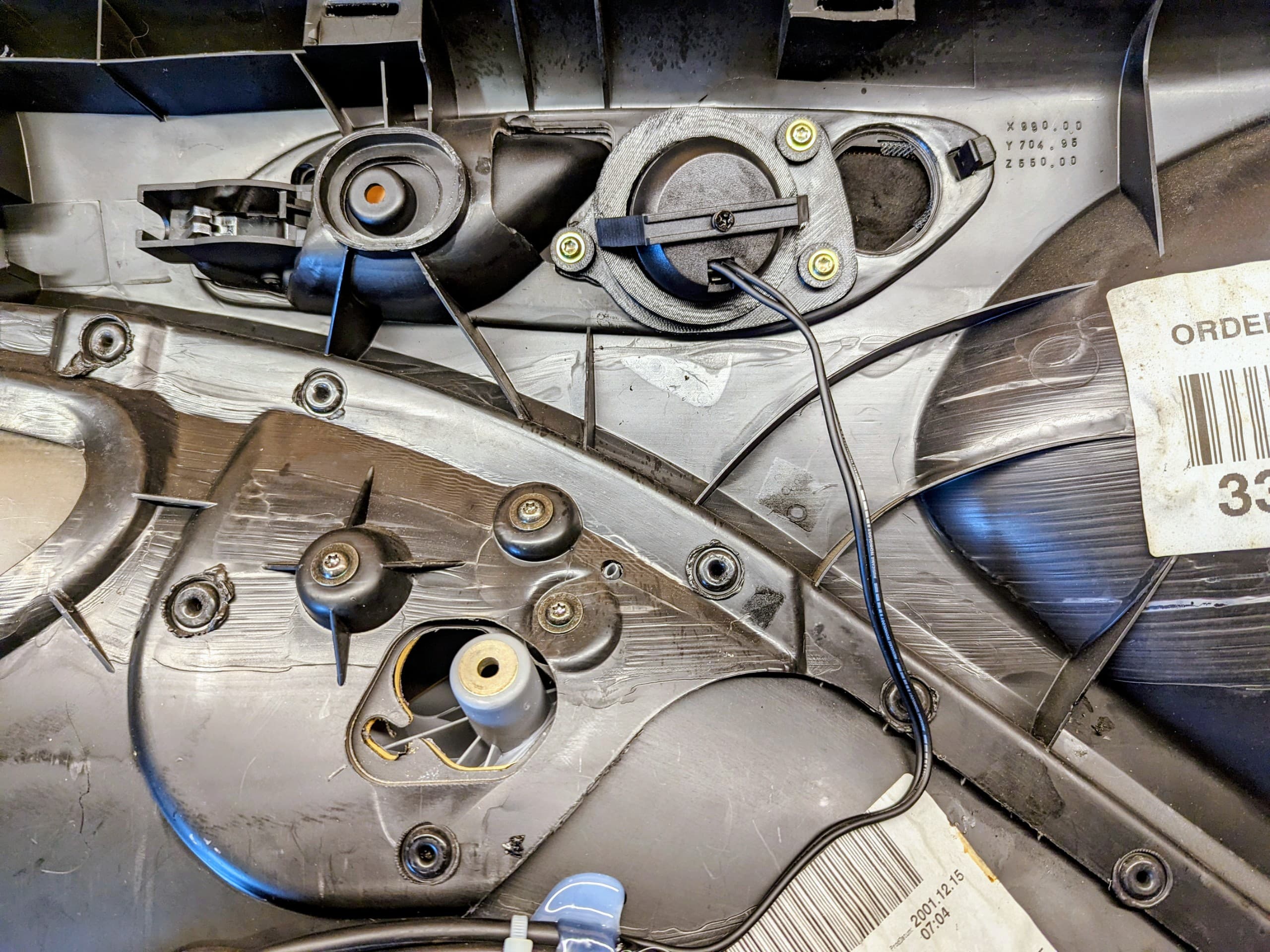

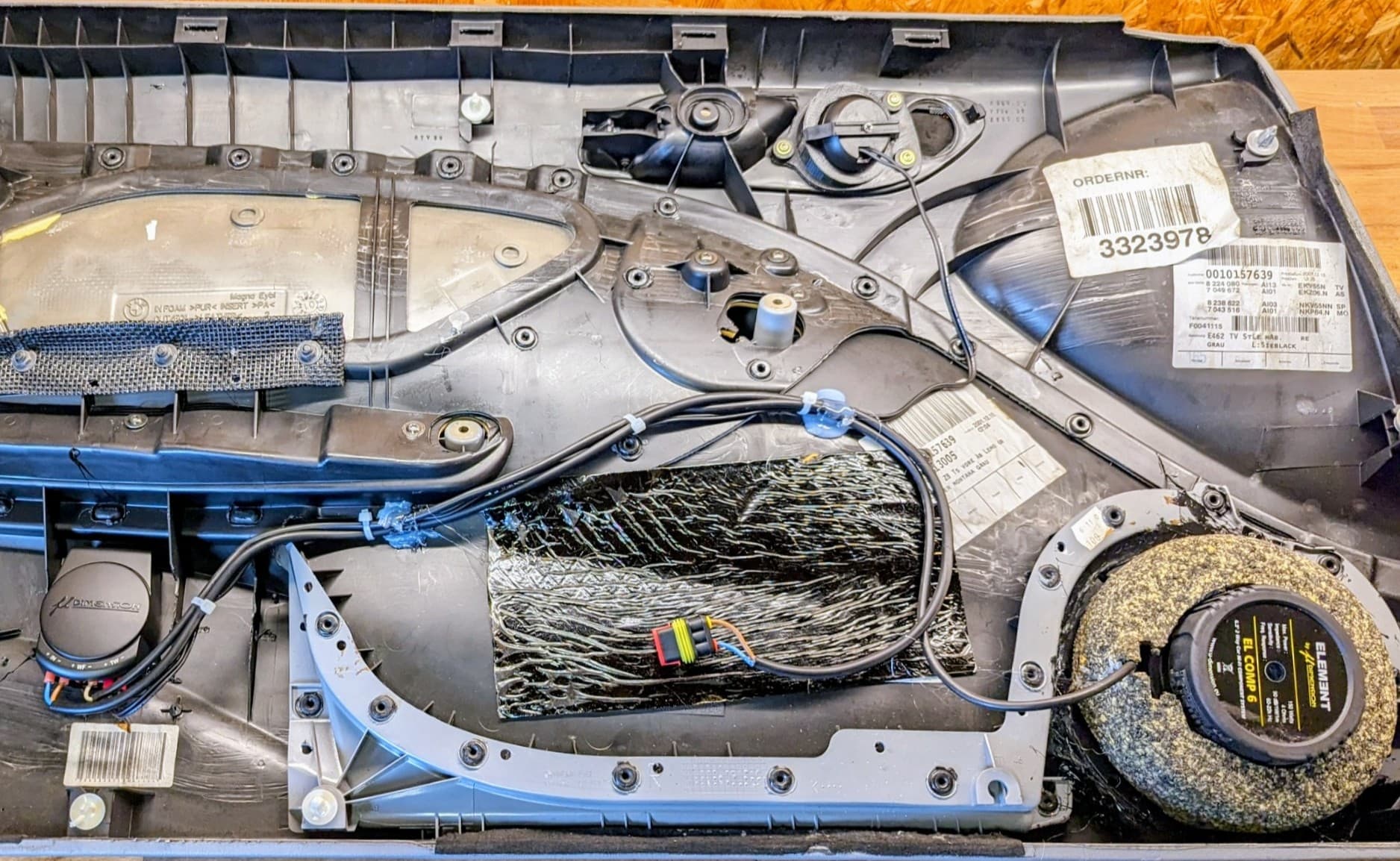

This adapter was used to mount a 25mm twweter of u-Dimension EL Comp 6 system into BMW E46 coupe. You need to print an aditional RH version of LH model provided below. Dry-fit before fastening and verify glass, latch, wiring and trim clearance through full operation.
