Coupe and Convertible Speaker Adapter Set

ABS · PETGMULTI-PART5 FILESCC-BY-NC-SADoors

PART RECORDREF 1225

PART: Coupe and Convertible Speaker Adapter Set
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1225QTY 5 · STLHANDLE · NO SUPPORTS

Field photographs

18 PLATES

PLATE 01 / 18No caption recorded

Build sheet

MAN-1225

[01]Medium_Mount_Left_Door.3mfMedium_Mount_Left_Door.3mf.STL
[02]Medium_Mount_Right_Door.3mfMedium_Mount_Right_Door.3mf.STL
[03]Top_Ring.3mfTop_Ring.3mf.STL
[04]Twitter_Mount_Left_Door.3mfTwitter_Mount_Left_Door.3mf.STL
[05]Twitter_Mount_Right_Door.3mfTwitter_Mount_Right_Door.3mf.STL
[06]Bounding box184.843 × 167.991 × 86.184 mm
[07]Volume111,726.593 mm³

Field notes

BY FLIPPYTK

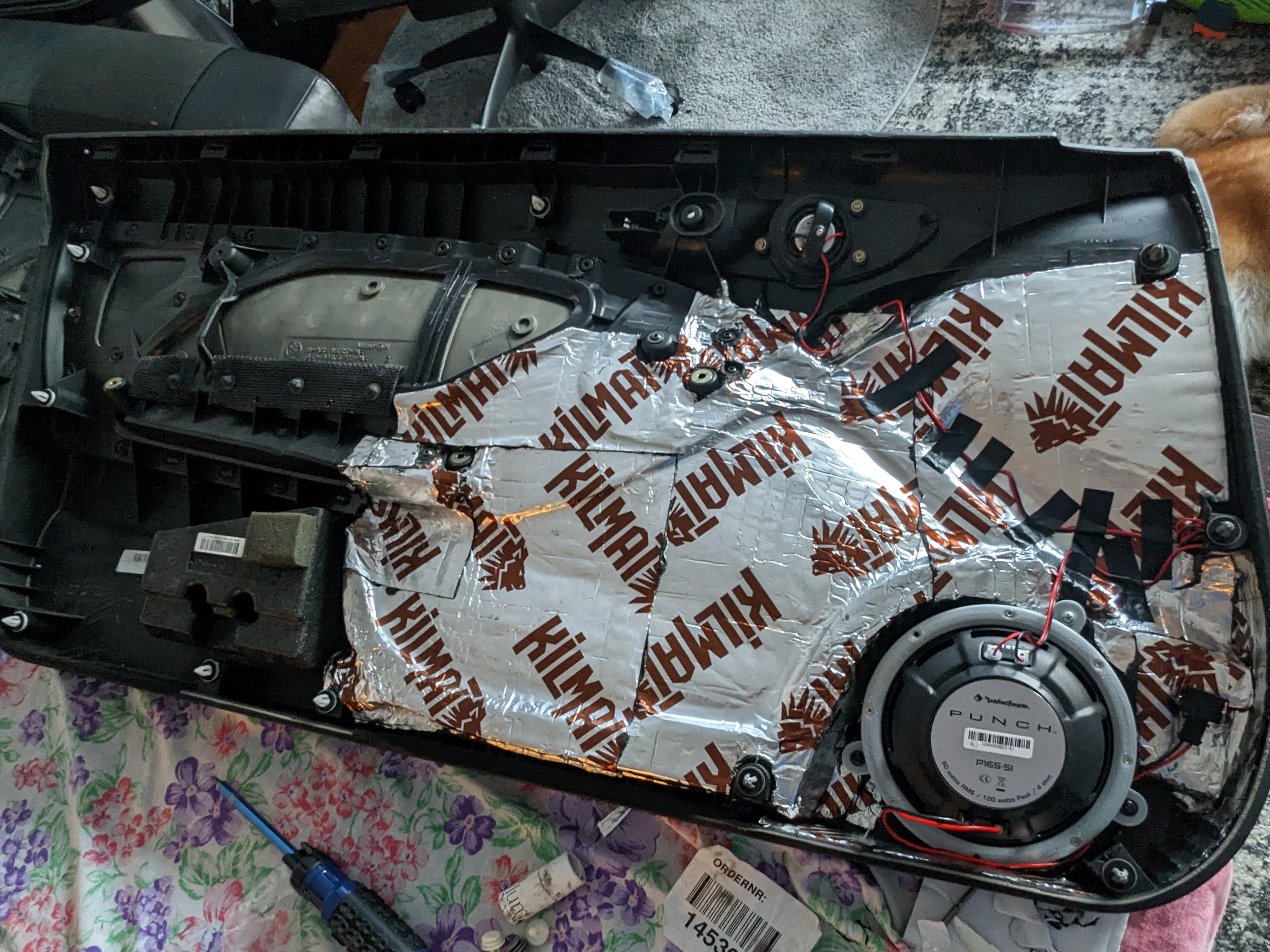

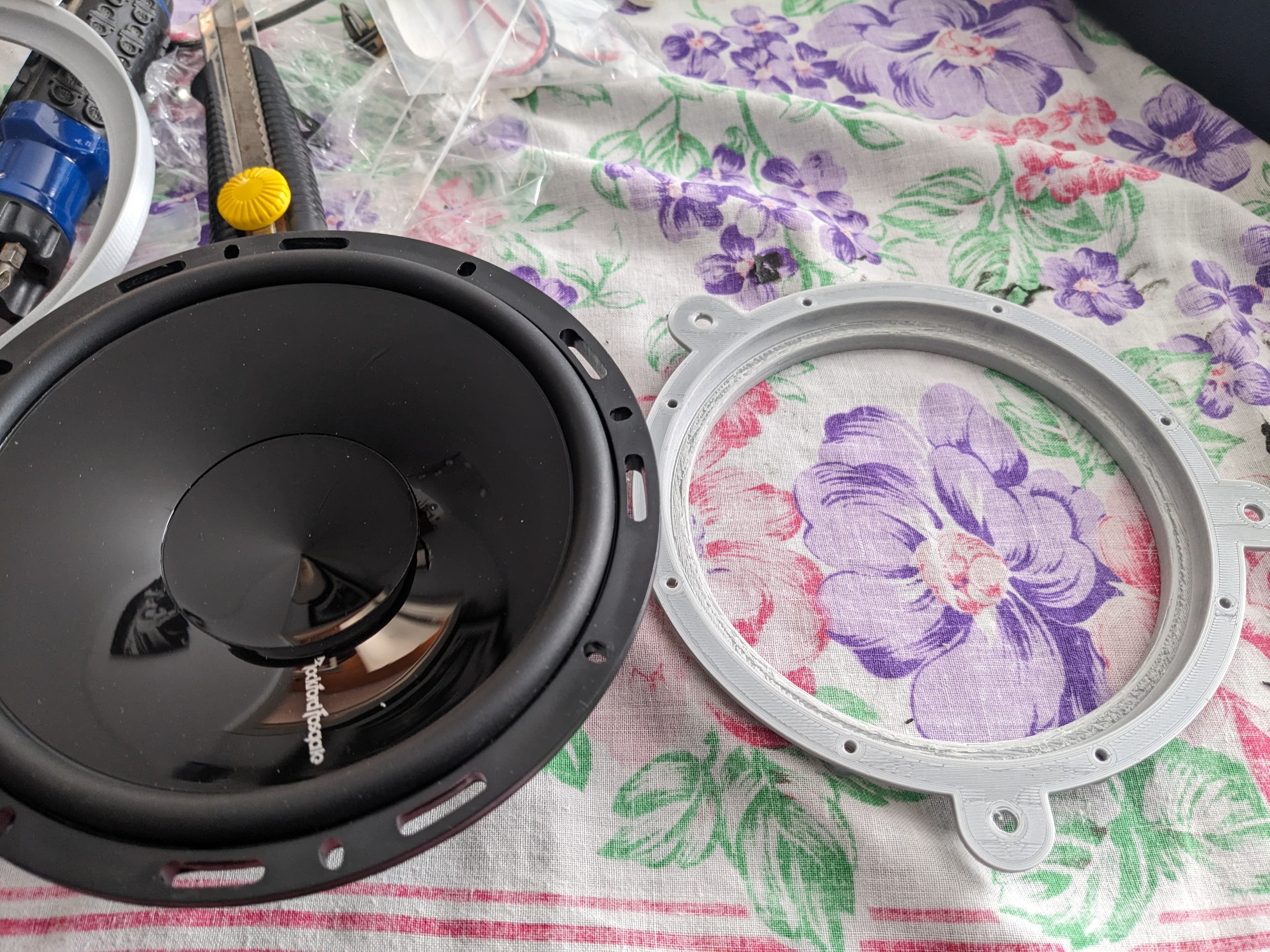

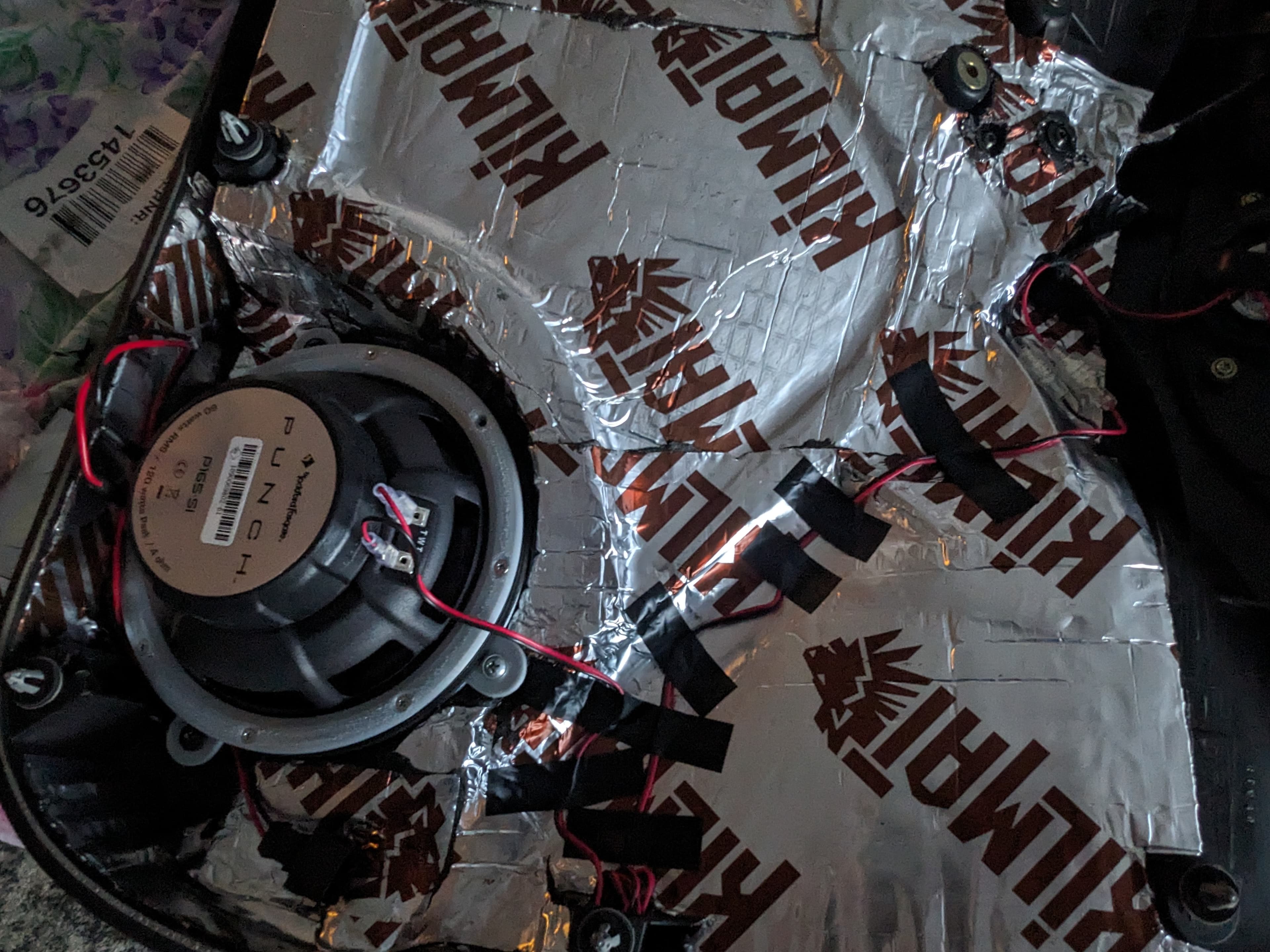

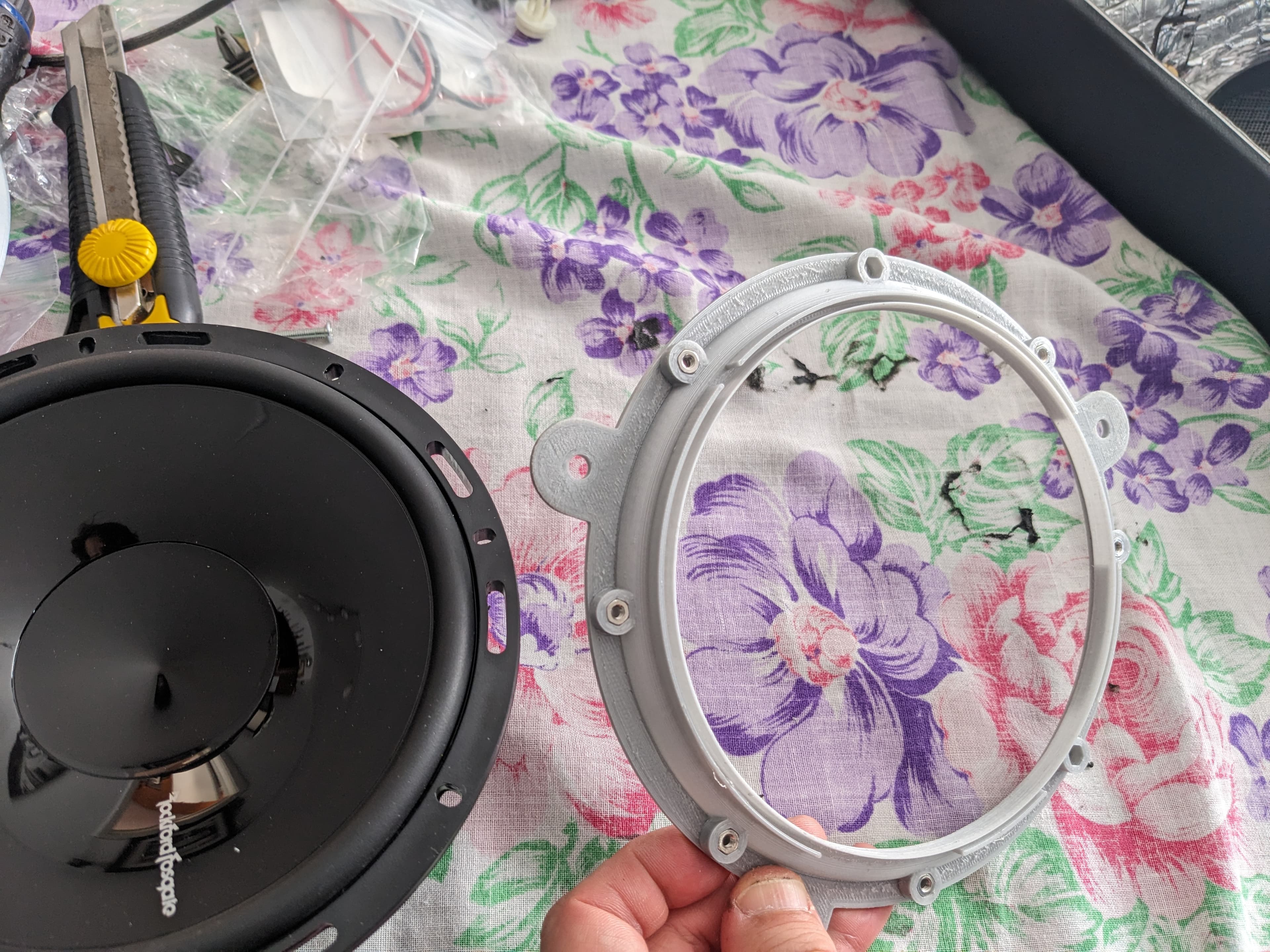

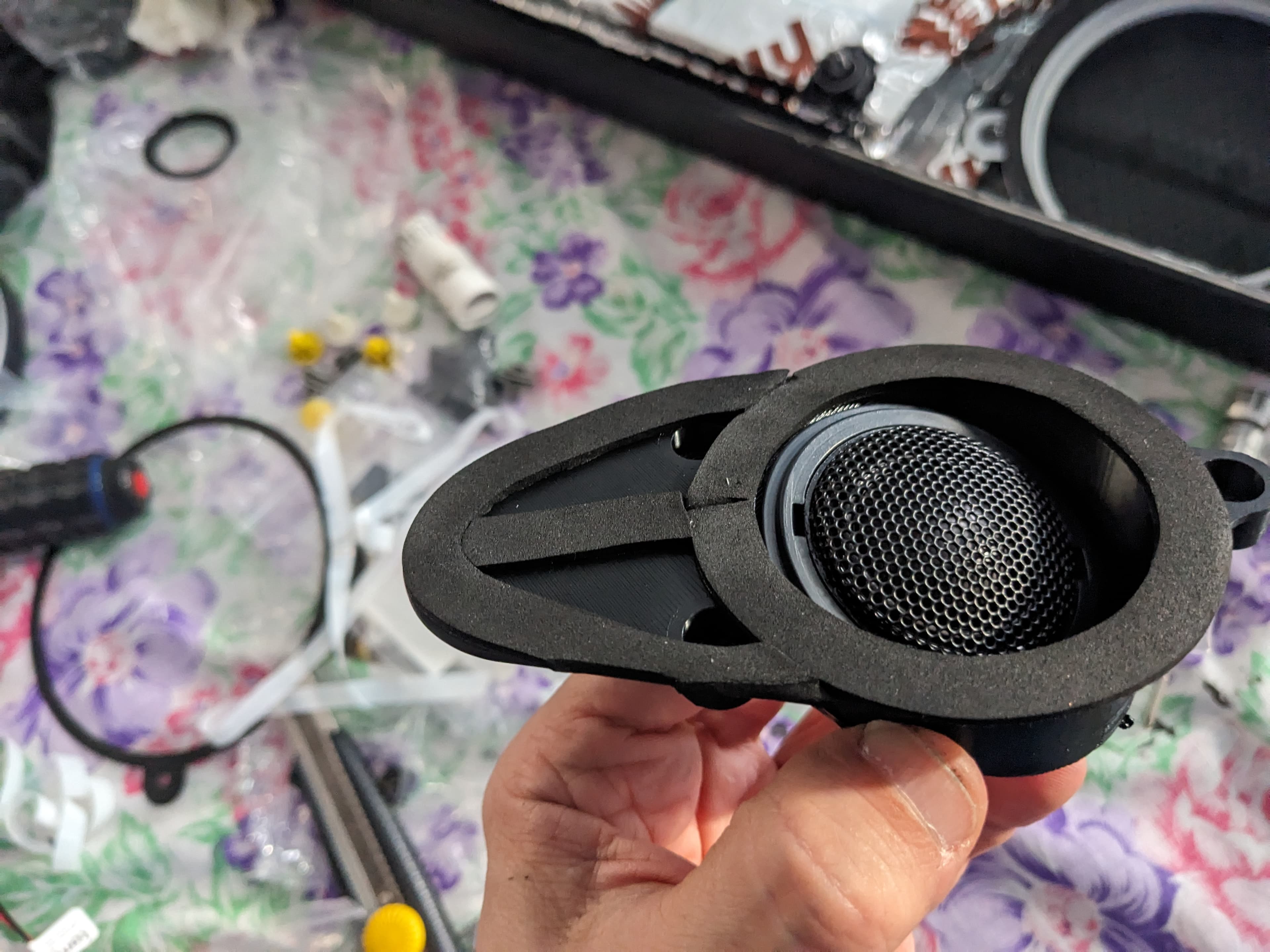

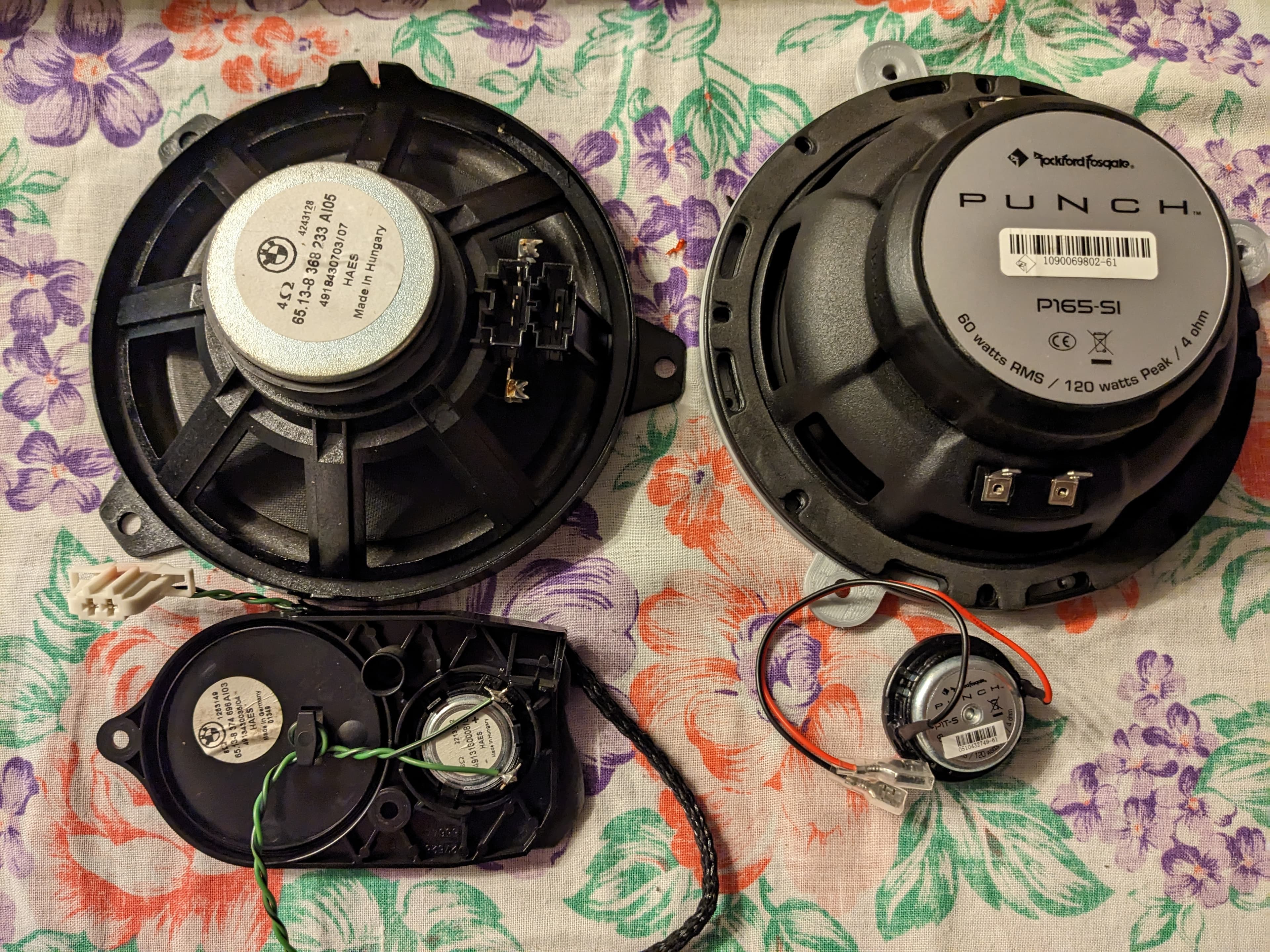

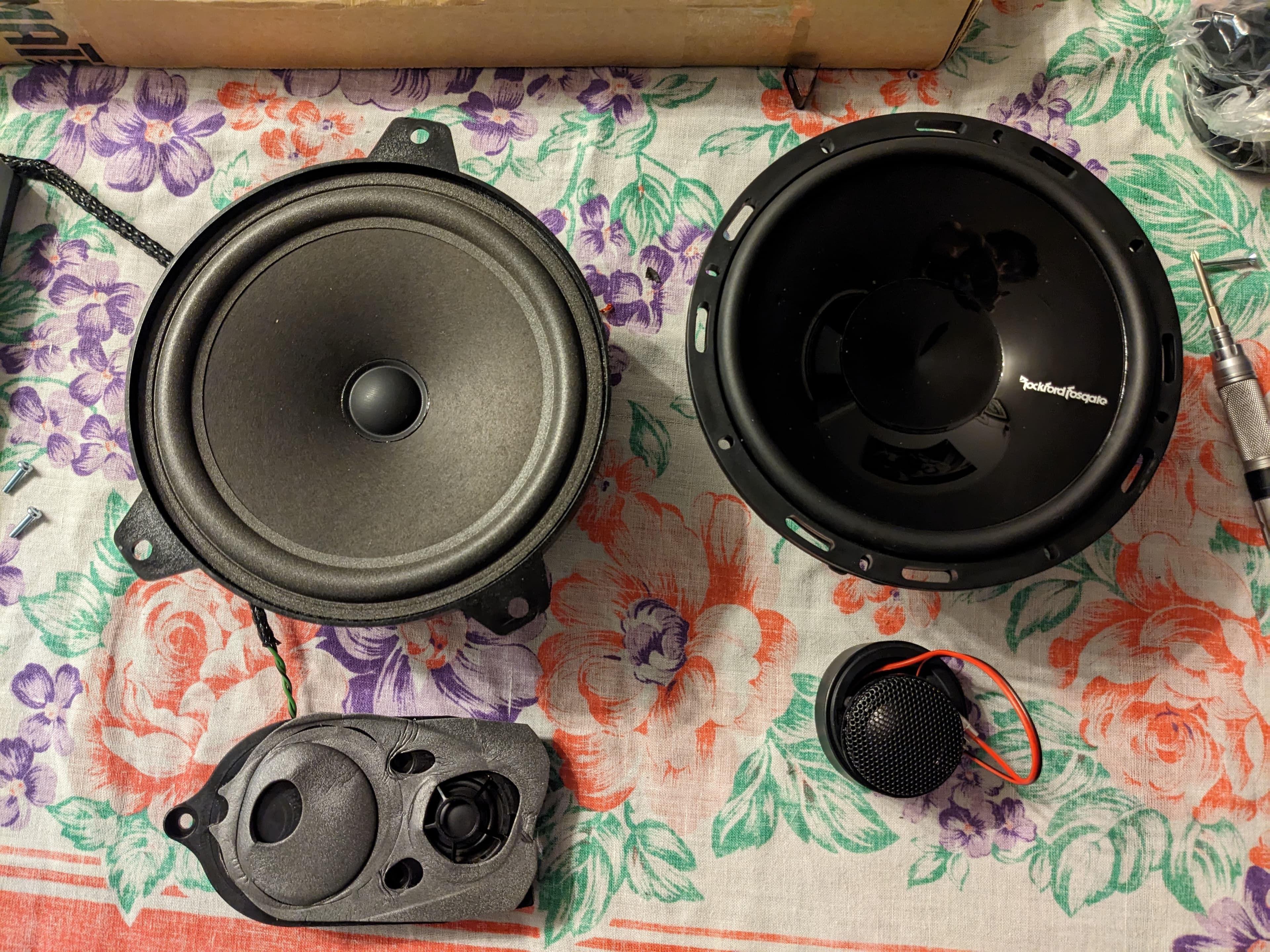

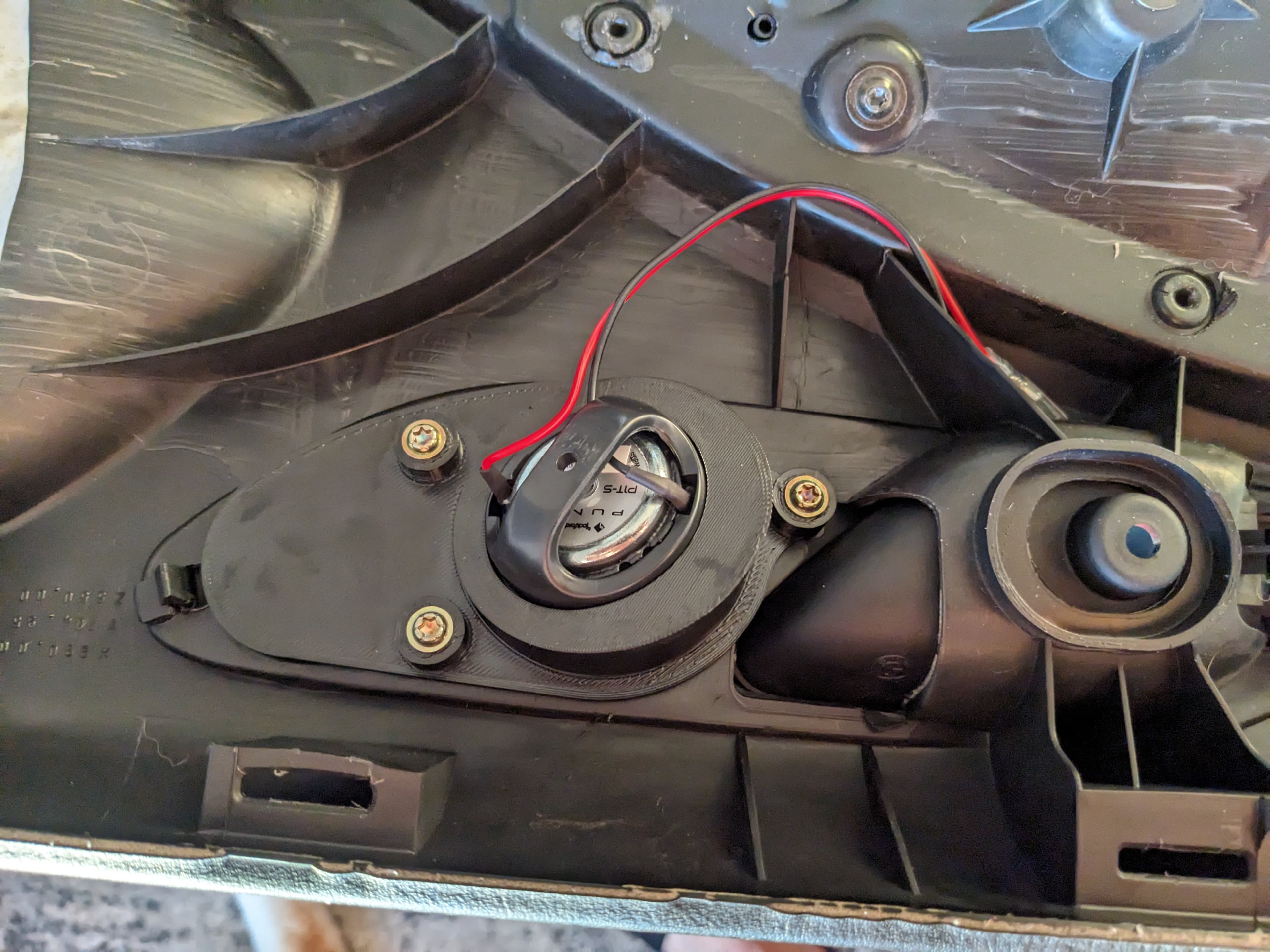

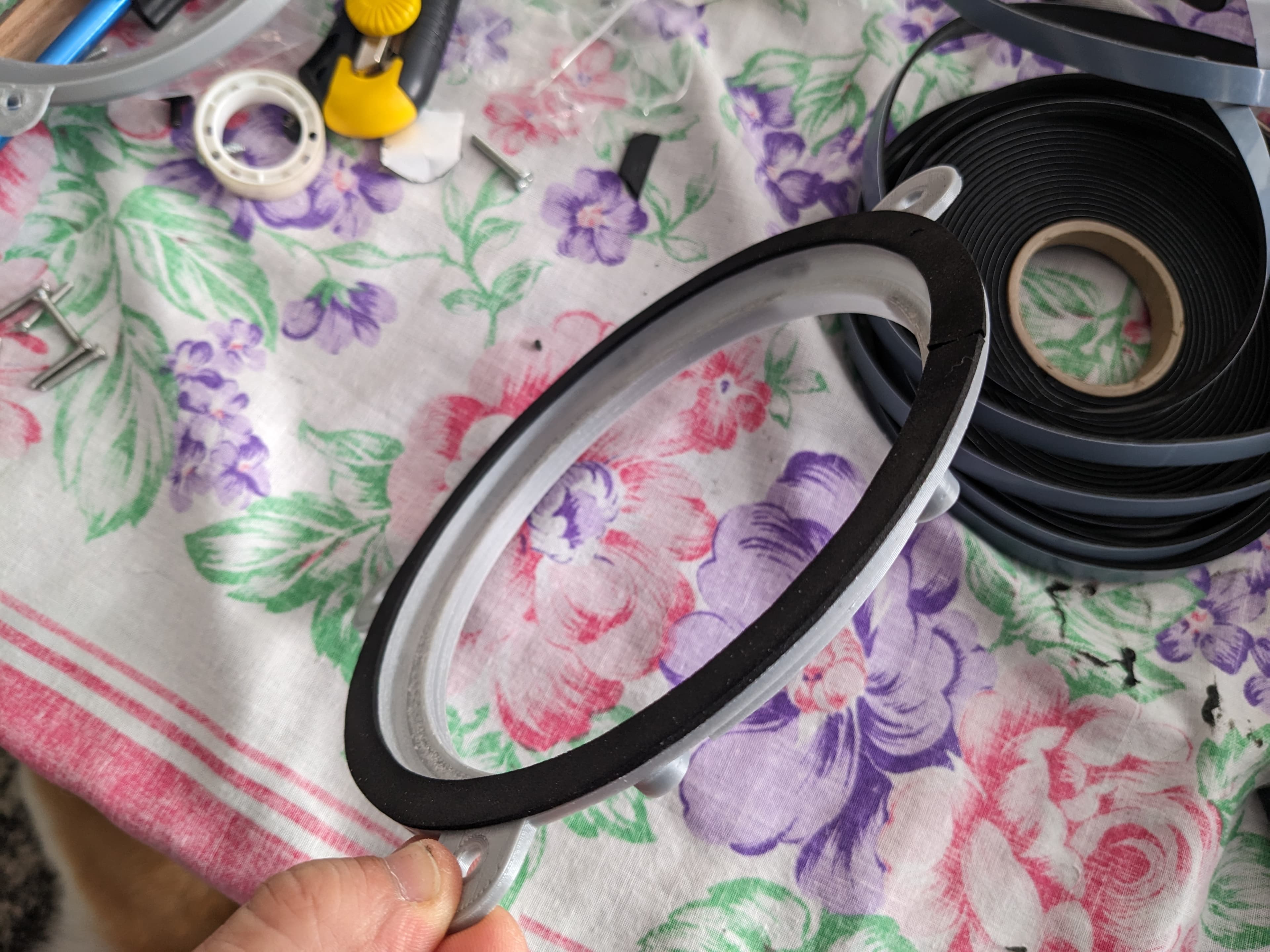

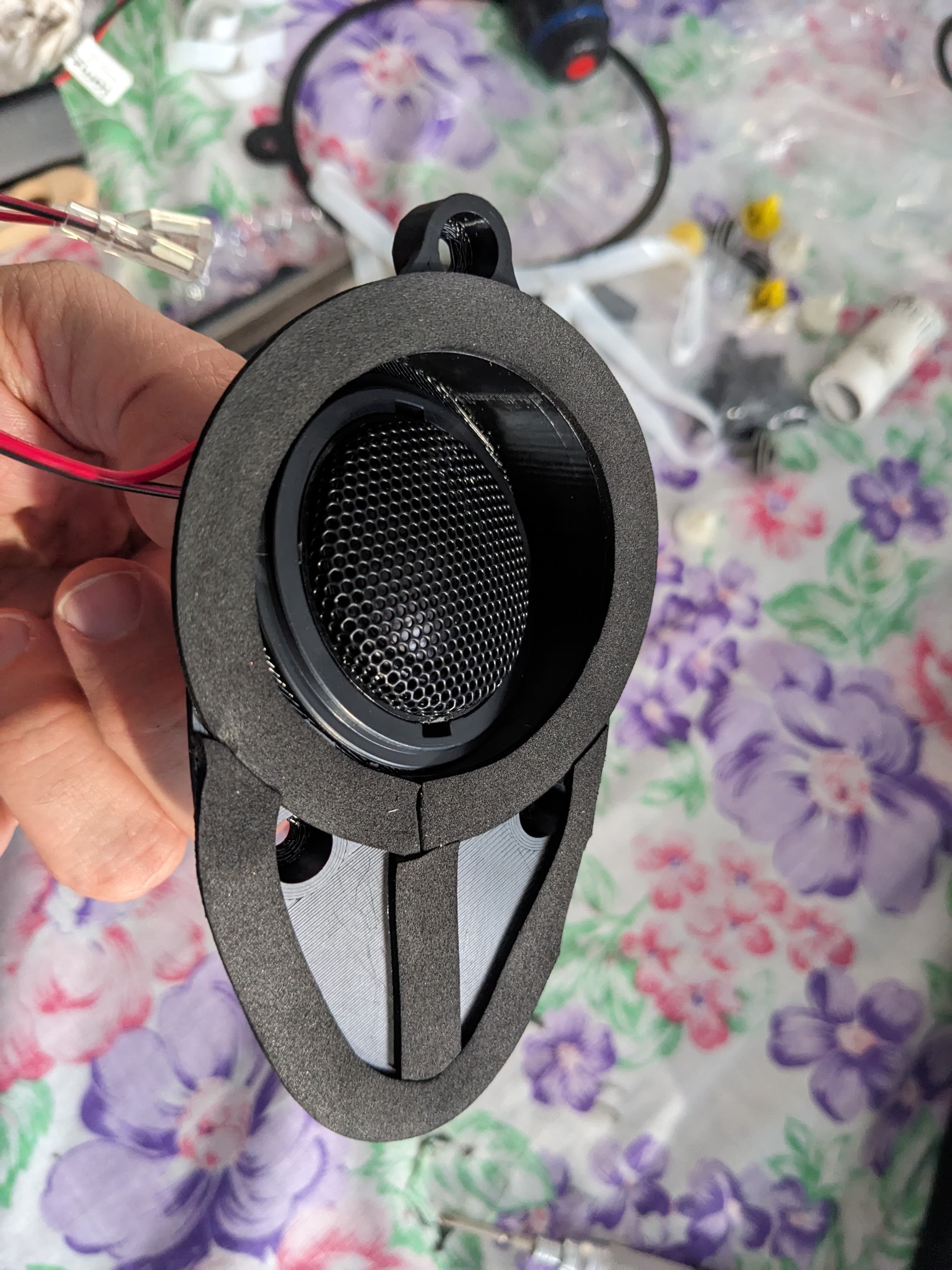

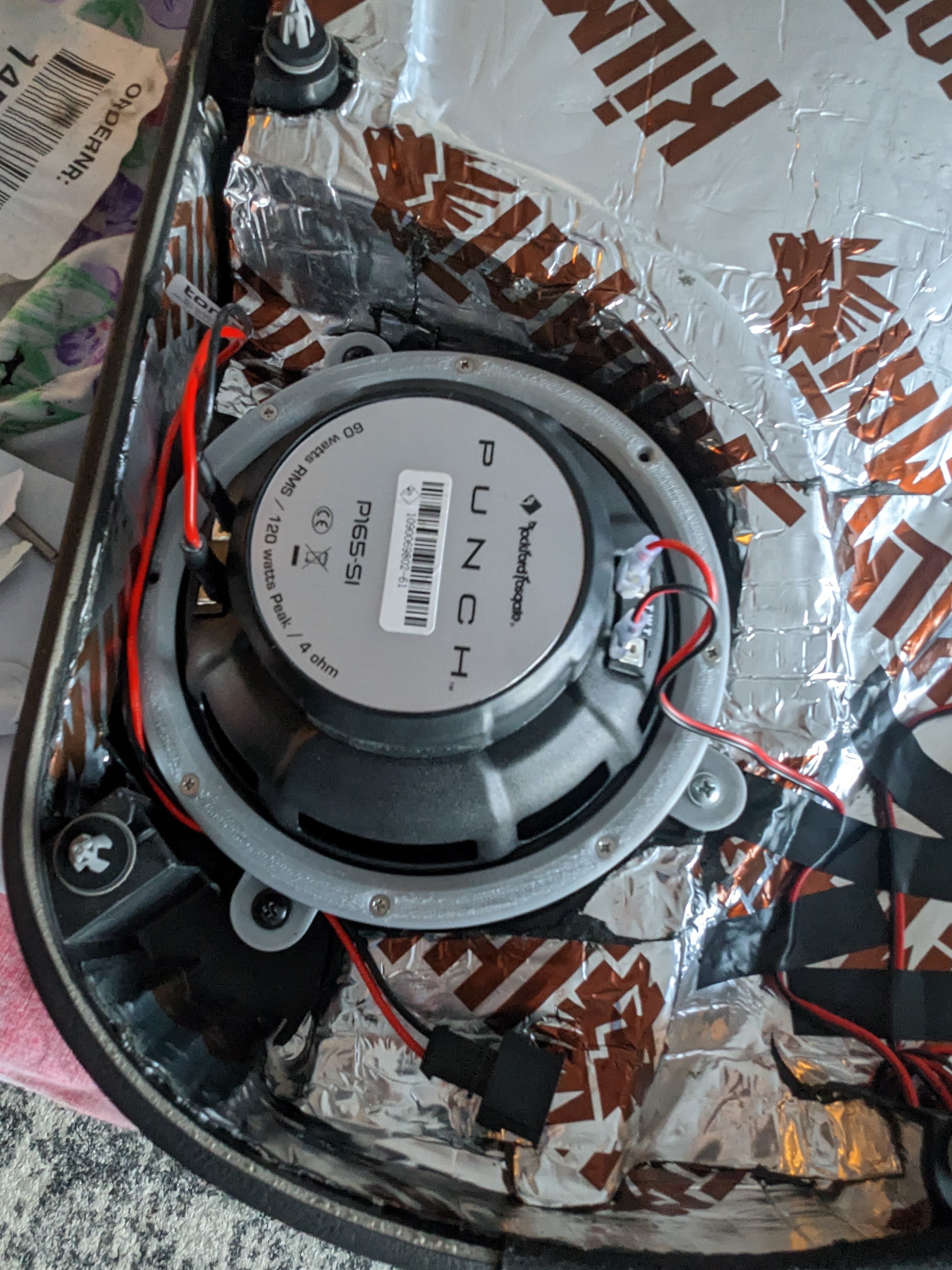

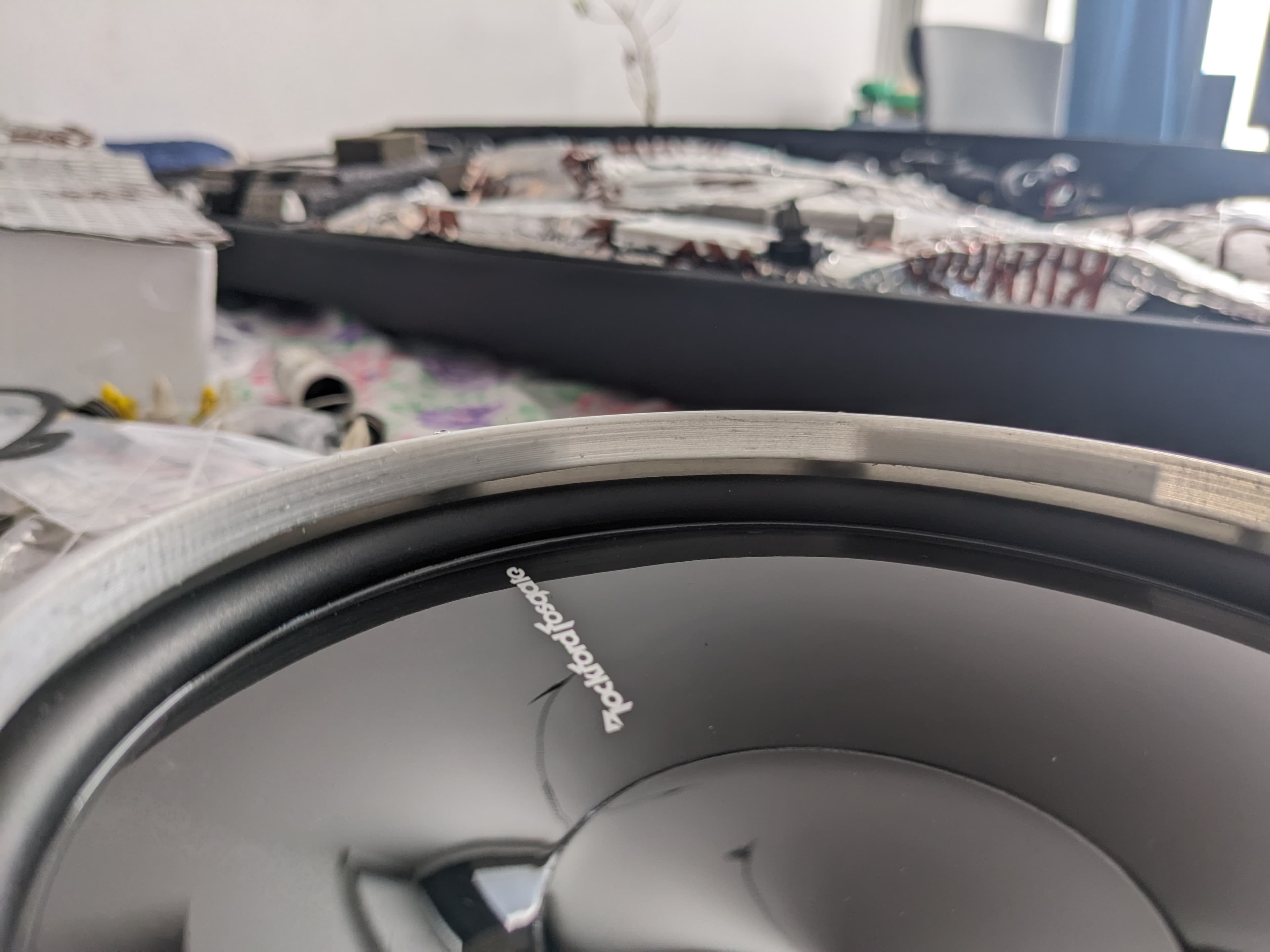

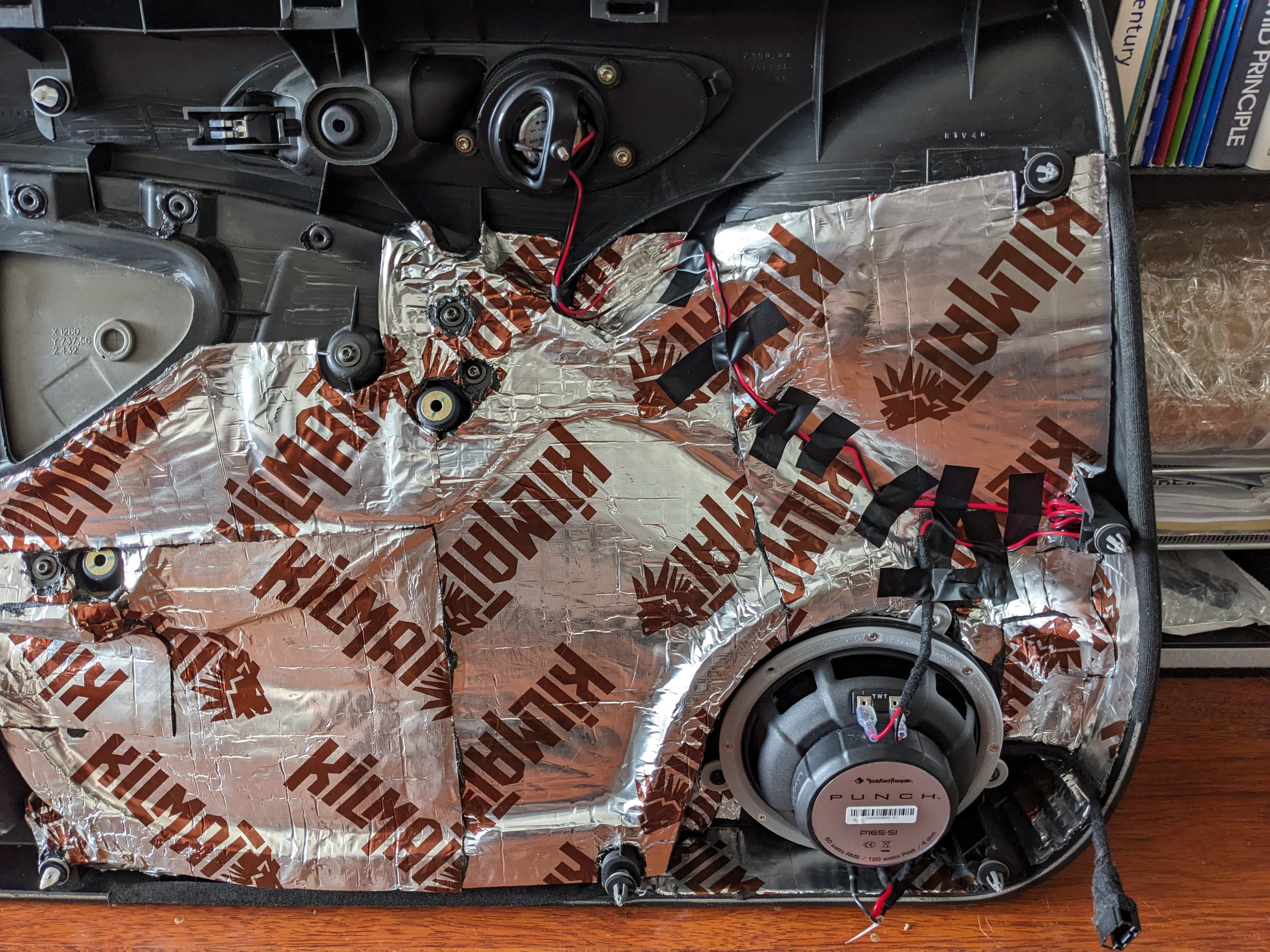

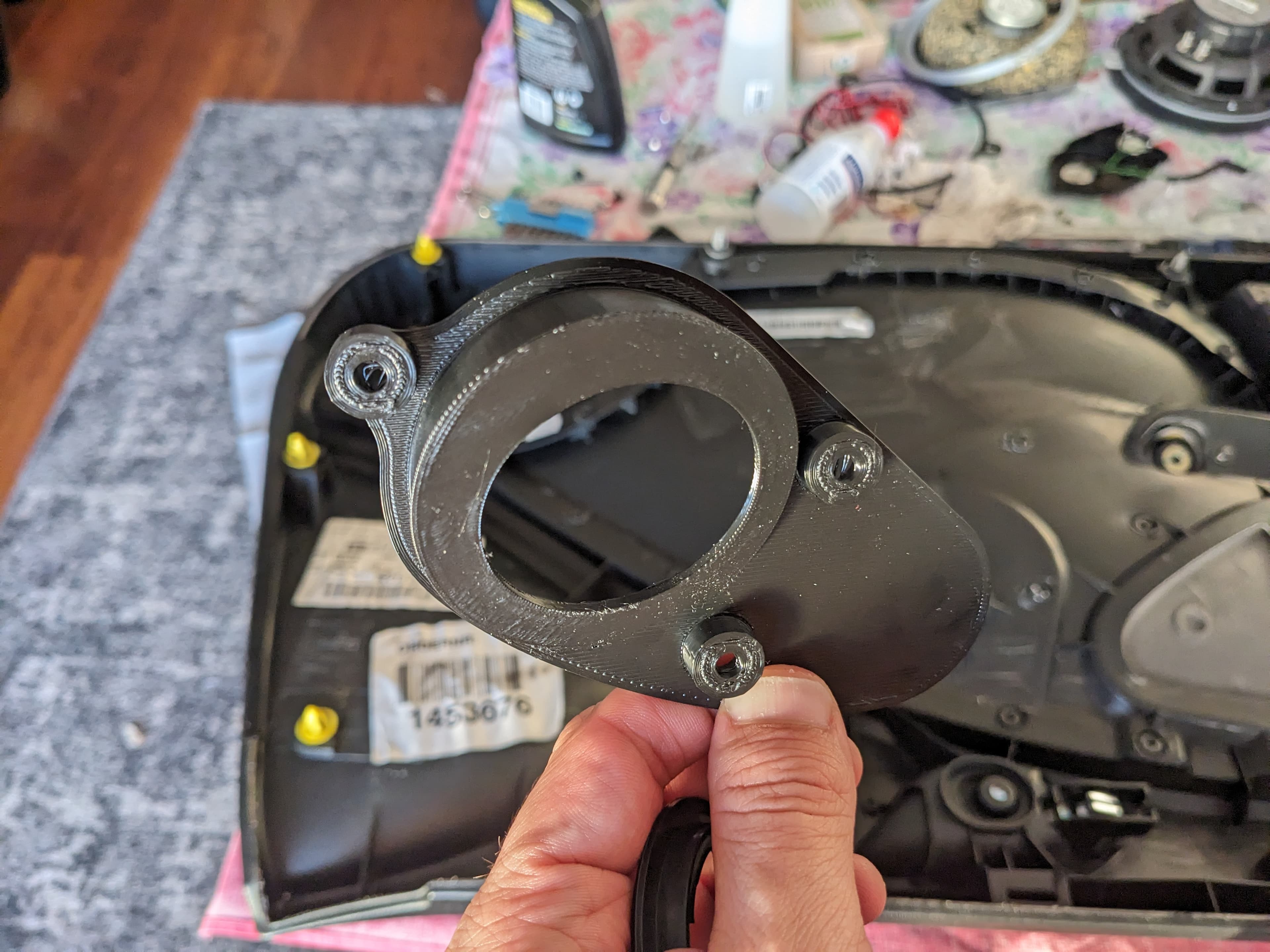

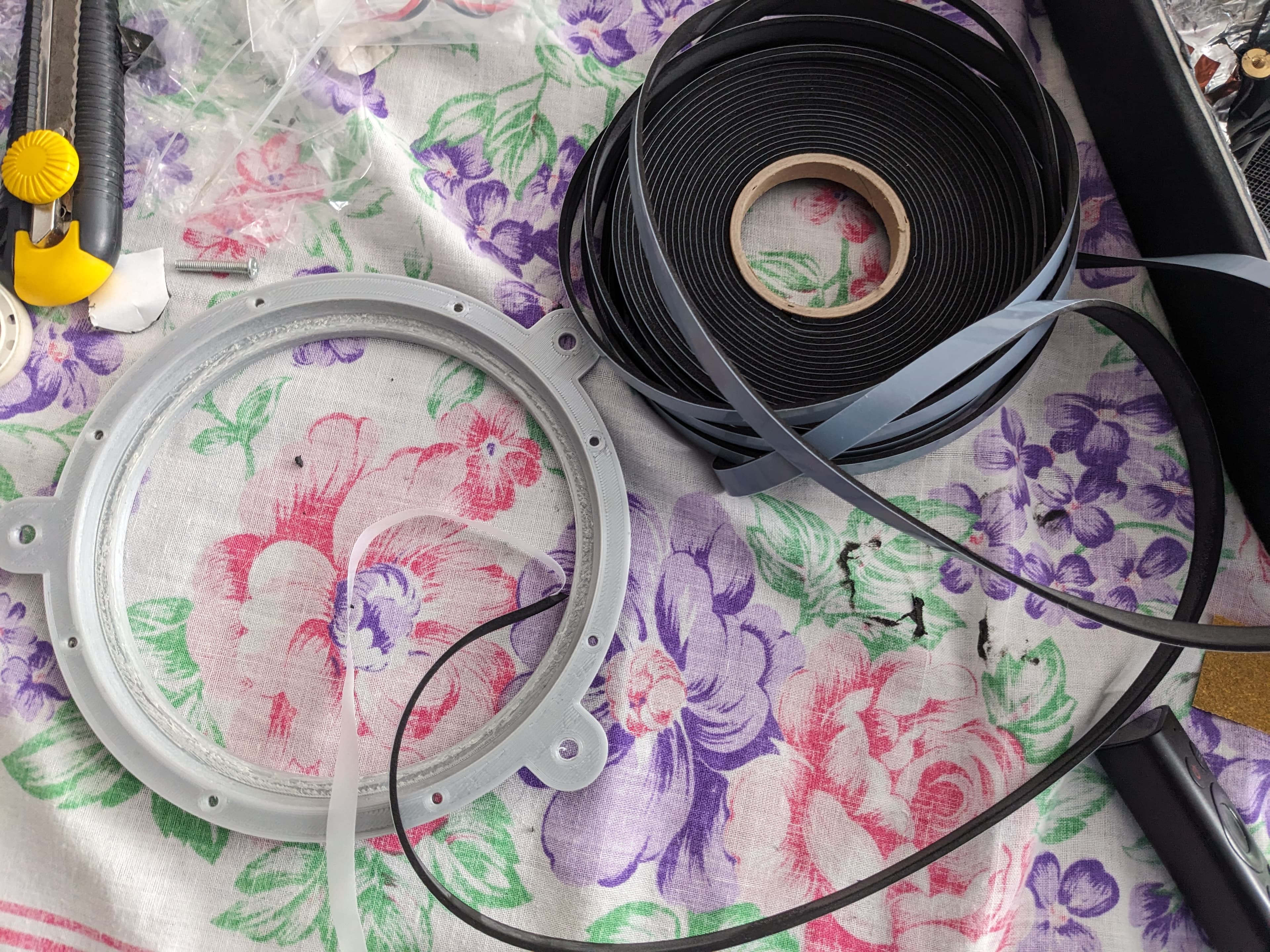

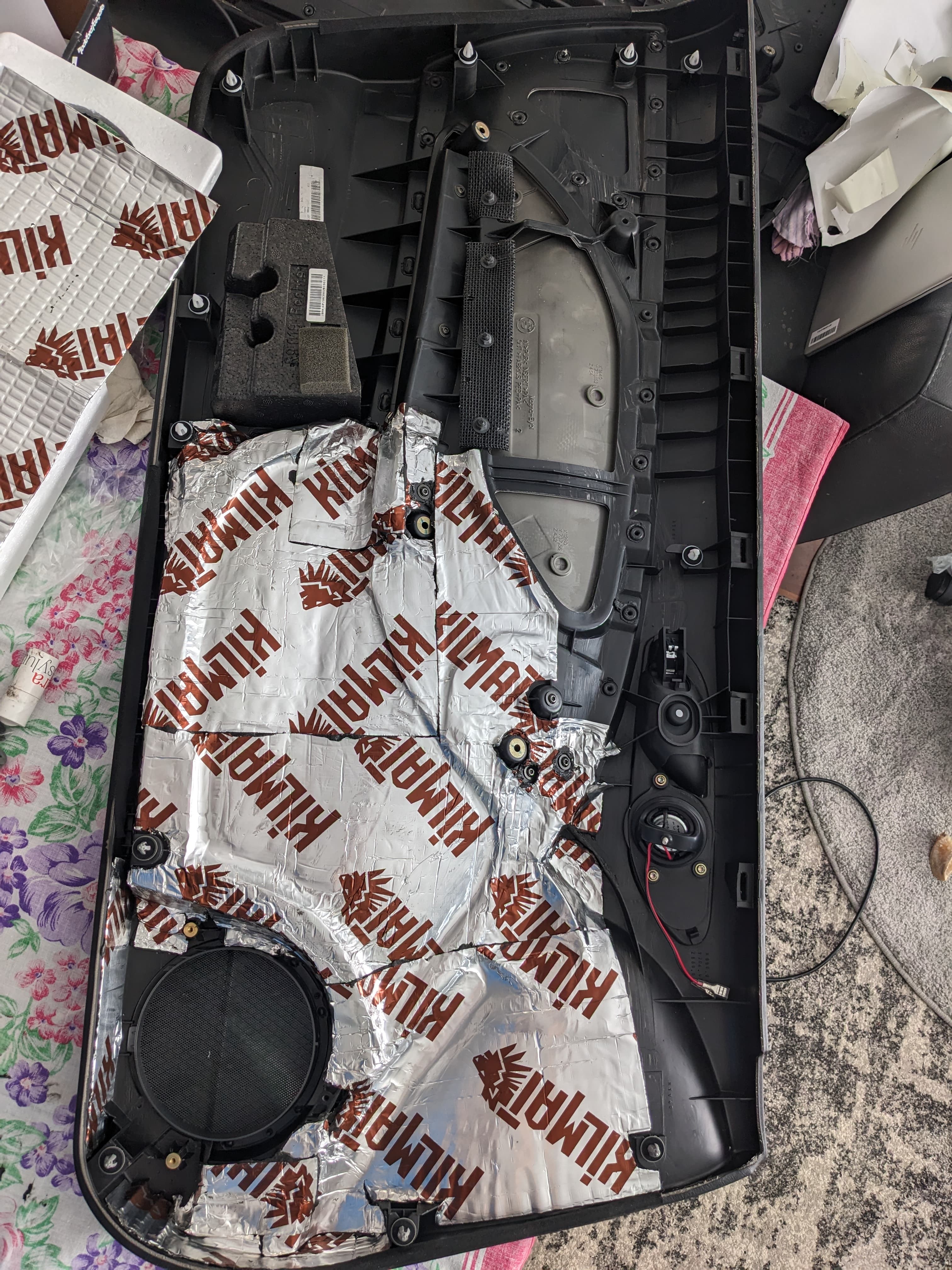

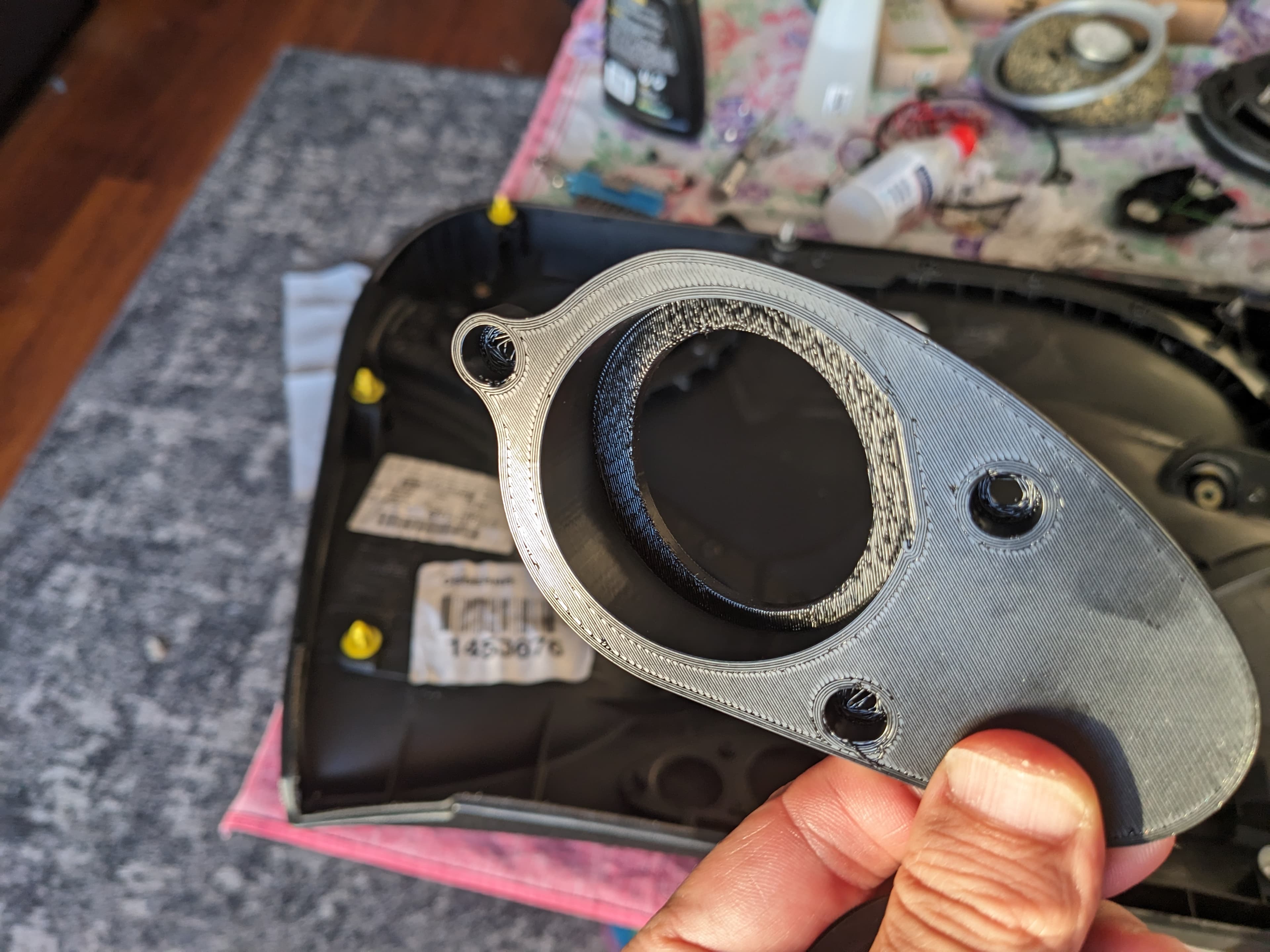

Five-piece adapter set for 165 mm midrange speakers and 44 mm tweeters in Euro-spec E46 Coupe and Convertible doors without factory Hi-Fi or Harman Kardon. The creator documents the original mounts, printed adapters, driver assembly and installed sound-deadened doors. Verify speaker, wiring, window and door-trim clearance before fastening.

View original source ↗
