Convertible Hardtop Covers

ABS · PETGMULTI-PART2 FILESCC-BYBody
PART RECORDREF 1196
PART
Convertible Hardtop Covers
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1196QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1196

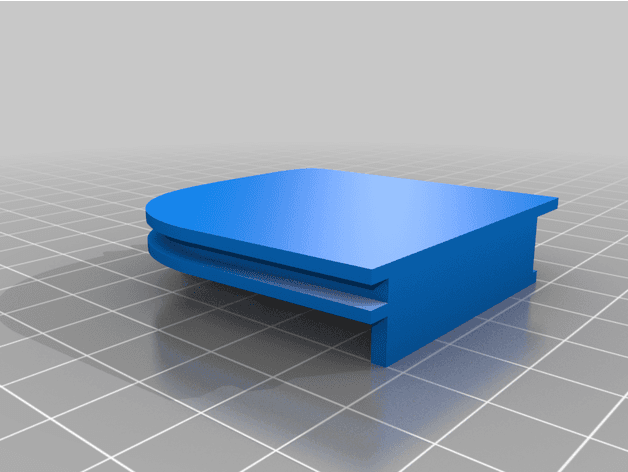

  • [01]E46_combinded_body_Left.stl.STL
  • [02]E46_combinded_body_Right.stl.STL
  • [03]Bounding box55.917 × 49.287 × 24.000 mm
  • [04]Volume17,494.31 mm³
Field notes
BY ANDREAS ENGKVIST (ANDREASENGKVIST)

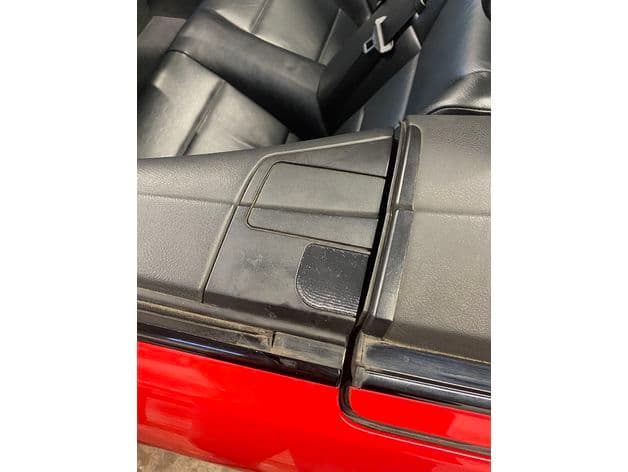

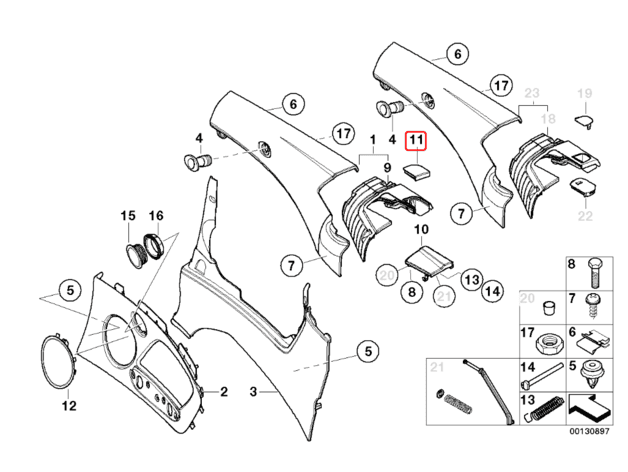

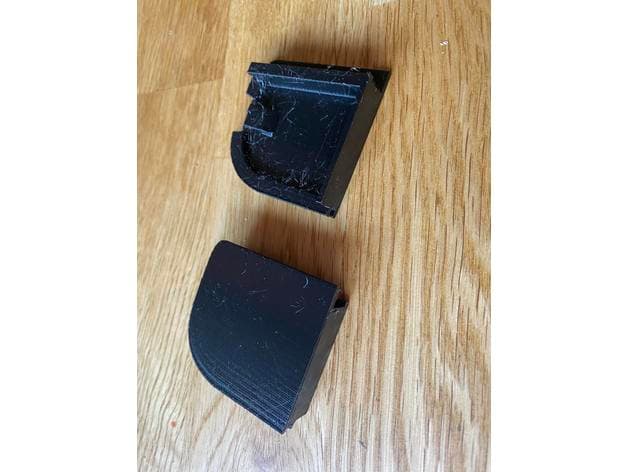

My wifes car was equiped with a Hard top, but during summertime the hardtop is removed and there were these big gaping holes in the plastic trim. Apparantly there is a cover that fits there, but they cost aroun €60-80, each.. Can't have it that way and i wont pay that crazy amount for some plastic. Designed my own and sanded and plastidipped in black.. Looks good enough for me.. If you don't want to make one self, search for these part numbers on ebay or your local bmw dealer. 51717022385 51717022386 PS: The bunny ears will break, so just break them of before mounting.. They never aligned up but the part will not fall away.. it is snugg fittment. :) Use exterior-rated material and verify secure retention, sealing and adjacent-panel clearance.
