Compact Front 165 mm Speaker Adapter

ABS · PETG1 FILECC-BY-NCDoors

PART RECORDREF 1223

PART: Compact Front 165 mm Speaker Adapter
OEM: —
FITS: 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1223QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

7 PLATES

PLATE 01 / 07No caption recorded

Build sheet

MAN-1223

[01]Bimmer_Adapterring.stlBimmer_Adapterring.stl.STL
[02]Bounding box185.983 × 179.979 × 45.000 mm
[03]Volume104,373.052 mm³

Field notes

BY SSPICO

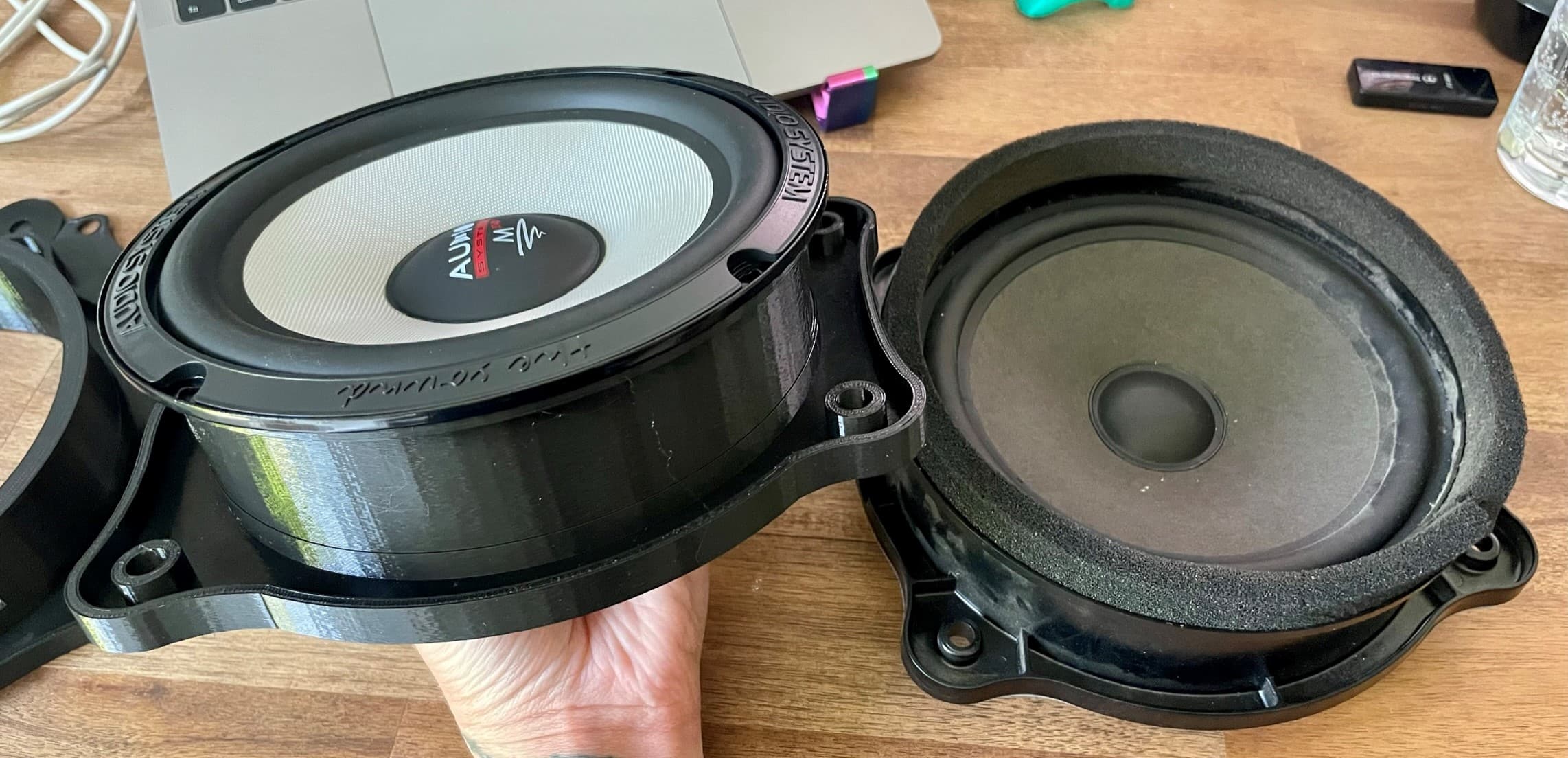

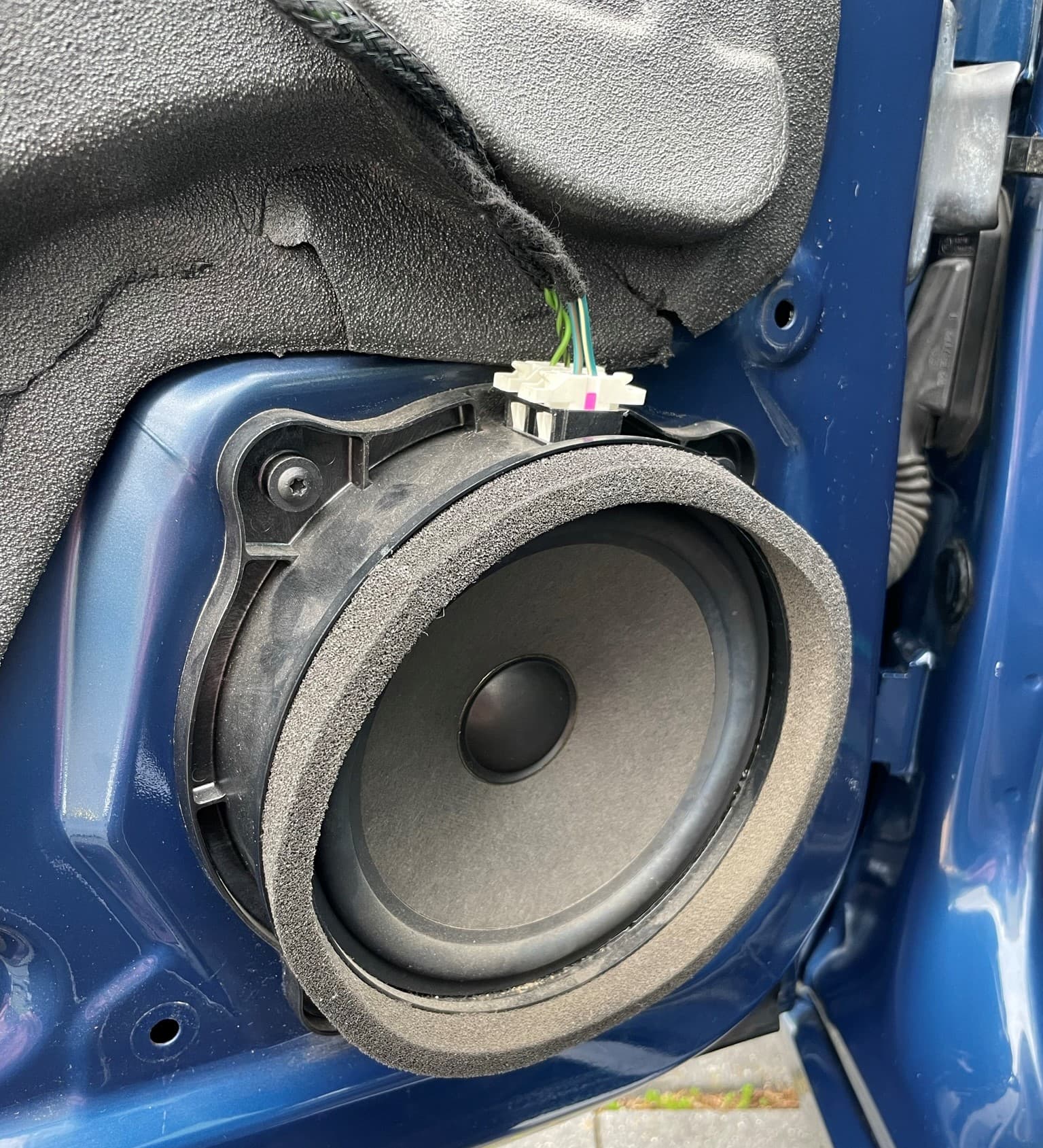

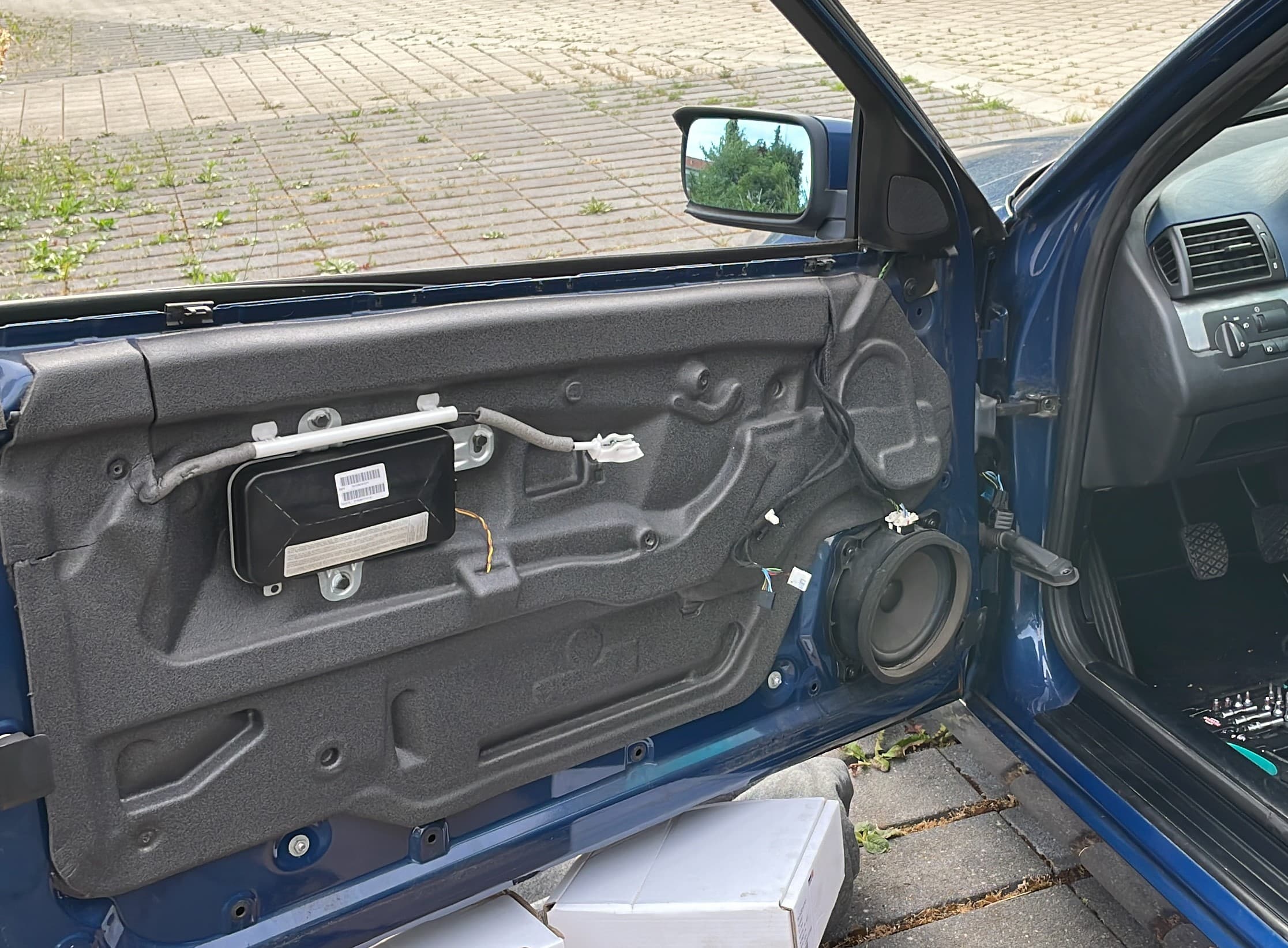

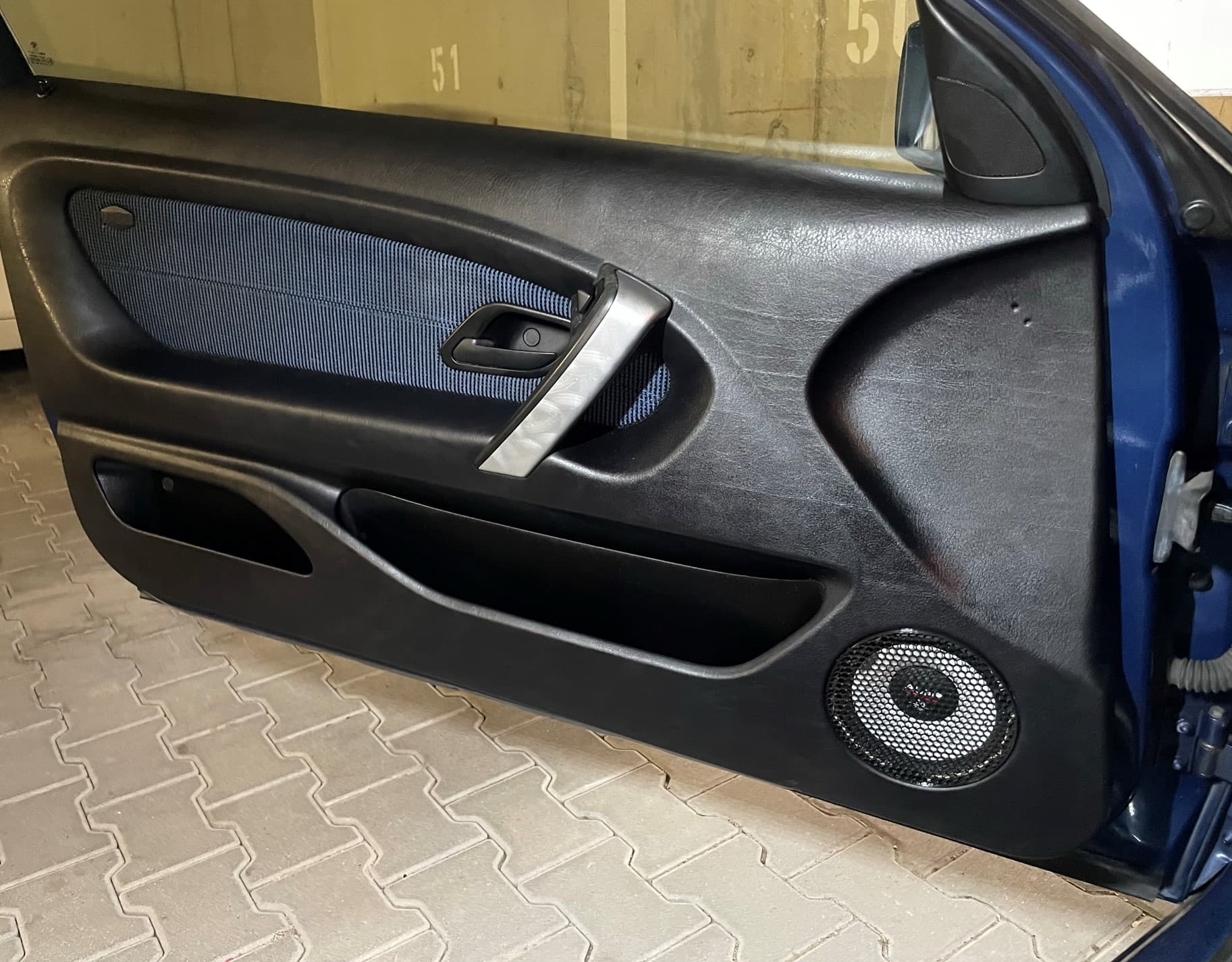

Front-door adapter for installing a 165 mm speaker in the E46 Compact, whose factory speaker differs from other E46 bodies. The creator documents the original door, factory speaker, printed adapter and finished installation. Dry-fit before fastening and verify glass, wiring, cone and door-trim clearance through full window travel.
