Centre Dash-Vent Louver

ABS · PETG1 FILECC-BY-NCDashboard

PART RECORDREF 1553

PART: Centre Dash-Vent Louver
OEM: —
FITS: Z4 E85 / E86

Loading 3D viewer...

PART ID · BIMMER-3D / 1553QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1553

[01]bmw_z4_vent_louver.stlbmw_z4_vent_louver.stl.STL
[02]Bounding box45.297 × 34.000 × 3.798 mm
[03]Volume2,420.114 mm³

Field notes

BY JCORN

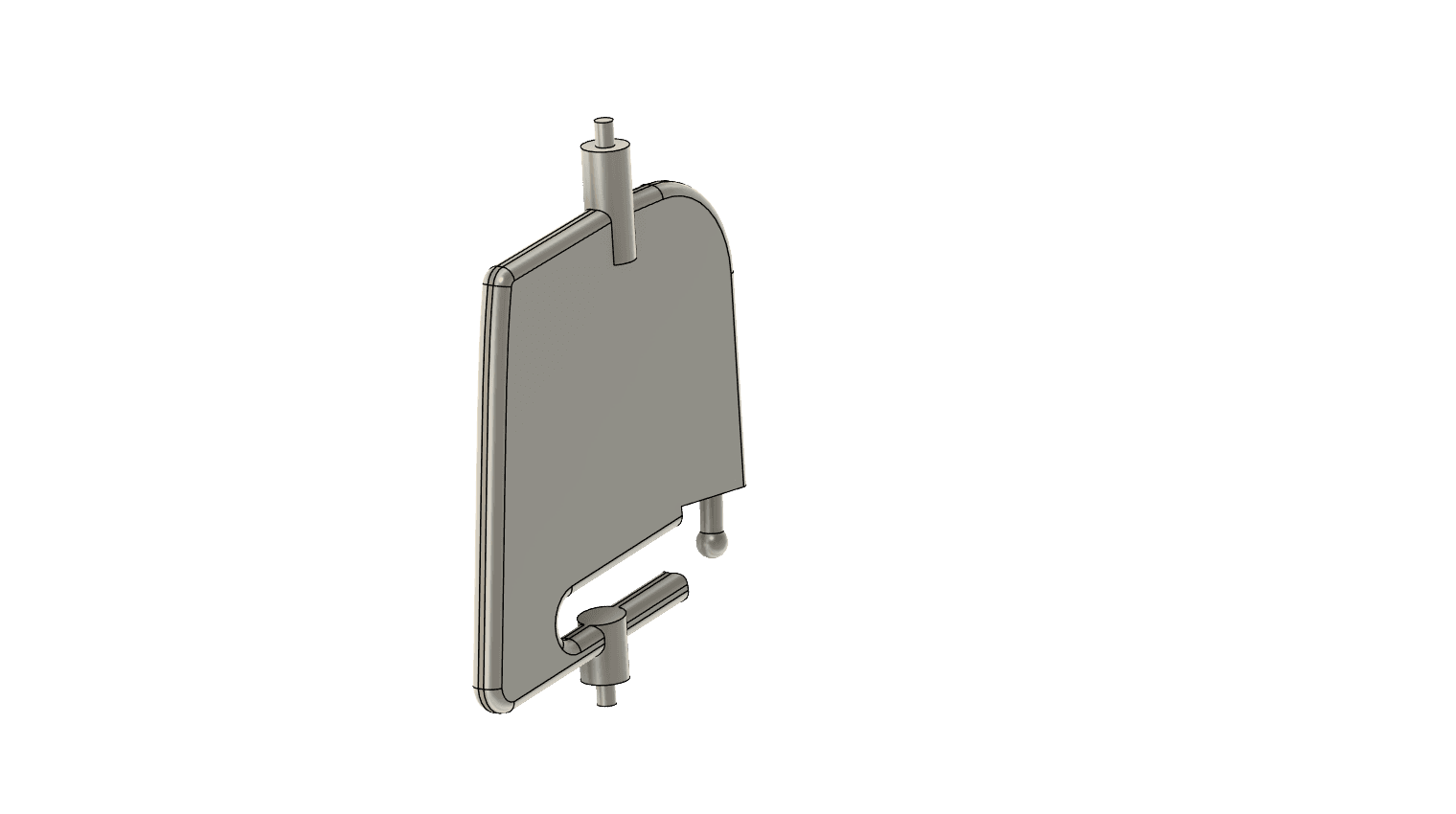

Replacement internal louver for the centre dashboard vent, with a dashboard-location diagram and CAD view. The creator reports using it to restore broken, non-adjustable air diverters. Match the original orientation, use cabin-heat-resistant material and verify smooth adjustment without binding.
