Centre-Console Pen Clip

ABS · PETG1 FILECC-BYInterior

PART RECORDREF 1550

PART: Centre-Console Pen Clip
OEM: —
FITS: Z4 E85 / E86

Loading 3D viewer...

PART ID · BIMMER-3D / 1550QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1550

[01]pen_clip.stlpen_clip.stl.STL
[02]Bounding box18.724 × 16.998 × 12.000 mm
[03]Volume497.674 mm³

Field notes

BY SAMUEL BURROWS (SBURROWS)

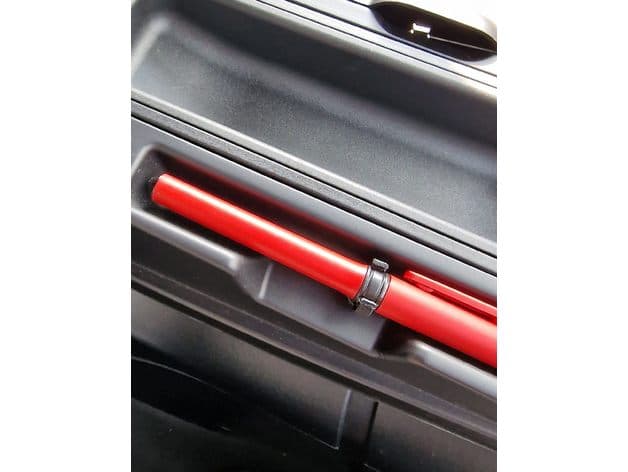

Replacement clip for the centre-console pen recess, shown installed with and without a pen and as loose physical prints. BMW services the clip only with the larger ashtray insert, so parent number 51167026219 is deliberately omitted. Confirm retention and keep loose objects clear of the handbrake and shifter.
