Cable-Managed Center-Console MagSafe Phone Mount

ABS · Nylon1 FILECC-BY-NC-SAInterior
PART RECORDREF 1486
PART
Cable-Managed Center-Console MagSafe Phone Mount
OEM
FITS
iX I20
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1486QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1486
  • [01]BMW iX cell holder cable mgmt.stl.STL
  • [02]Bounding box157.456 × 103.824 × 93.207 mm
  • [03]Volume133,809.375 mm³
Field notes
BY SHAWN PETERS

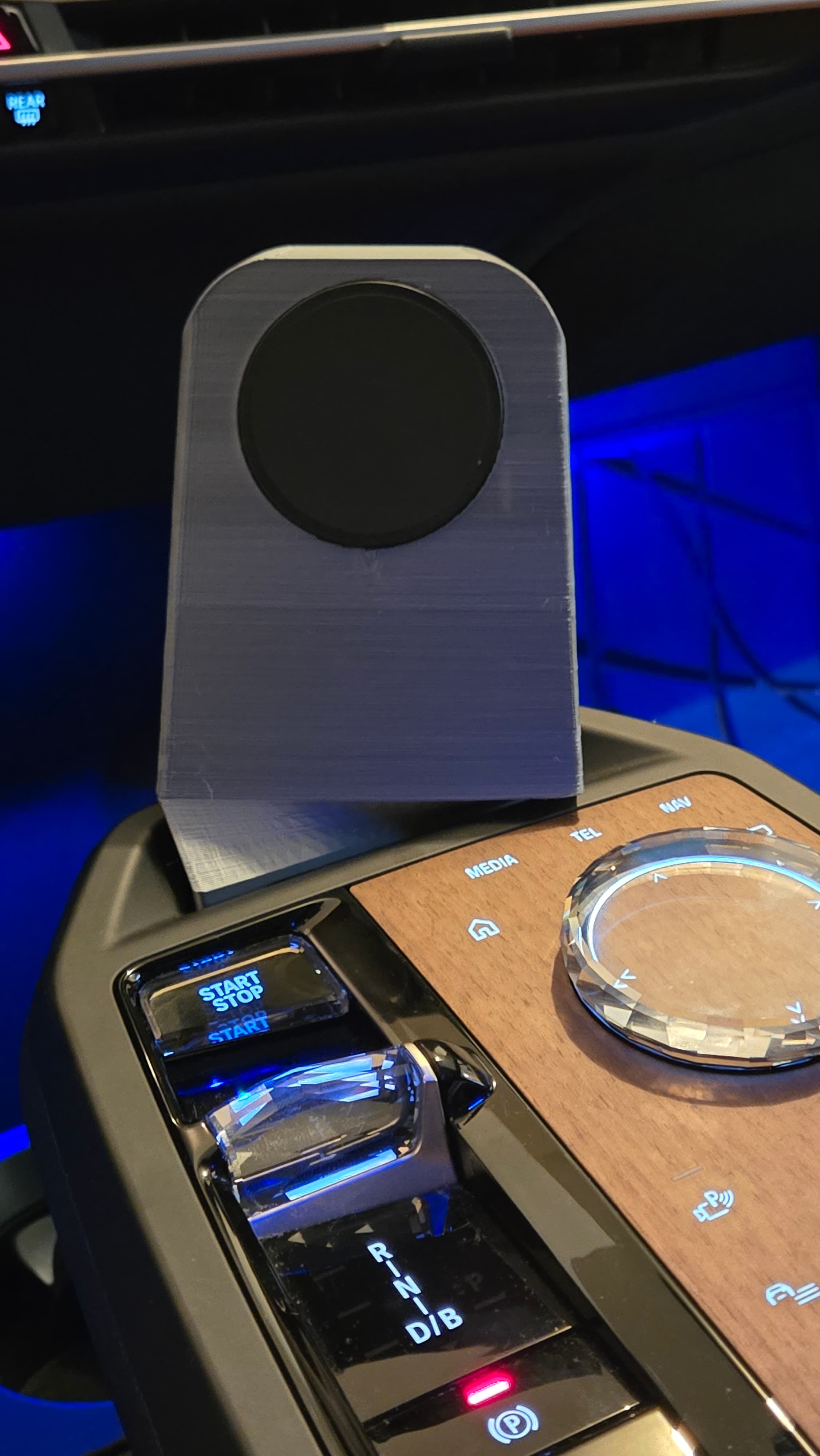

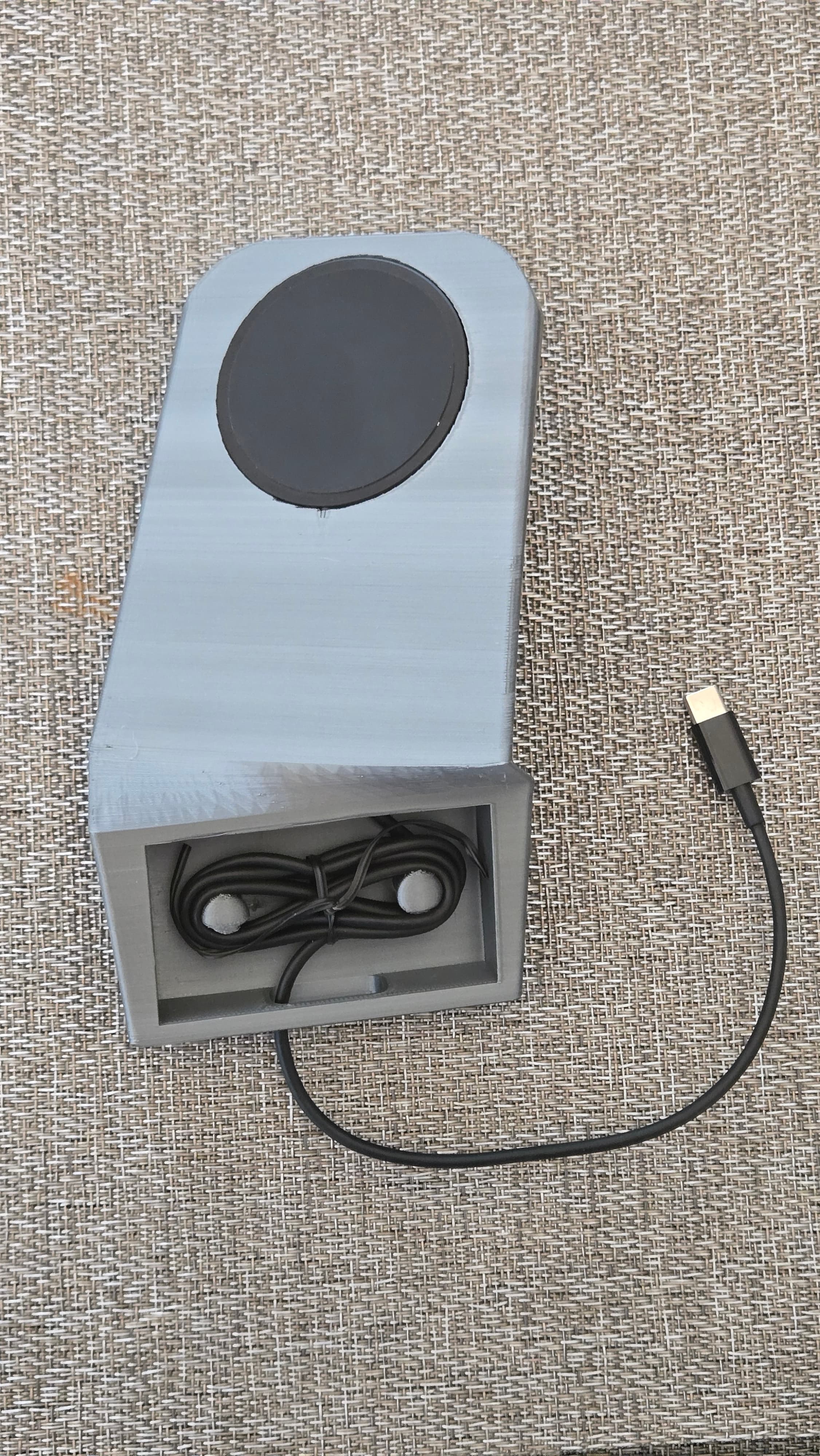

MagSafe phone mount with a lower cable-management cavity and retaining pegs, designed to fit the factory center-console phone tray. The creator printed it in PETG and documents both the installed fit and the loose physical part with its cable routed in the cavity. Verify the pictured console, charging puck and cable dimensions before printing; use PETG or another heat-resistant material and confirm the cable and phone cannot foul the vehicle controls.
