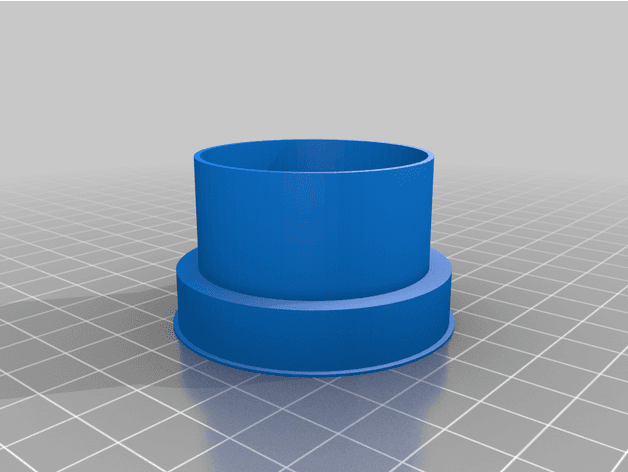

Windshield-Washer Filter / Strainer Holder

ABS · PETG1 FILECC-BY-NCWipers
PART RECORDREF 1199
PART
Windshield-Washer Filter / Strainer Holder
OEM
FITS
3 Series E46
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1199QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
6 PLATES
Plate 1 of 6
PLATE 01 / 06No caption recorded
Build sheet
MAN-1199
  • [01]E46_Filter.stl.STL
  • [02]Bounding box52.001 × 52.001 × 30.500 mm
  • [03]Volume10,450.857 mm³
Field notes
BY LEON STOETZER (HAPPYTEAFRIEND)

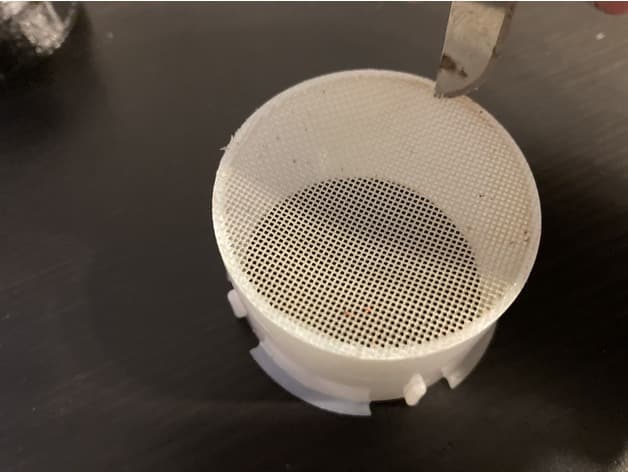

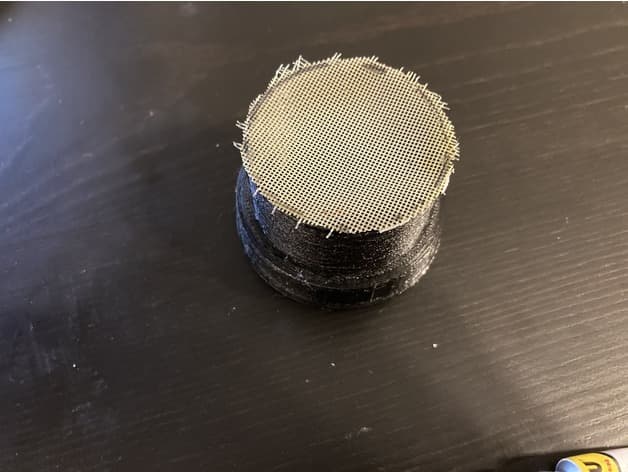

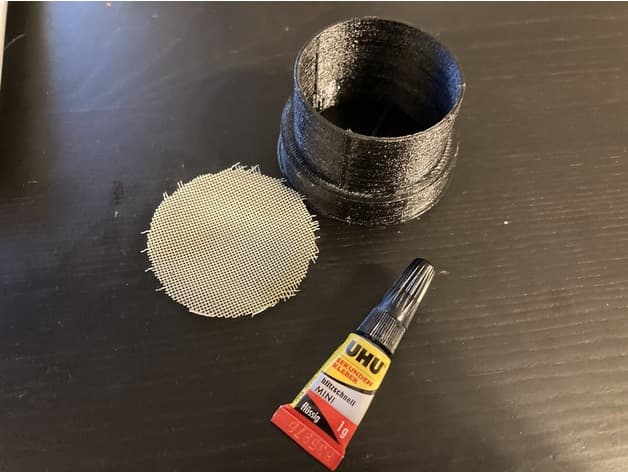

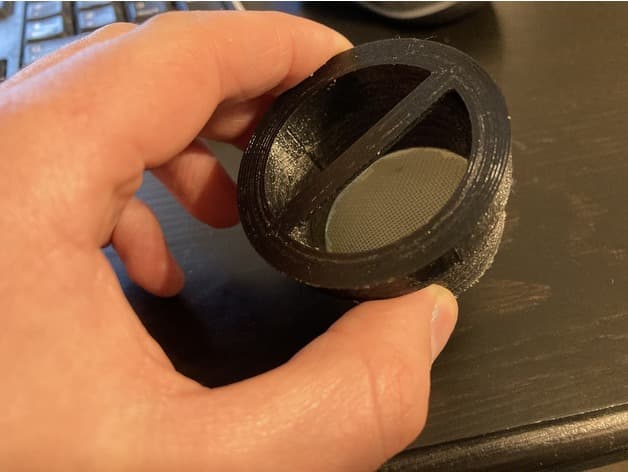

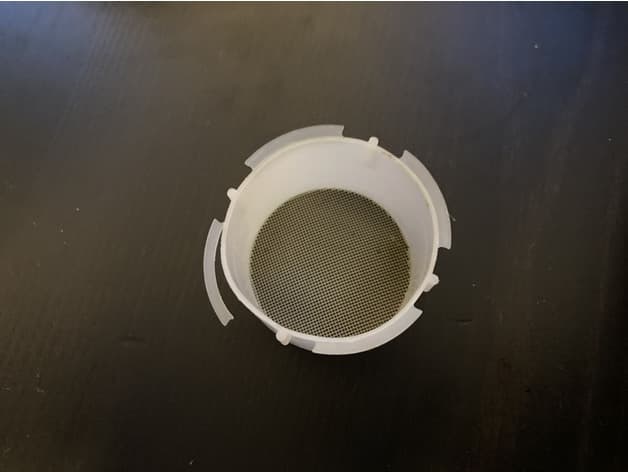

Many of these filters for the windshield washer reservoir get's broken and fall down into the water. The design is using the filter of the old holder and fits nice into your windshield water reservoir. Cut of the filter from the old holder. Glue it on the bottom. Cut off everything protruding. Done! The bar helps you to get the filter out for cleaning. Use heat-, UV- and fluid-resistant material and verify full wiper or washer clearance.
